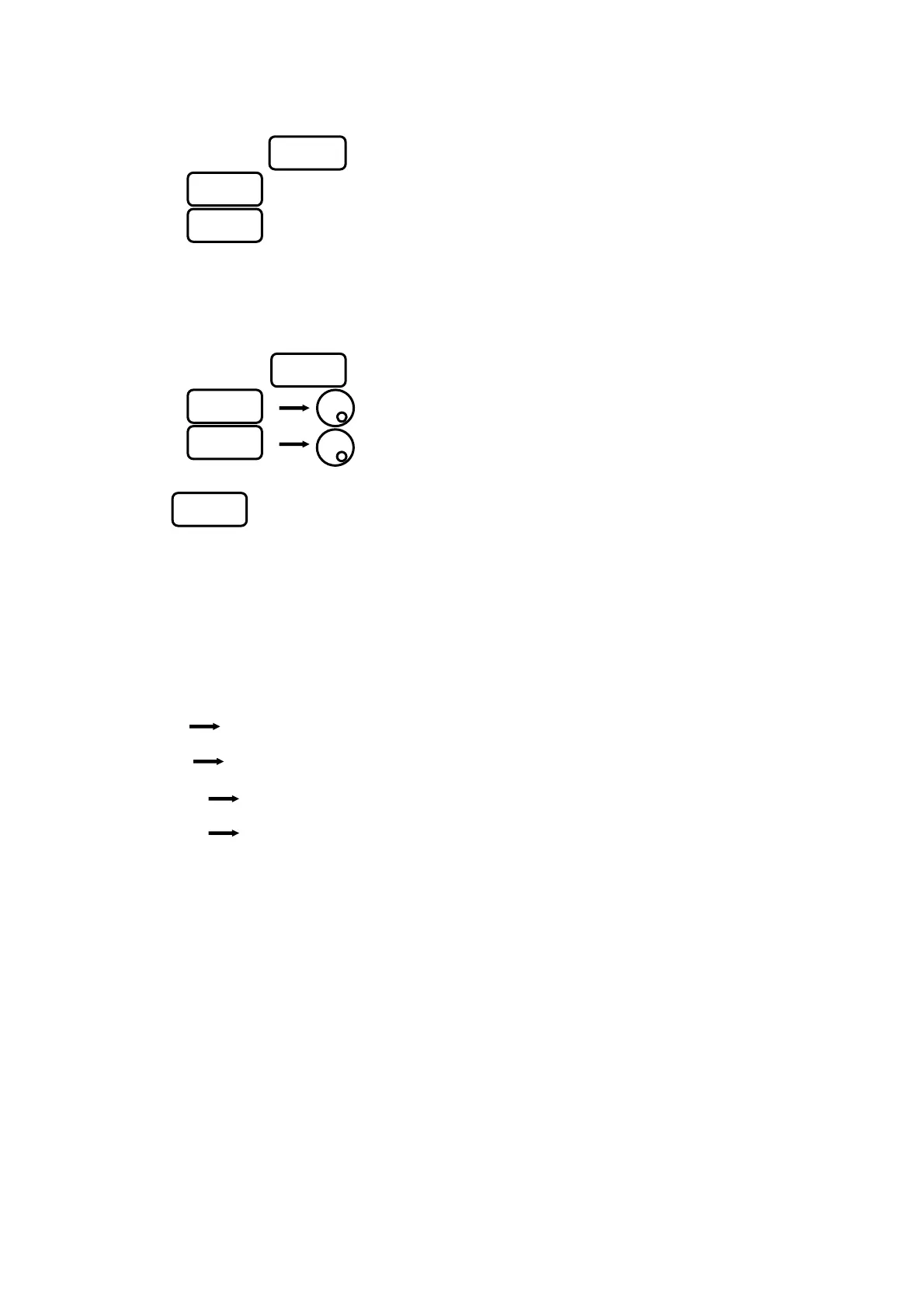

17.2 Setting the peak search <PEAK SEARCH>

· NORM mode (Use to select NORM.)

Use to move the marker to the maximum peak position.

Use to move the marker successively from higher to lower peak positions other than the

maximum peak. (The marker moves to 10 peaks.)

* When you move the marker to the 10th peak or moving the marker, the NEXT peak search

function stops and the function display disappears.

· ZONE mode (Use to select ZONE.)

Use to move the center position.

Use to change the width.

17.3 Changing the unit of marker point

Press to change the unit of marker point.

When unit of reference level is dBm, the unit is changed from [dBm] to [W].

When unit of reference level is dBµV, the unit is changed from [dBµV, dBmV, dBV] to [V].

When unit of reference level is dBµV/m, the unit is changed from [dBµV/m] to [V/m].

When unit of reference level is dBµA/m, the unit is changed from [dBµA/m] to [A/m].

Moreover, according to each unit, it is displayed as follows.

[W] [W, mW, µW, nW, pW, fW]

[V] [V, mV, µV, nV]

[V/m] [V/m, mV/m, µV/m, nV/m]

[A/m] [A/m, mA/m, µA/m, nA/m]
