21.3 Switching ON and OFF the T.G. function
to switch over to the function screen shown below :

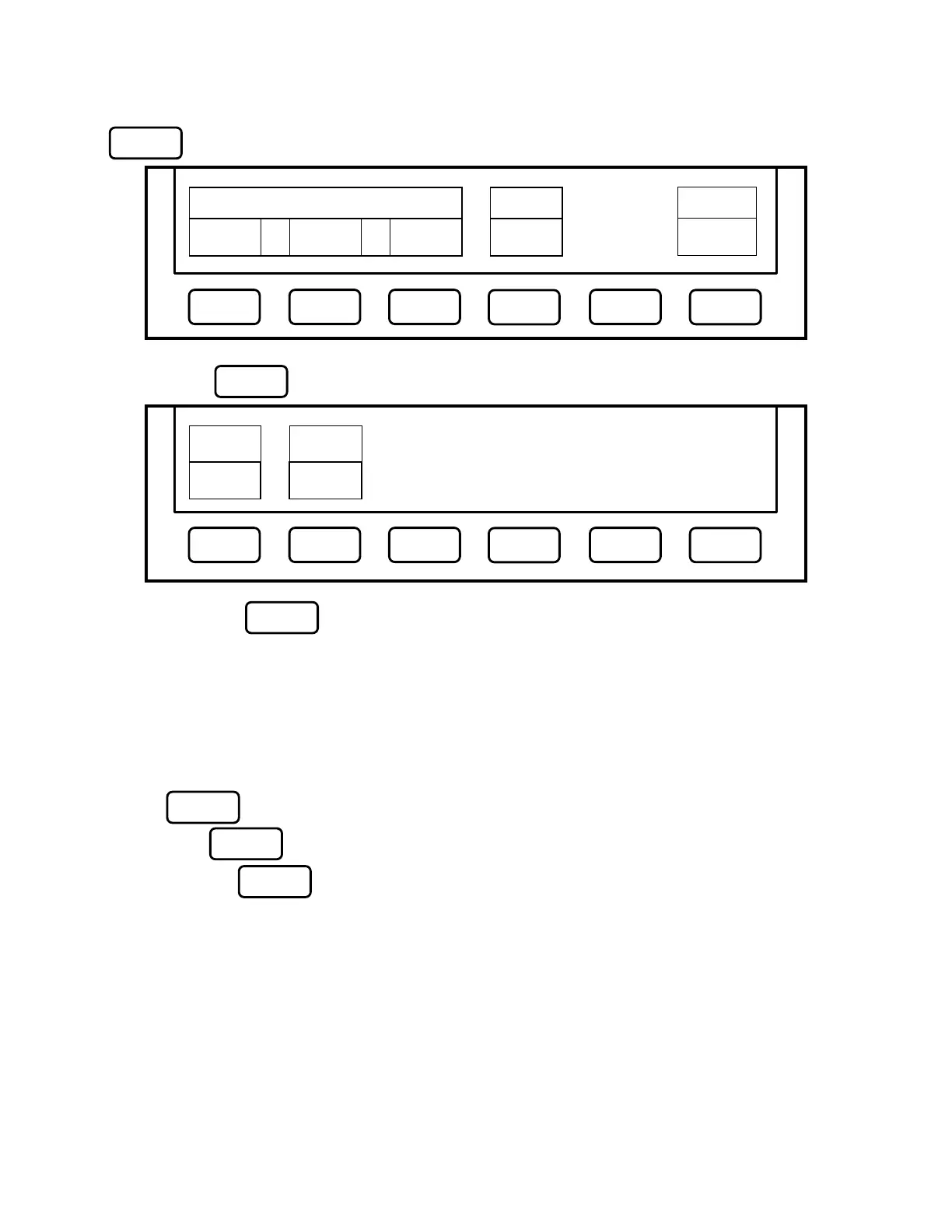

１．
Press to set the T.G.. Mode screen.
２．
Each time is pressed, the T.G.. output is alternately switched to ON or OFF.
If the T.G. output is switched to ON, it will be displayed on a screen as “TG： ON”.
If the T.G. output is switched to OFF, it will be displayed on a screen as “TG： OFF”.
21.4 Normalizing of waveform
NORM ON
：
To become smooth at a dotted line position on the screen, the waveform of the input signal is normalized.
１． t to switch over to the function screen shown similar to the preceding clause.
２．
Press to set the T.G.. Mode screen.
３． Each time
is pressed, the normalizing of waveform is alternately switched to ON or OFF.
If the normalizing of waveform is switched to ON, it will be displayed on a screen as “NORM： ON”.
※ If the following setting changes are done, the normalizing of waveform is automatically turned off.
・The span is expanded. ・The central frequency is changed over the range of the screen.
（
When SPAN is changed from FULL SPAN according to the setting of a center frequency, the setting is released.
）
・
The magnetic field strength measurement(optional) or the frequency counter(factory optional) is selected.
・The AUTO tuning is executed. ・The presetting is executed. ・The power supply is turned off.
※ It cannot be normalized that the shape of waves is not displayed at a proper position on the screen
when the setting of the scale is 2dB.
ＳＷＥＥＰ ＤＥＴ
Ｔ．Ｇ．
ＭＡＮＵ ＡＵＴＯ ＡＬＬ ＰｏｓＰＫ
ＭＯＤＥ
Ｔ．Ｇ．
ＮＯＲＭ
ＯＮ ＯＮ
ＳＷＥＥＰ
ＳＷＥＥＰ
Ｆ
Ｆ１ Ｆ２ Ｆ３
Ｆ４
Ｆ５
Ｆ６
Ｆ１ Ｆ２ Ｆ３
Ｆ４
Ｆ５
Ｆ６
Ｆ１
Ｆ
Ｆ
