19.5 Magnetic field strength measurement <M/F PROBE> (optional)
Measures the magnetic field strength using the optional magnetic field probe PR 26M.
“Specifications of magnetic field probe PR 26M”
(Refer to the operating manual for PR 26M for details.)
· Registration of the probe ID
Magnetic field strength measurement cannot be used without entering the “Probe ID” attached to the optional
magnetic field probe, PR 26M. Once you have entered it, you don't need to enter it again.
When you press and in that order, “Input PROBE ID” will appear in the measured
value display area on the screen. Then, input the 14-digit “Probe ID” with the numeric keypads.
Items Specifications
Frequency range 10MHz to 3GHz
Space resolution (-6dB)
approx.0.25 mm
(Depending on objects)
Dimensions
Outside: 12φ×135mm
probe tip: 2mm(W)×1mm(T)
Connector SMA (P)
Reference level setting
range (maximum)
160 to 203dBµA/m
Reference level setting
range
(except for the
minimum value in
screen shift)
110 to 153dBµA/m
Measurement error
approx.±1dB
(Probe simple substance)

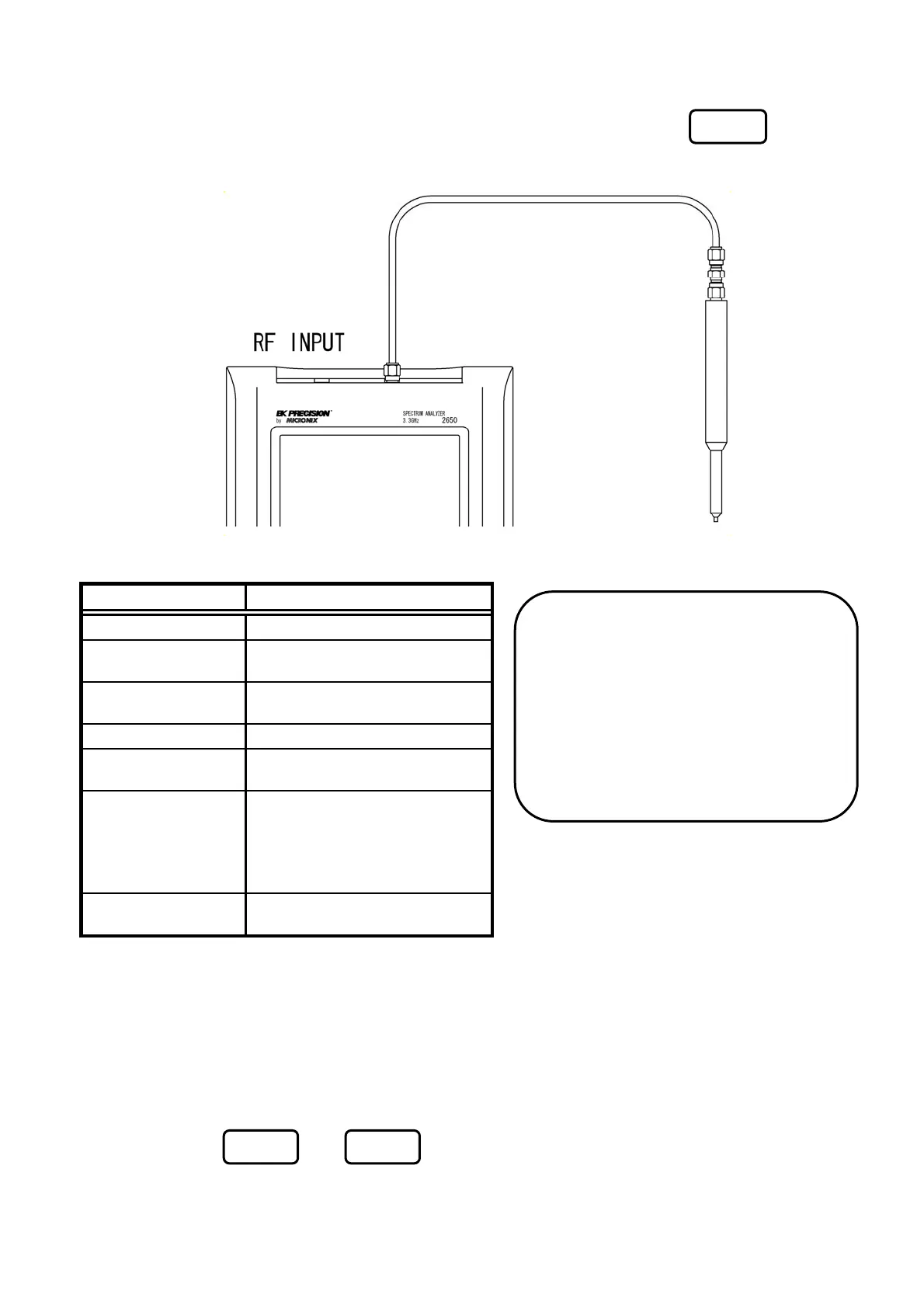

The tip of the optional magnetic field probe
PR 26M is made of glass-ceramic board.
Take care when handling the probe even
though the strength of the glass-ceramic
board is sufficiently ensured under normal
operation.
MEAS F5
F5
Magnetic field probe
PR 26M
To Next Page
