BK Precision 2650 User Manual

－53－
21. Tracking Generator Mode(2652 only)
21.1 Specification for T.G. function
Item Limit
Frequency range 5MHz to 3.3GHz
Output Level
-10dBm±1dB @1GHz(Fixed value)
Output flatness
±1.5dB
Output impedance
50Ω
Output VSWR Less than 2.0
Output connector SMA (J)

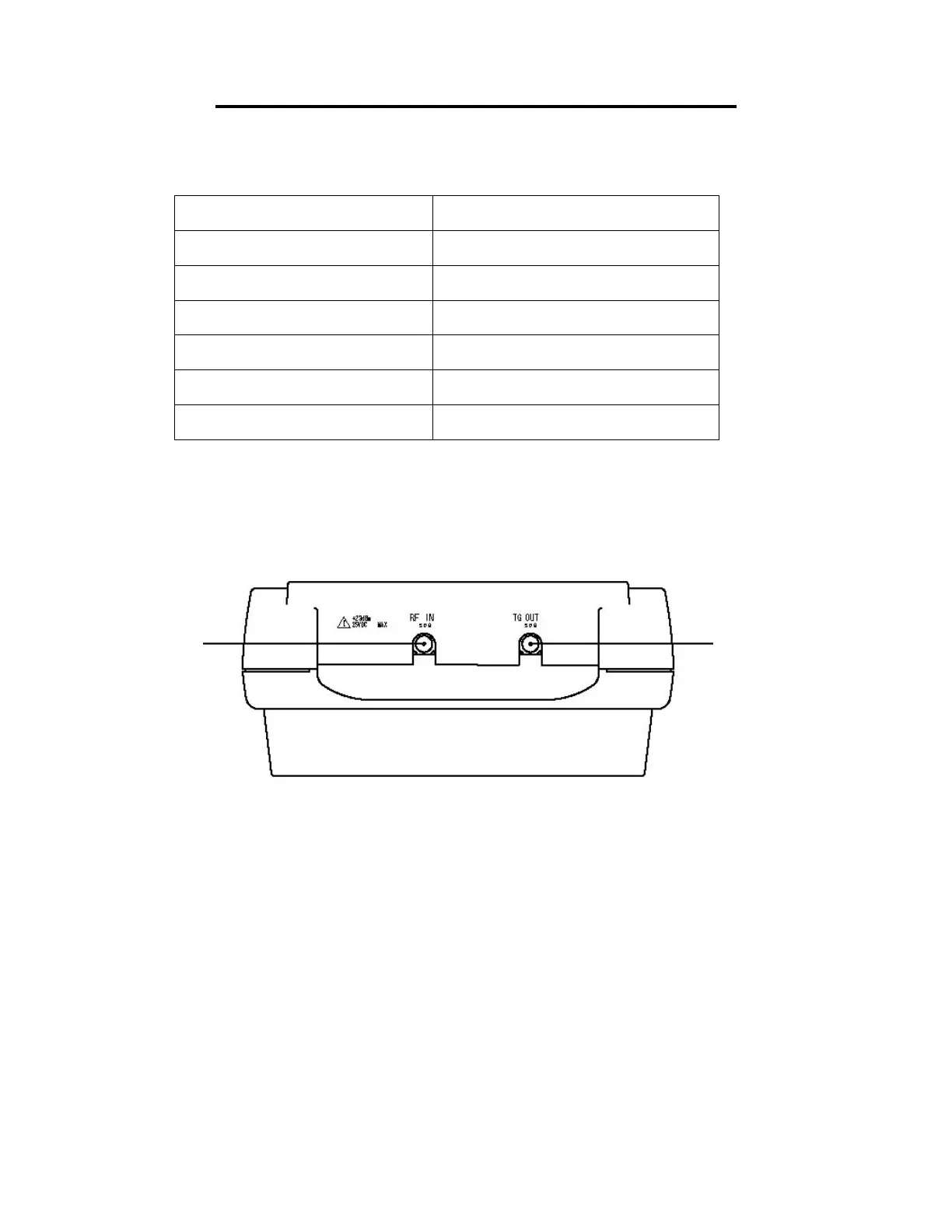

21.2 Description of I/O connector
1) Input connector
SMA (J) connector.
Input for an external signal.
Make sure that the total power of all signals at the analyzer input dose not exceeds +23dBm.
2) Output connector
SMA (J) connector.
It is an output terminal of Tracking Generator.
