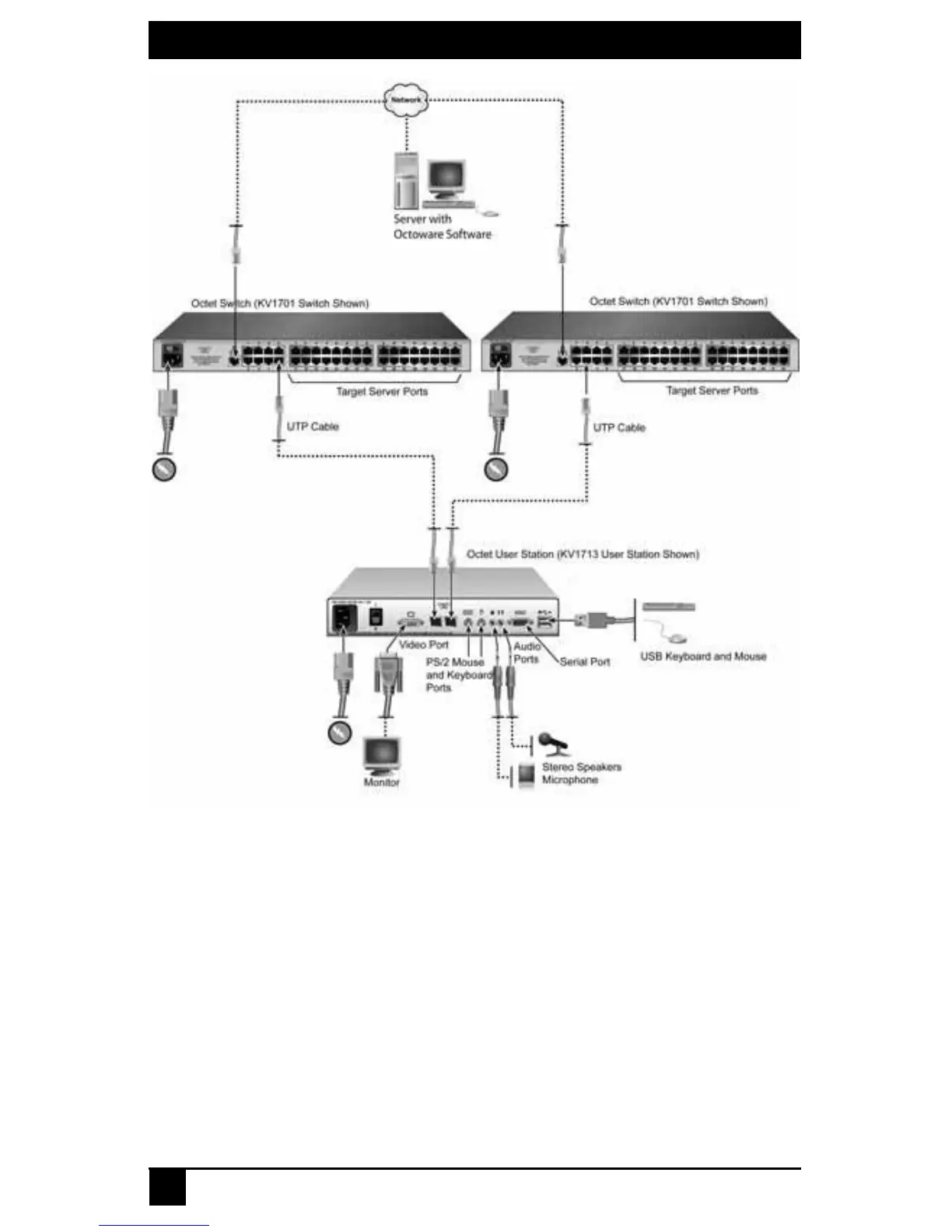

Figure 3-8. Connecting a User Station for Switch Redundancy
3.9 Connecting an SAMDM Module for Dual Port Output
The SAMDM module supports connectivity to one or two Octet switches, enabling access
from twice the number of user stations without the need to cascade switches.
