SERVSWITCH™ OCTET INSTALLER/USER GUIDE
28
SAMDM modules. By utilizing this connection method, you may benefit from switch
redundancy in the event of a single switch failover.

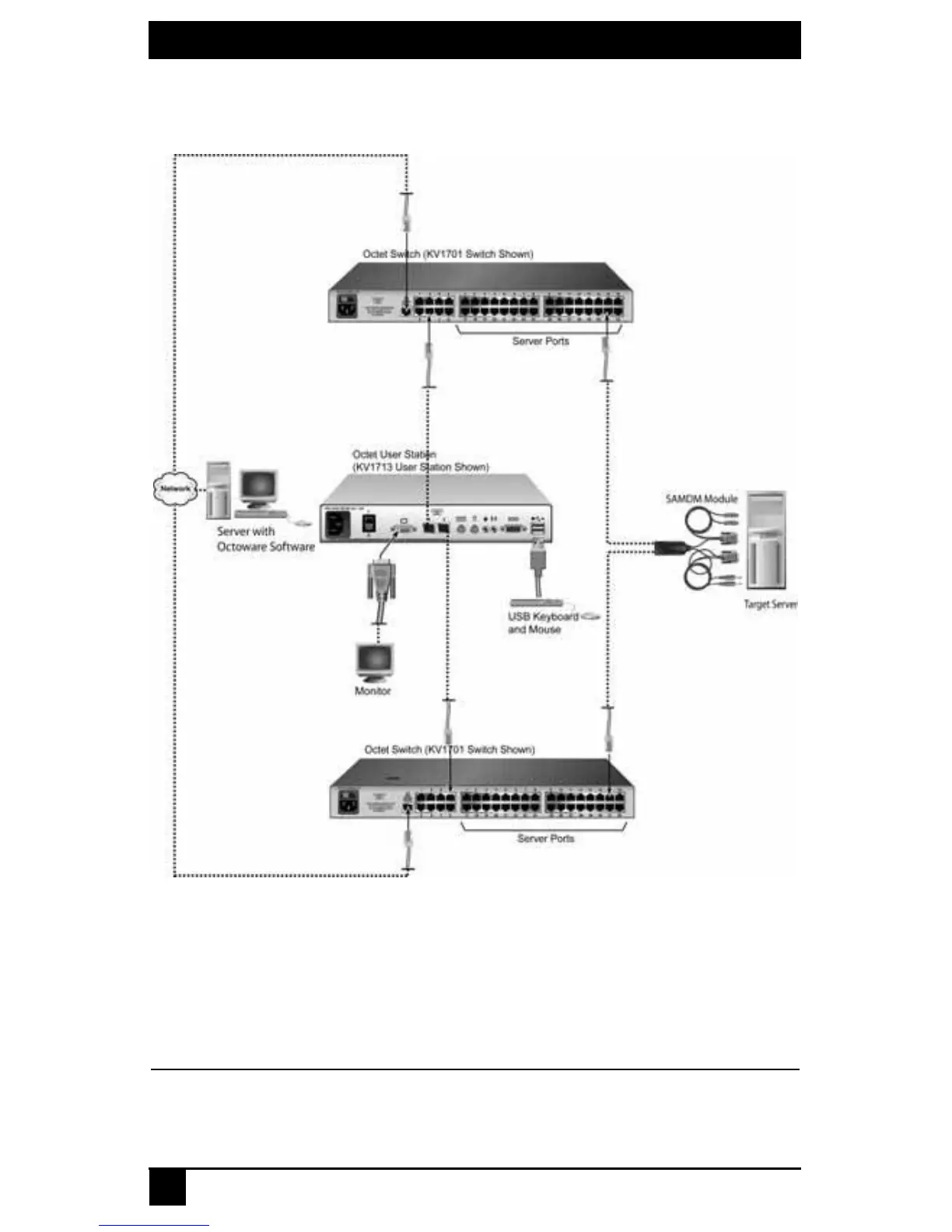

Figure 3-3. Octet Switching System Configuration with Redundancy
3.3 Rack Mounting an Octet Switch
A rack mounting kit is supplied with each Octet switch. You may either place the Octet
switch on the rack shelf or mount the switch directly into an Electronic Industries Alliance
(EIA) standard rack.
CAUTION: Rack Loading -
Overloading or uneven loading of racks may result in shelf or rack failure, causing damage to equipment
and possible personal injury. Stabilize racks in a permanent location before loading begins. Mount
