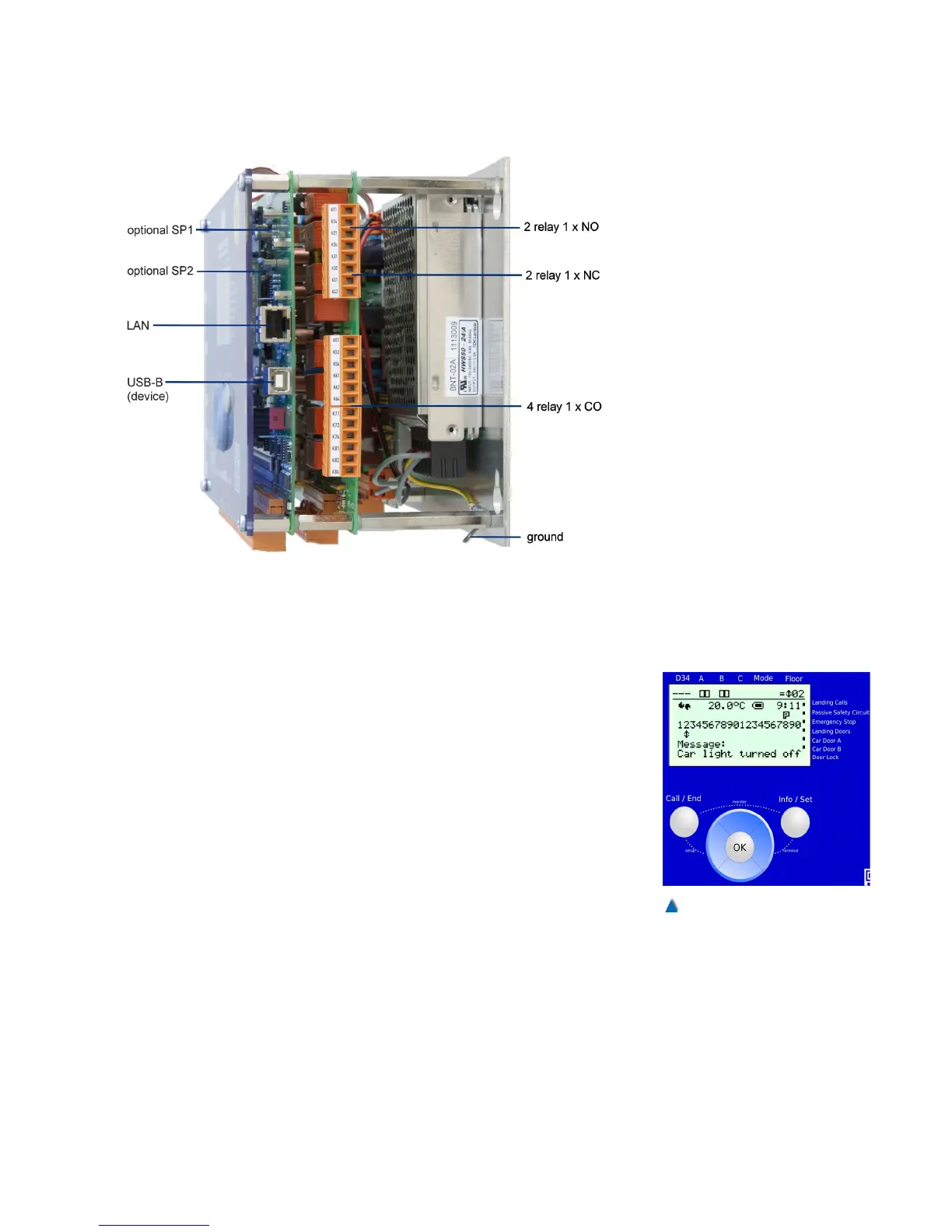

5.7.4 Right Side View
5.7.5 Operator Panel and LCD of the bp308
The operational status of the lift can be determined and parameters
set in the control unit and the attached CANopen devices with the
help of the graphic LC display and operator panel .
5.7.5.1 Standard View
Once the system has been switched on and is operating normally,
the standard view appears on the display if no special menu has
been called up. This view provides a quick overview of the current lift
status as well as individually configurable information .
The LCD displays this information as a standard:
• Lift status bar
• Safety circuit status bar
• B+P« logo (or customer-specific logo )
• Board and cabinet temperature (optional),
• Status of internal buffer battery
• Current system time
• Depending on configuration:
• Current malfunctions and messages
• Last malfunction
