6.6.1 Fixation Kits for Absolute Encoder
There are different fixation kits available for the different ways of
mounting the absolute encoder in the shaft or on the car.
Typ S 100
Absolute encoder type AWG-05 with fixation kit in the shaft, compris-
ing big toothed reel 10 mm wide, jagged flanges, suitable for travel
heights of up to max. 60 m and speeds of up to max. 4.0 m/s
Product no.: 287-051-003
Typ K 105
Absolute encoder type AWG-05 with fixation kit on car, comprising
big toothed reel 10 mm wide, jagged flanges, suitable for travel
heights of up to max. 180 m and speeds of up to max. 4.0 m/s
Product no.: 287-051-004
Toothed Belt
Z 10s, 10 mm, jagged flanges, black, for S 100, K 105
Product no.: 3020-130-100
6.6.2 Assembly in the Shaft
The absolute encoder is mounted to the guide rail in the shaft. It
is driven by a toothed belt with a non-slip connection to the car via
a deflection pulley.
48 Installation Manual System »bp308« – Installation and Commissioning

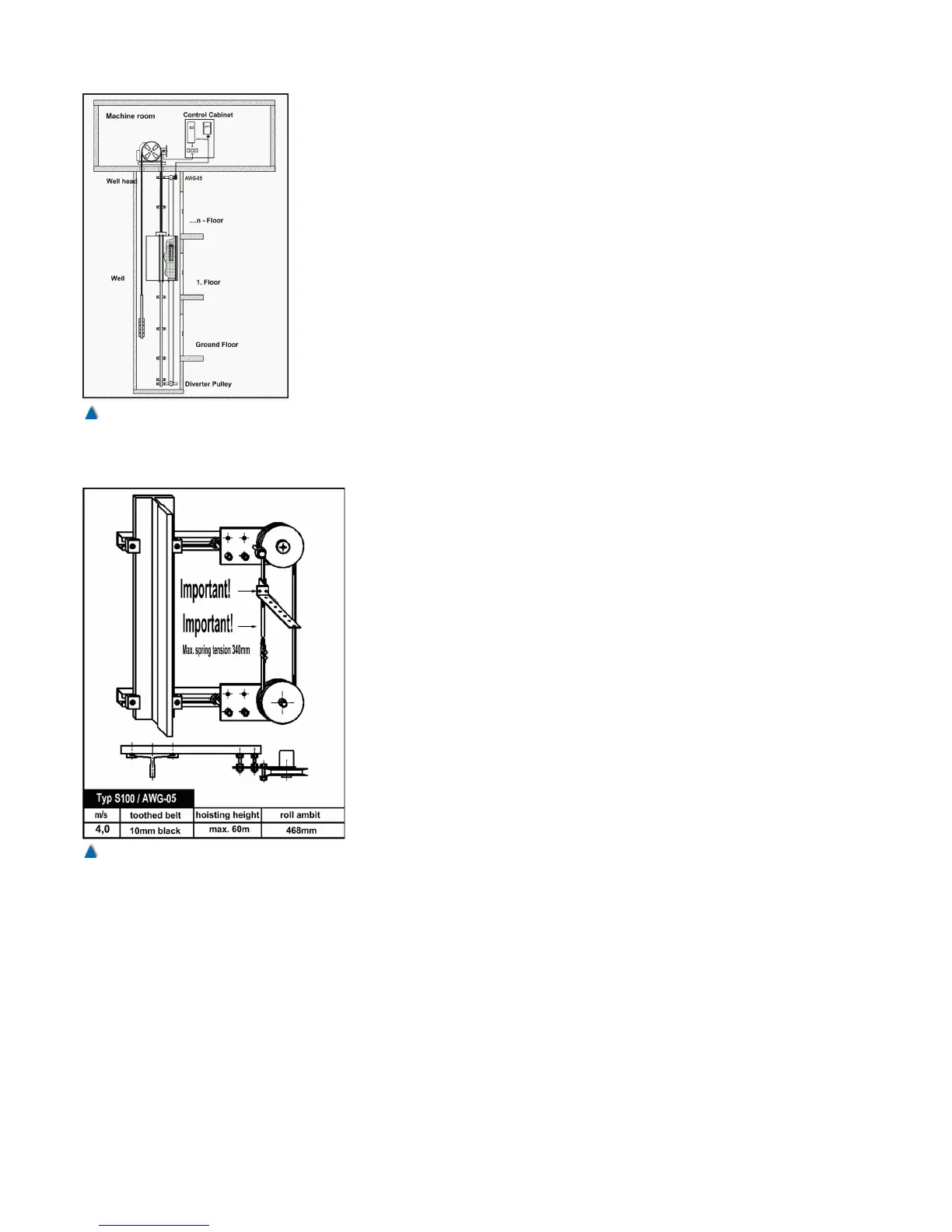

Fig. 27
The absolute encoder is driven
by a non-slip toothed belt.
Fig. 28
Fixation kits for mounting in the shaft
(Type S100).
