8.11.6 Impulse diagrams of Absolute Encoder,
without Short Distance Landing
103

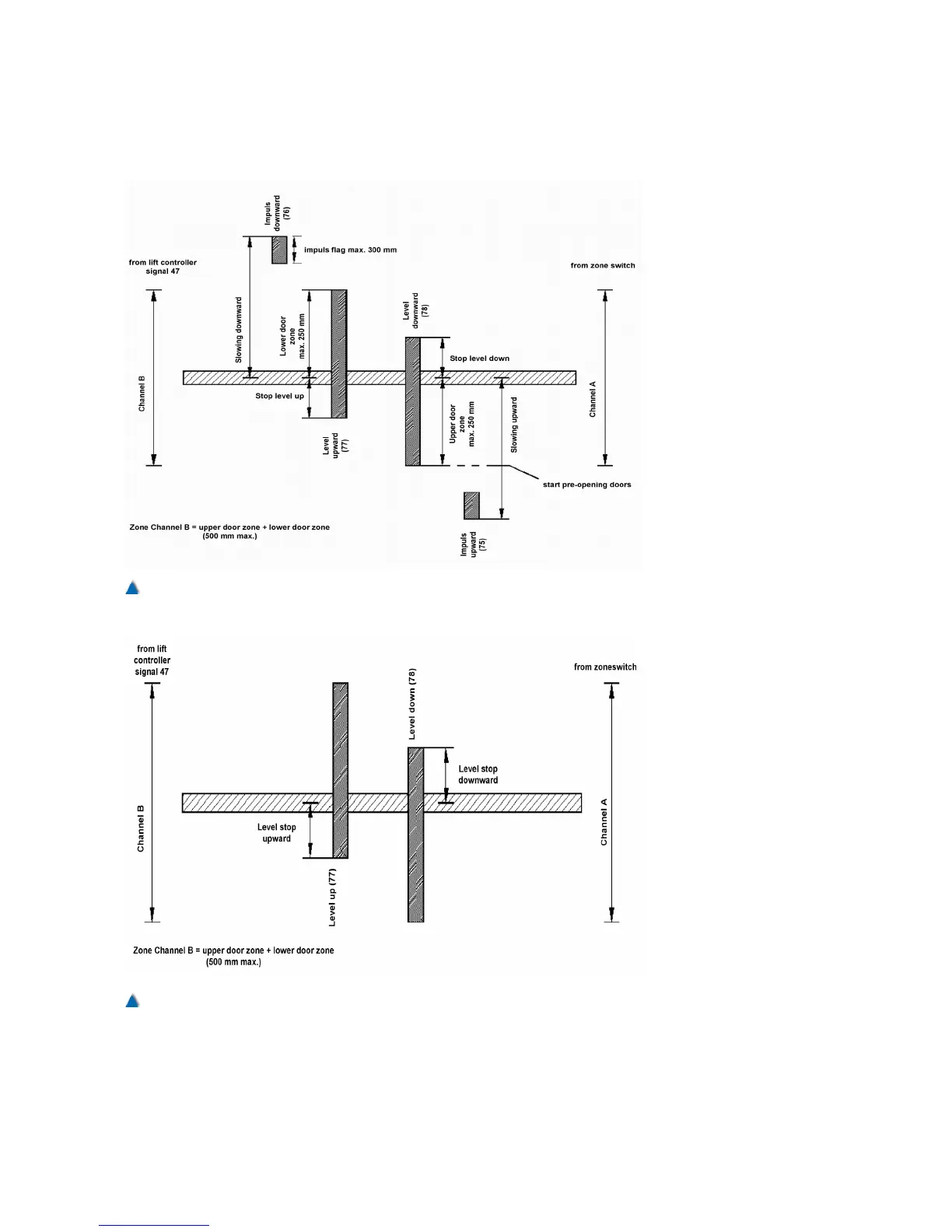

Fig. 67
Pulse diagram related to deceleration distances in the flush-level area
Fig. 68
Pulse diagram related to the zones in the flush-level area
