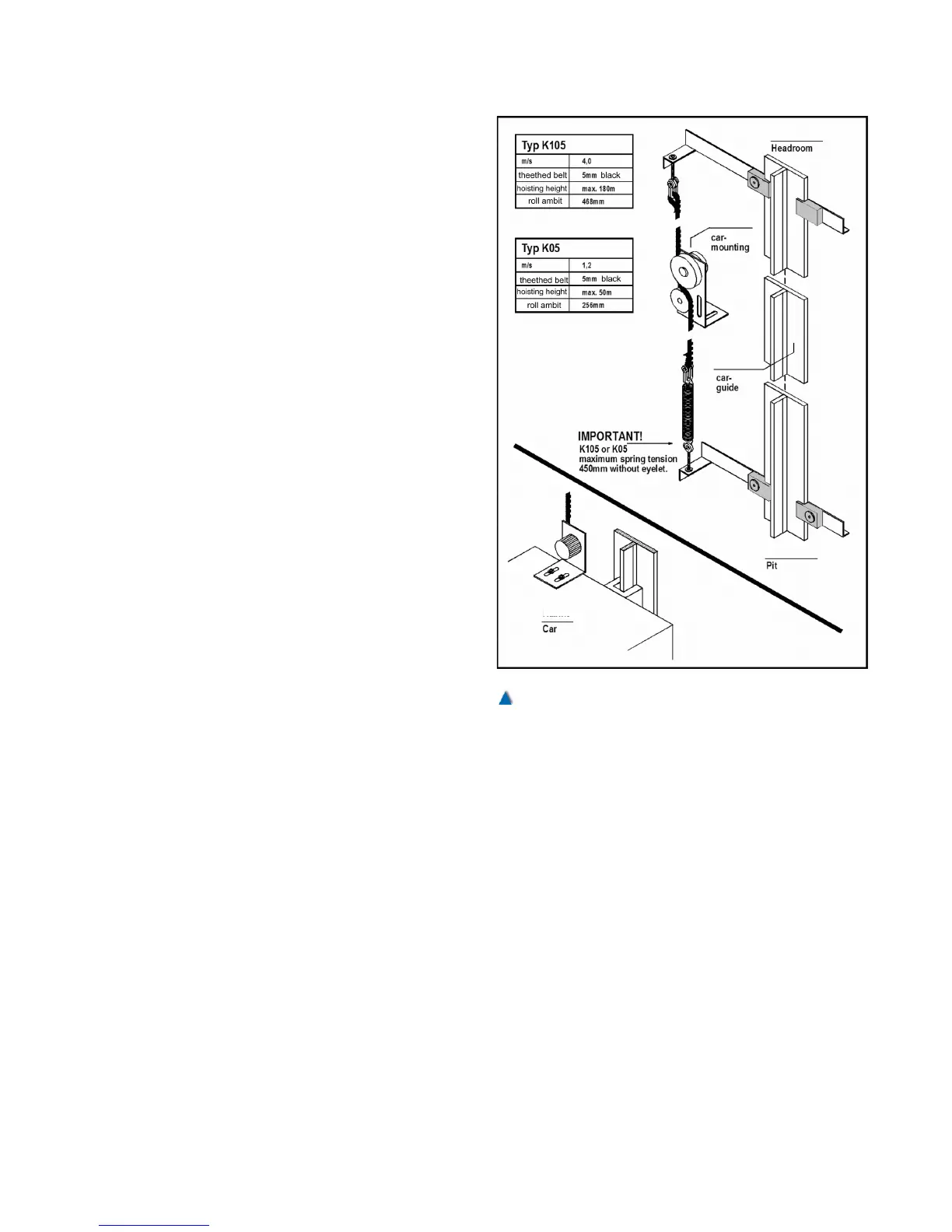

6.6.3 Assembly on the Car
A variant of the above-mentioned mounting is the
mounting of the absolute encoder on the car. A
toothed belt tightened from the shaft head down
to the shaft pit drives the absolute encoder. On
one hand you have got the advantage of a shorter
toothed belt, on the other hand the disadvantage
that the toothed belt may generate a rolling sound
when the toothed reel runs along at high speed.
This can however be reduced by a special layer
on the belt pulley.
