Firmware | 18
Bosch Motorsport Manual_C_80 125/144
18.2.1 Performing the firmware update
Firmware update is only possible if the C 80 is connected to RaceCon. The configuration
of Input channels, CAN I/O, display, recording + telemetry will not be changed.

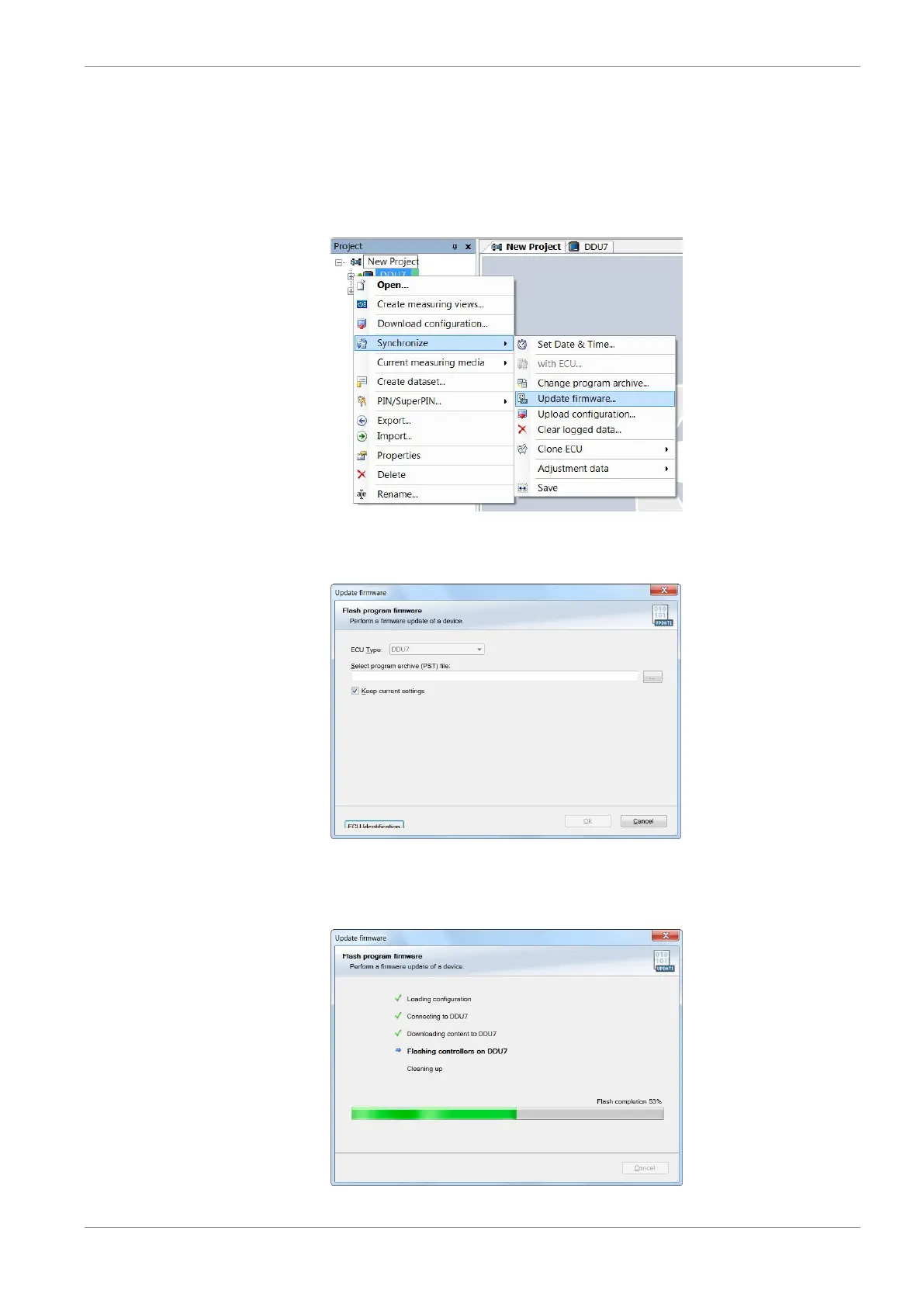

1. In the C 80 Project Tree, right-click on ‘C 80’ and choose ‘Synchronize’ then ‘Update
firmware’. A pop-up menu opens.
2. Select the destination of the firmware archive (PST). You can find the latest firmware
for the device at the Bosch Motorsport homepage.
3. Click ‘OK’ when done. The firmware update starts. The C 80 displays the message ‘Up-
dating firmware’. Do not switch off the car’s ignition or interrupt the power supply of
the C 80!
