12 | Analog and Frequency Inputs
60/144 Manual_C_80 Bosch Motorsport

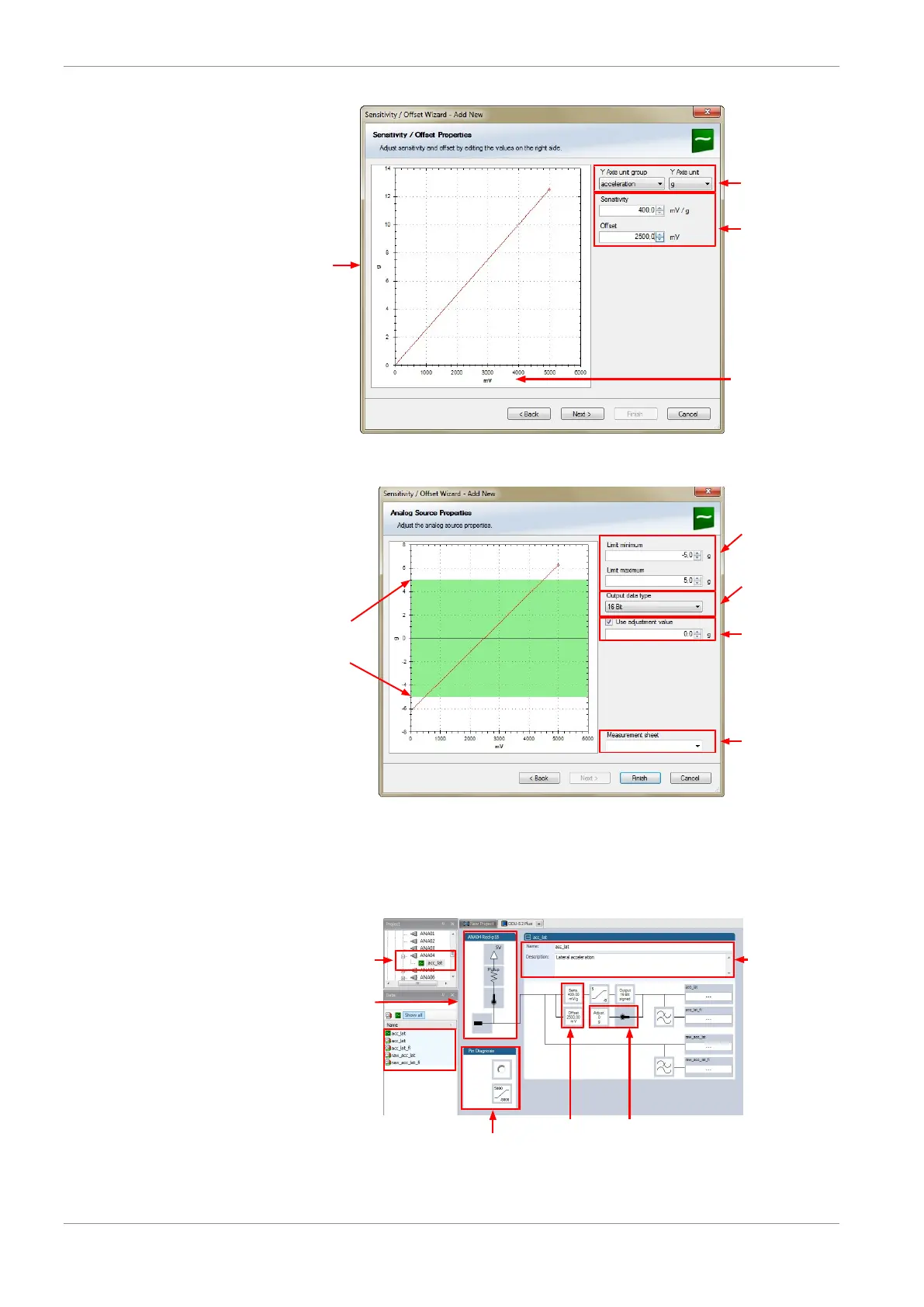

Physical
(channel)
value
Choose unit
group and unit of
physical value
Enter values from
sensor datasheet
Electrical (pin) value
6. Click ‘Next’ when done.
The third part of the “Sensitivity/Offset Wizard” opens.
Physical limits
of channel
Enter physical
limits of the sensor
Choose data type
of the measurement
variable
Check box to enable
online calibration of
offset and enter
desired physical
offset value
Enter name to
automatically create
a new measurement
sheet
7. Click ‘Finish’ when done.
8. Enter a channel name and a description.
9. Click ‘OK’ when done.
The channel is inserted into the C 80 Project Tree.
Input pin Pull-up
resistor is
activated
Sensivity and
Offset value
for sensor
Adjustment
is enabled
Channel is linked
to ANA04
Pin Diagnosis
Name and
Description
editable
