Bosch C 80 User Manual

Recording | 14
Bosch Motorsport Manual_C_80 91/144

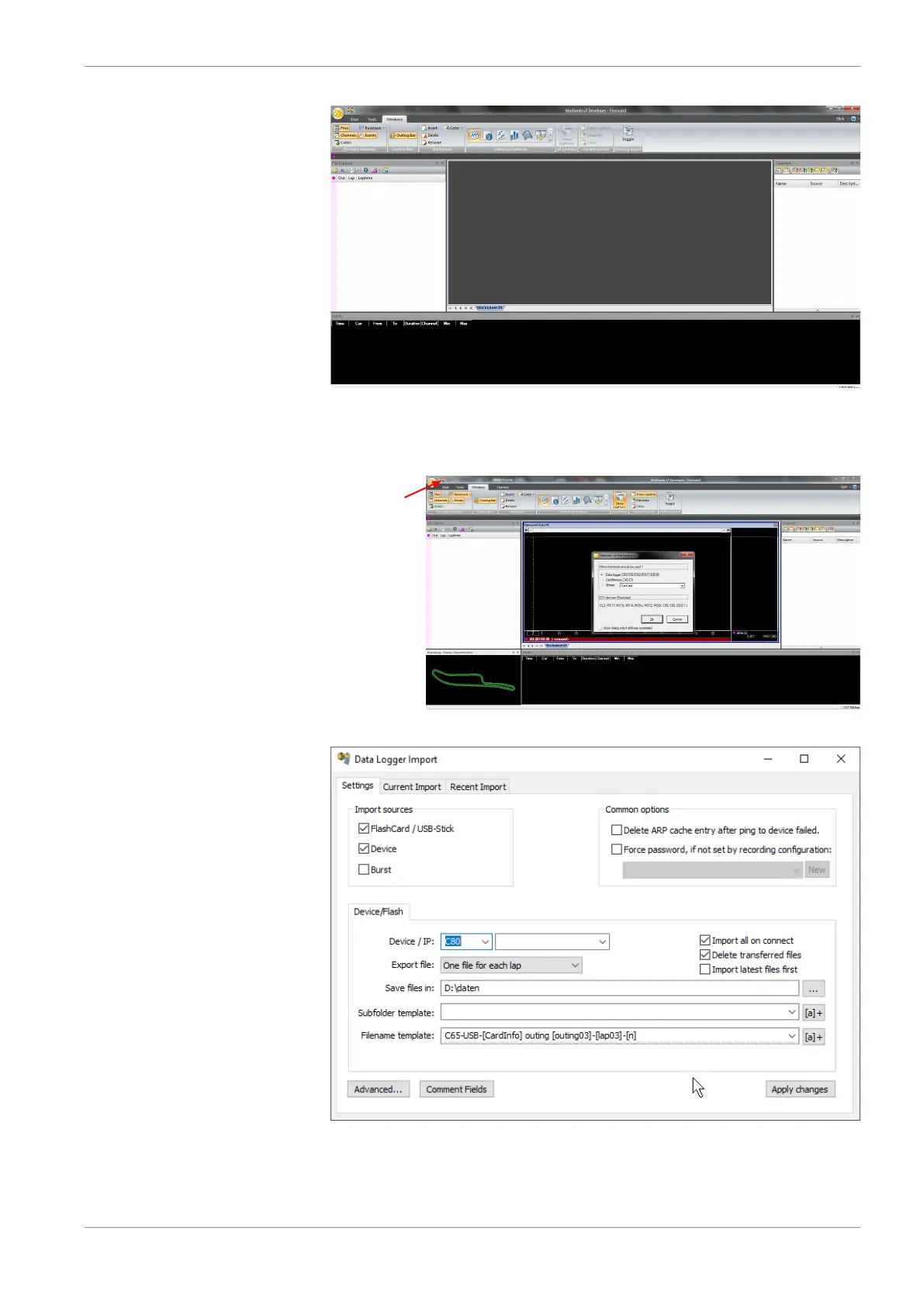

9. Click on the ‘Import/Export’ icon.
10. Select ‘Data logger CXX/DDUX/MSX and click ‘OK’ when done. The ‘Read measure-
ment data’ dialog opens.
Click
'read data from
logging device'
11. Click on ‘Settings’ tab and select the option ‘Flash Card/USB Stick’.
12. Activate ‘Apply changes’.
Insert the USB device into the PC. Data transmission from device starts automatically.
Measurement files are stored automatically in the base folder.

Bosch C 80 Specifications

General

Resolution	16 bit
Interfaces	USB
Measurement Range	±10V
Accuracy	±0.1 % FS
Channels	8 universal analog inputs (±10 V, ±20 mA, Pt100, Pt1000, Thermocouples type K, S, J, T, N, R, B, E), 4 digital inputs (trigger, counter, frequency), 2 digital outputs (24 V / 500 mA)
