Modular fire panel Topologies | en 13
Bosch Sicherheitssysteme GmbH Networking guide 07.2019 | 5.9 | F.01U.247.450
– Change Forward Delay from 15 to 25
Parameters
– A maximum of 32 nodes can be used in a loop.
– The diameter of the network must not be greater than 32, see Network diameter, page
20.
– Ethernet switches must not be used outside of panel housings.
– Media converters must not be used outside of panel housings.
– A maximum of one panel only and 3 FMR-5000 can be used in a network, in the case of
the FPA-1200.
Features
– The network is EN54-compliant.
– The network uses RSTP.
Connection to BIS with OPC server
When connecting to a building management system (BIS) via an OPC server and Ethernet
100BaseTX in multiple building networks, you must clarify with the network administrator:
1. Is the network designed for multiple building connections? (e. g. there must be no
technical interference due to differences in grounding potential)
2. Is the bandwidth of the bus users sufficient for the network?
OPC
Server
Ethernet
100BaseTX

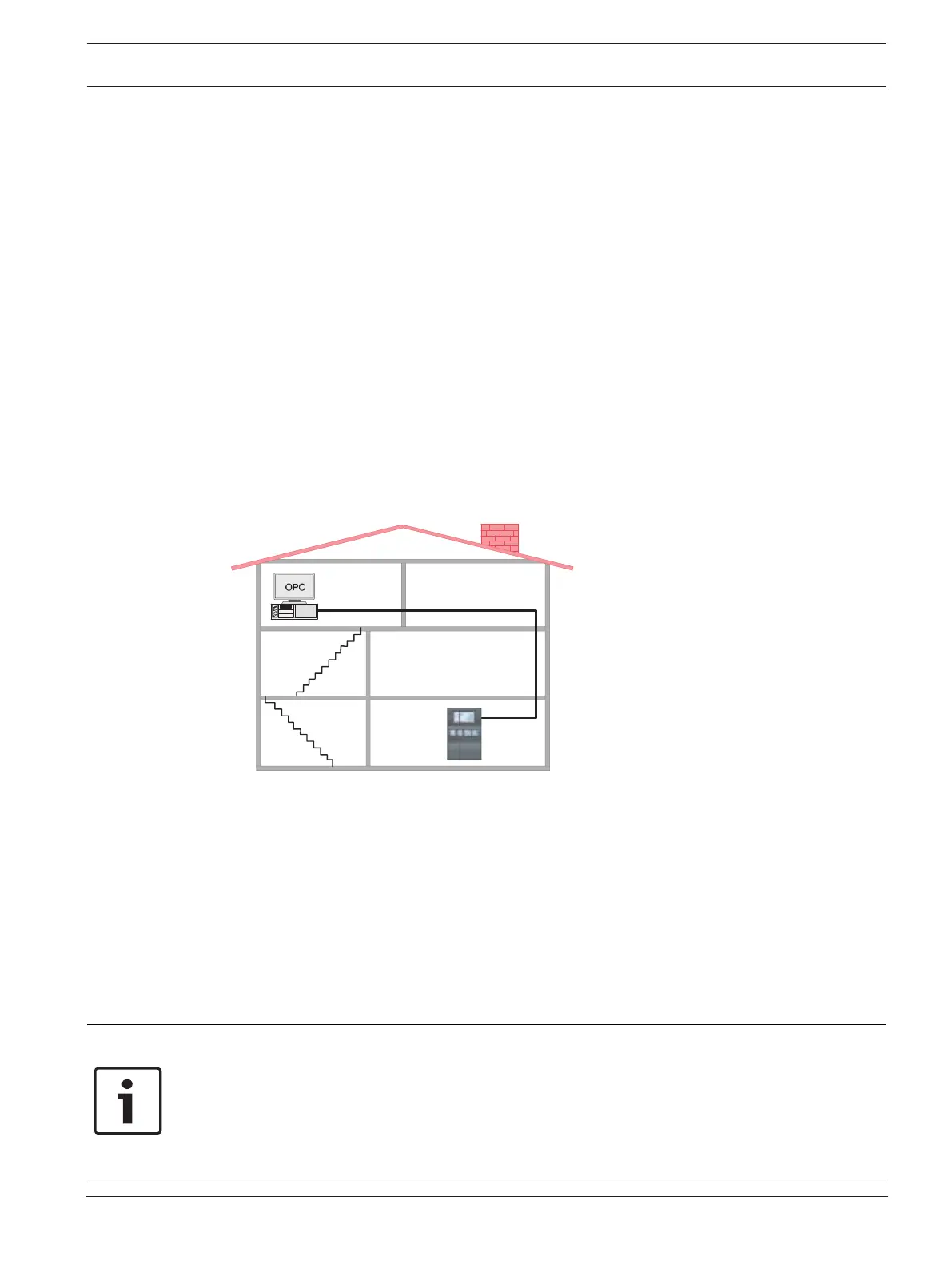

Figure4.1: Connection to BIS via OPC server
Additional information when using an OPC server
OPC servers in your network must be added to the FSP-5000-RPS programming software.
You must perform the following settings in both the FSP-5000-RPS software and on the OPC
server:
– Network nodes
– Network group
– RSN
– IP address
– Port
The OPC server uses port 25000 as standard.
Notice!
EN 54
The connection of a building management system (e.g. BIS) via an Ethernet interface using an
OPC server or an FSI server is EN54 compliant if the EN54 relevant functions are performed
by the fire panel solely. Any EN54 relevant control or administration (e.g. control of
notification appliances or administration of switch-off) by the building management system
requires an individual EN54 certification of the overall system by a certification body.
