Modular fire panel Installation | en 39
Bosch Sicherheitssysteme GmbH Networking guide 07.2019 | 5.9 | F.01U.247.450

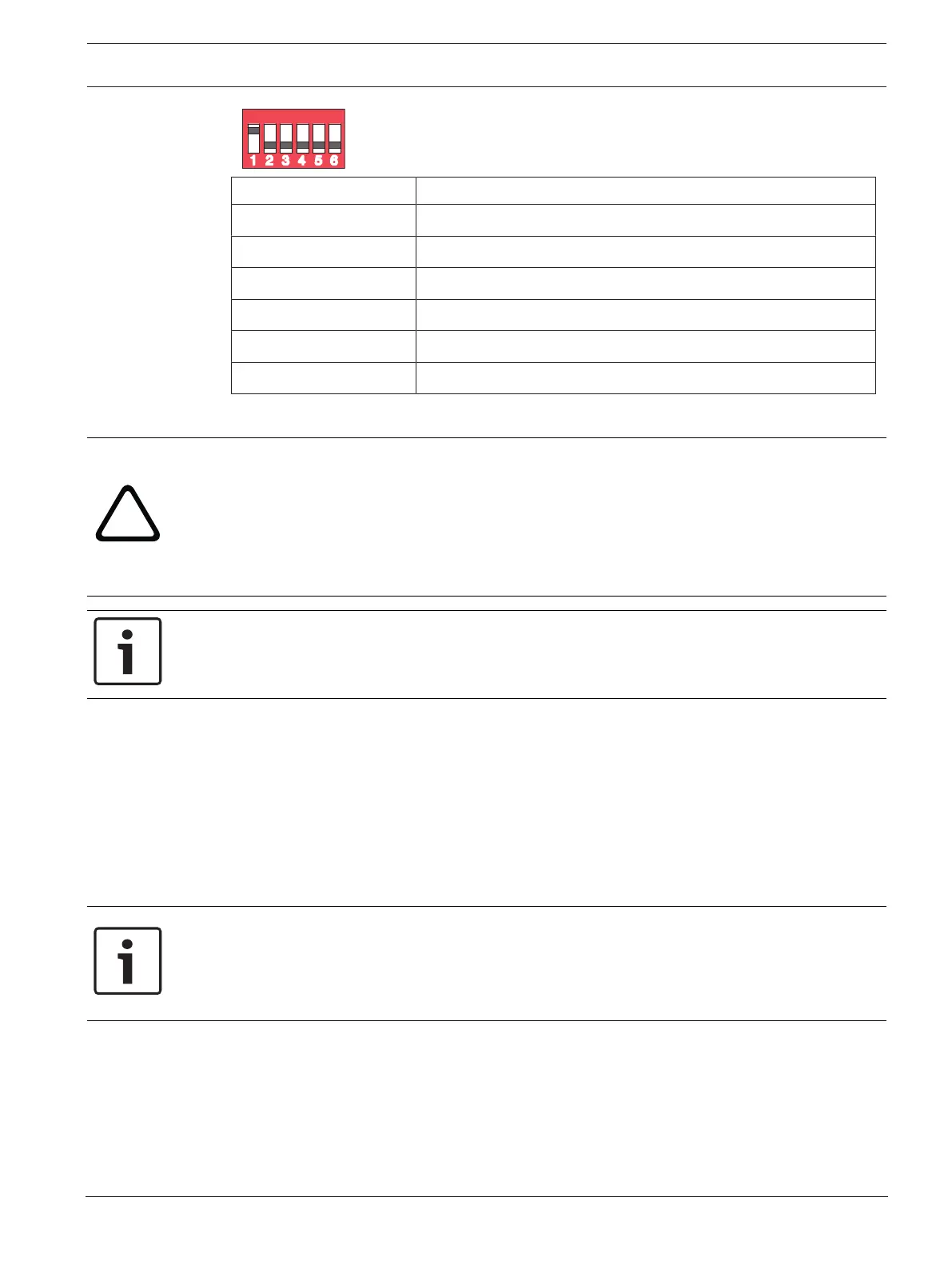

DIP switch number Setting
1 Link Fault Pass-Through activated
2 Ethernet: automatic mode
3 Ethernet: 100 MBit
4 Ethernet: fully duplex
5 Fiber optic cable: fully duplex
6 Link down: off
10.2 Installing Ethernet switch
Warning!
Laser light
Do not look directly into the beam with the naked eye or with visual instruments of any kind
(e.g. magnifying glass, microscope). Failure to observe this notice poses a danger to the eyes
at a distance of less than 100mm. The light emerges at the visual terminals or at the end of
the fiber optic cables connected to these. CLASS 2M laser diode, wavelength 650nm, output
< 2mW, in accordance with IEC 60825-1.
Notice!
Refer to: Installation guide for the Mounting kit for Ethernet switch FPM‑5000‑KES
(F.01U.260.523).
10.3 Settings on switch
In order to be able to use the switches in the network, you need to program them.
Connect your laptop to the network and use the HiDiscovery software supplied by the
manufacturer to carry out the initial programming of the switches. Using this software, search
for the switches in the network. Double-click on a switch to select it and assign an IP address
to it.
Following the initial programming of the IP address, you can use a web browser to call up the
configuration user interface for the switch.
Notice!
Refer to the manufacturer's user guide for an exact description of the installation and
configuration of the switches. Access data:
User: admin
Password: private
Use a browser to call up the configuration user interface for the switches.
You must perform the following settings in the switch:
– Assign IP address, page 40,
– Program redundancy settings, page 40.
Furthermore, optional settings e.g.:
– Programming the fault relay, page 41,
– Programming connection monitoring, page 41,
