7.5 Panel network over CAN with redundant panels

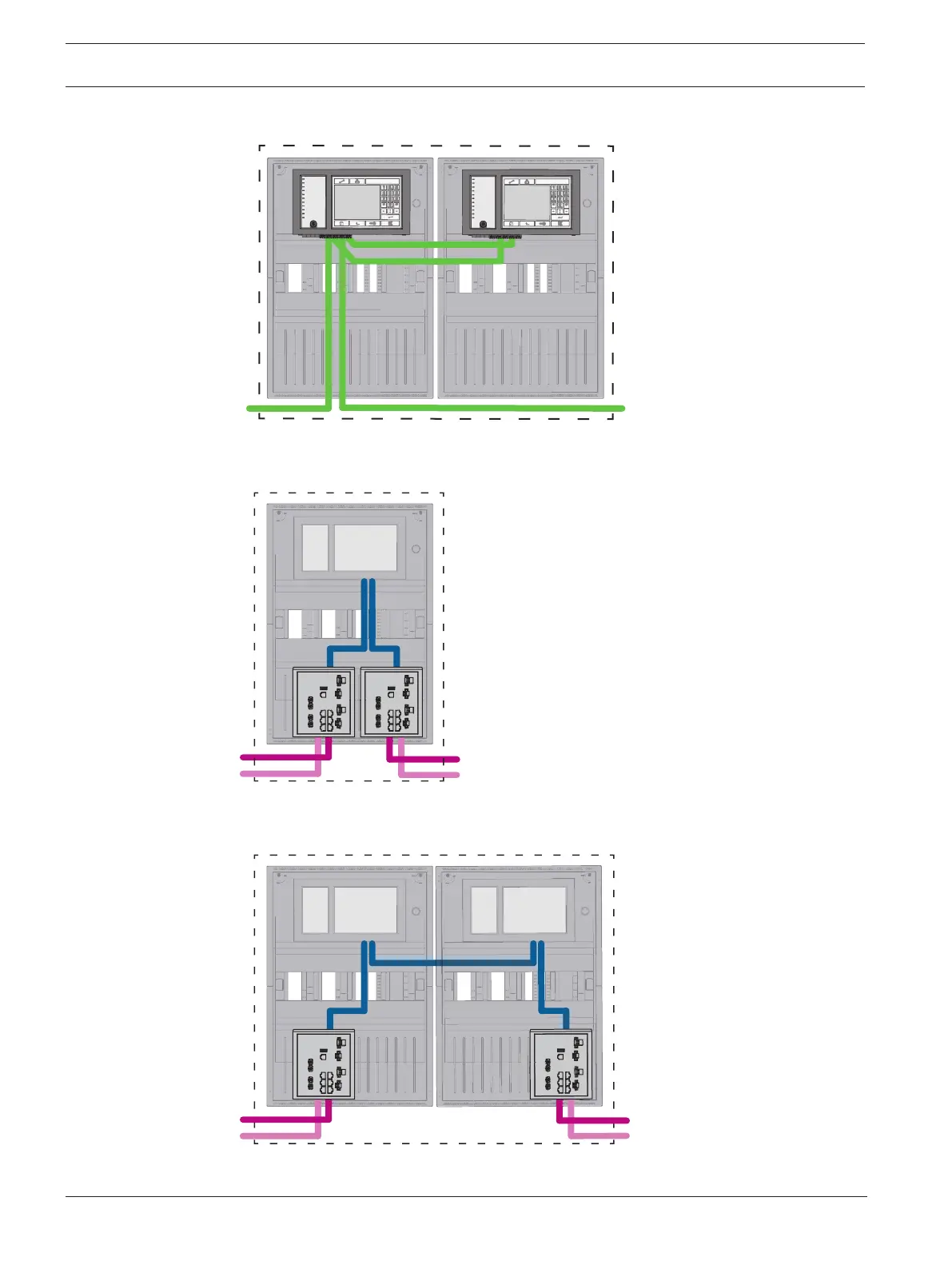

Figure7.5: Panel network over CAN with redundant panels
7.6 Panel network over two Ethernet loops
1 2
Figure7.6: Connect Ethernet networks
7.7 Panel network over two Ethernet loops with redundant panels
1 2 1 2
Figure7.7: Connect Ethernet networks with redundant panels

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
