Modular fire panel Installation | en 37
Bosch Sicherheitssysteme GmbH Networking guide 07.2019 | 5.9 | F.01U.247.450
Praesideo/
PAVIRO

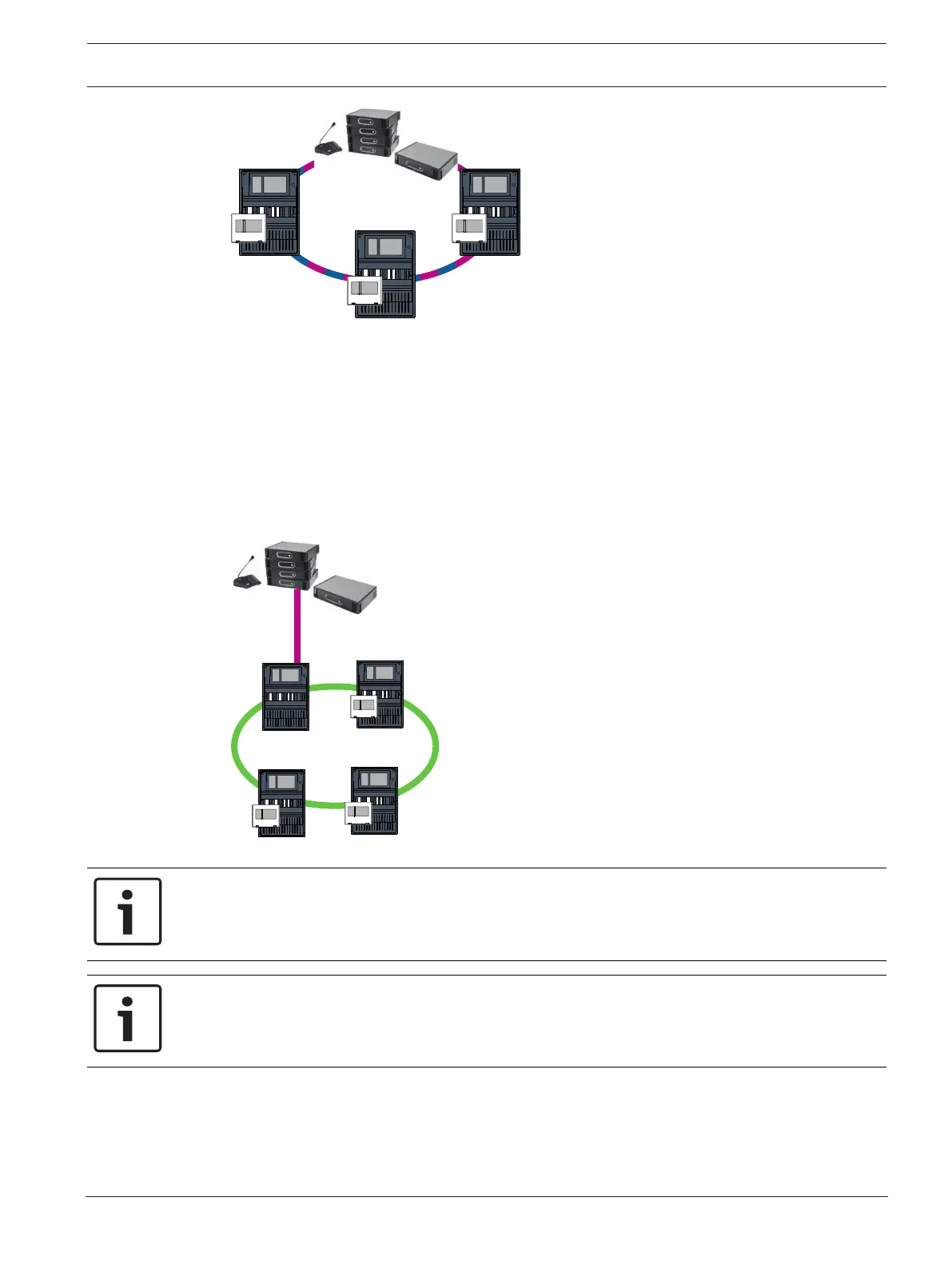

Figure9.1: Ethernet loop with Praesideo/PAVIRO
Use the Ethernet Switch (in general MM BPA-ESWEX-RSR20) approved with panel firmware
version 2.8.
To prevent sending EN 54-2 relevant multicast traffic to the Praesideo/PAVIRO system,
activate IGMP snooping of the MM, see the corresponding section in the Installation chapter
of the Networking Guide.
In every panel controller of a CAN network you can connect one Praesideo/PAVIRO system
using an Ethernet interface. The following topology shows panel controllers connected via
CAN where the Praesideo/PAVIRO system is connected to one panel controller using an
Ethernet interface.
Praesideo/
PAVIRO
Figure9.2: Praesideo/PAVIRO connection to a CAN network
Notice!
Because CAN network traffic shall not be transferred through the Ethernet connection, you
must switch off networking over IP in the FSP-5000-RPS programming software.
If this is not switched off, the network will not be compliant with EN 54.
Notice!
If an MPC-xxxx-B panel controller shall be used for the direct connection to a Praesideo/
PAVIRO system a cross-over patch cable is required as neither Praesideo/PAVIRO nor the
MPC-xxxx-B supports Auto-MDI(X).
10 Installation
Checklist
Before starting with the installation of the network, please review all of the points set out
below.
