7.3 Connect services to panel
1 2 1 2

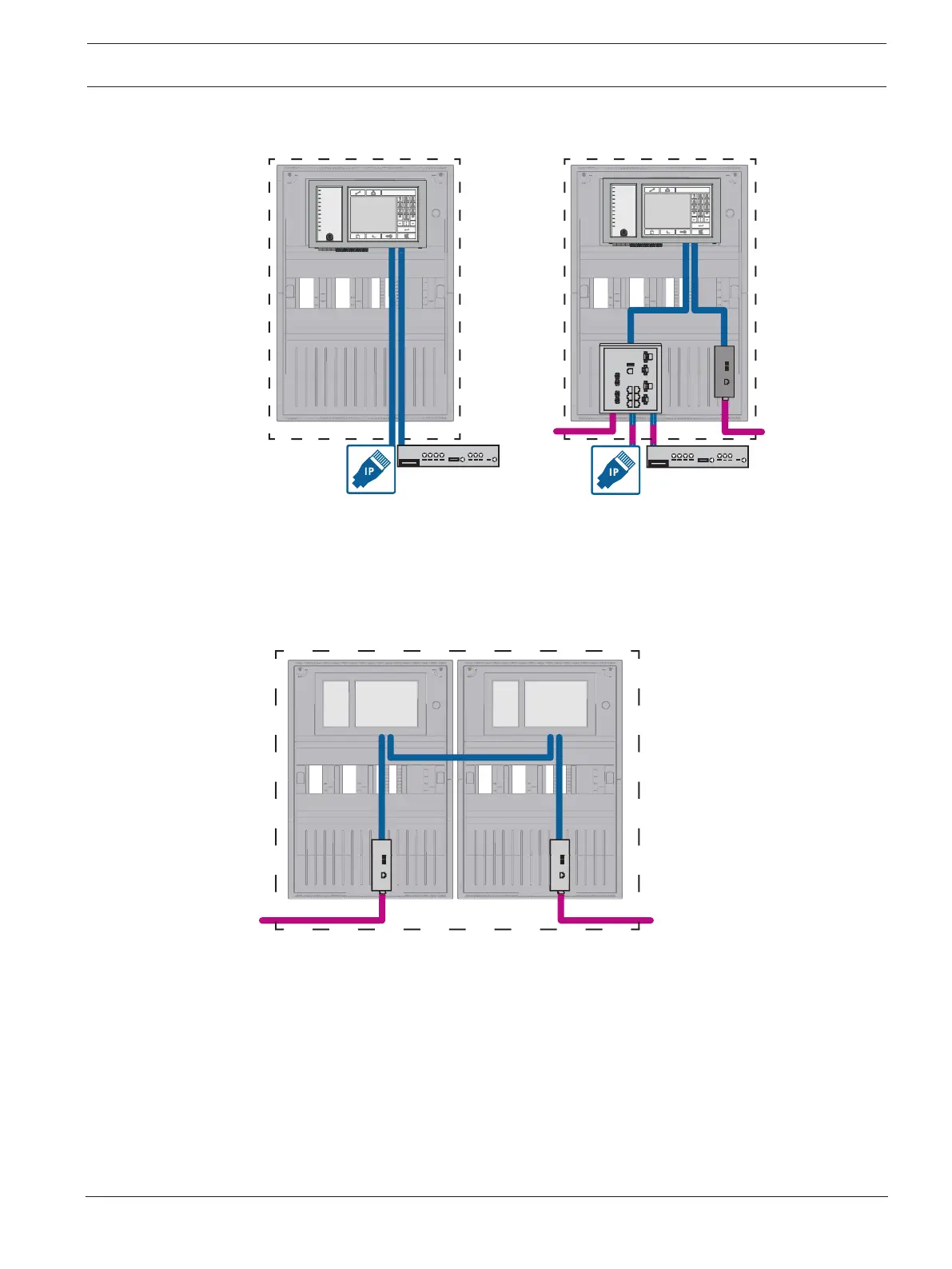

Figure7.3: Left side: without panel network, Right side: with panel network
For ranges greater than 100 m the range extension with media converters is mandatory. For
ranges less than 100 m the media converters might not be required.
7.4 Panel network over Ethernet with redundant panels
1 21 21 2
Figure7.4: Panel network over Ethernet with redundant panels
For ranges greater than 100 m the range extension with media converters is mandatory. For
ranges less than 100 m the media converters might not be required.

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
