7 Ethernet and CAN networking pattern
For building up panel networks corresponding to the introduced topologies and connecting
services, you need the networking pattern described in this document.
7.1 Panel network over Ethernet
1 2

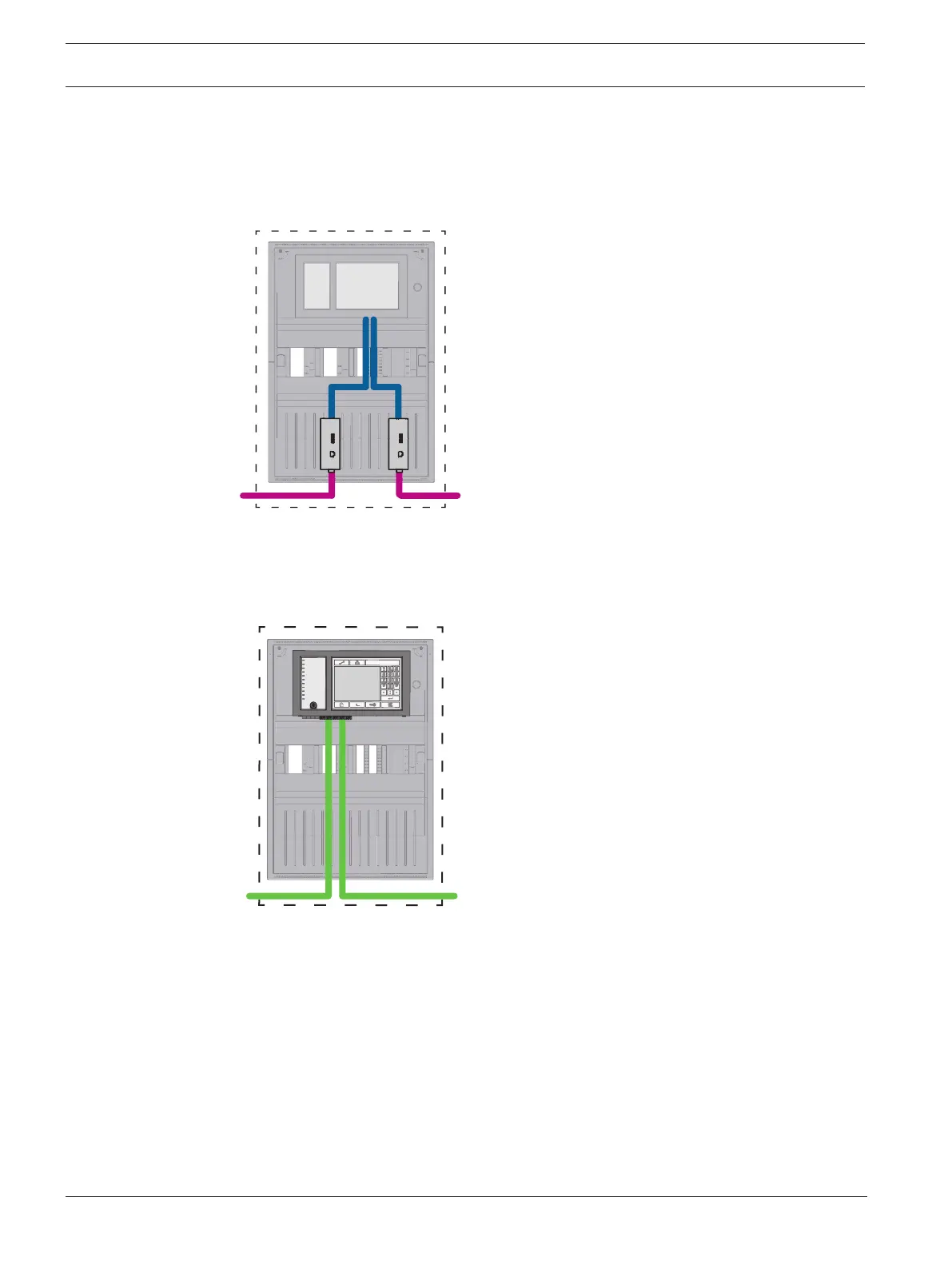

Figure7.1: Panel network over Ethernet
For ranges greater than 100 m the range extension with media converters is mandatory. For
ranges less than 100 m the media converters might not be required.
7.2 Panel network over CAN
Figure7.2: Panel network over CAN

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
