2 connected panels form the smallest possible loop. The diameter of this network is equal to
2, as the internal RSTP switches are located between the end points.
CPU
S
CPU
S
1
2
Ø = 2 =
#

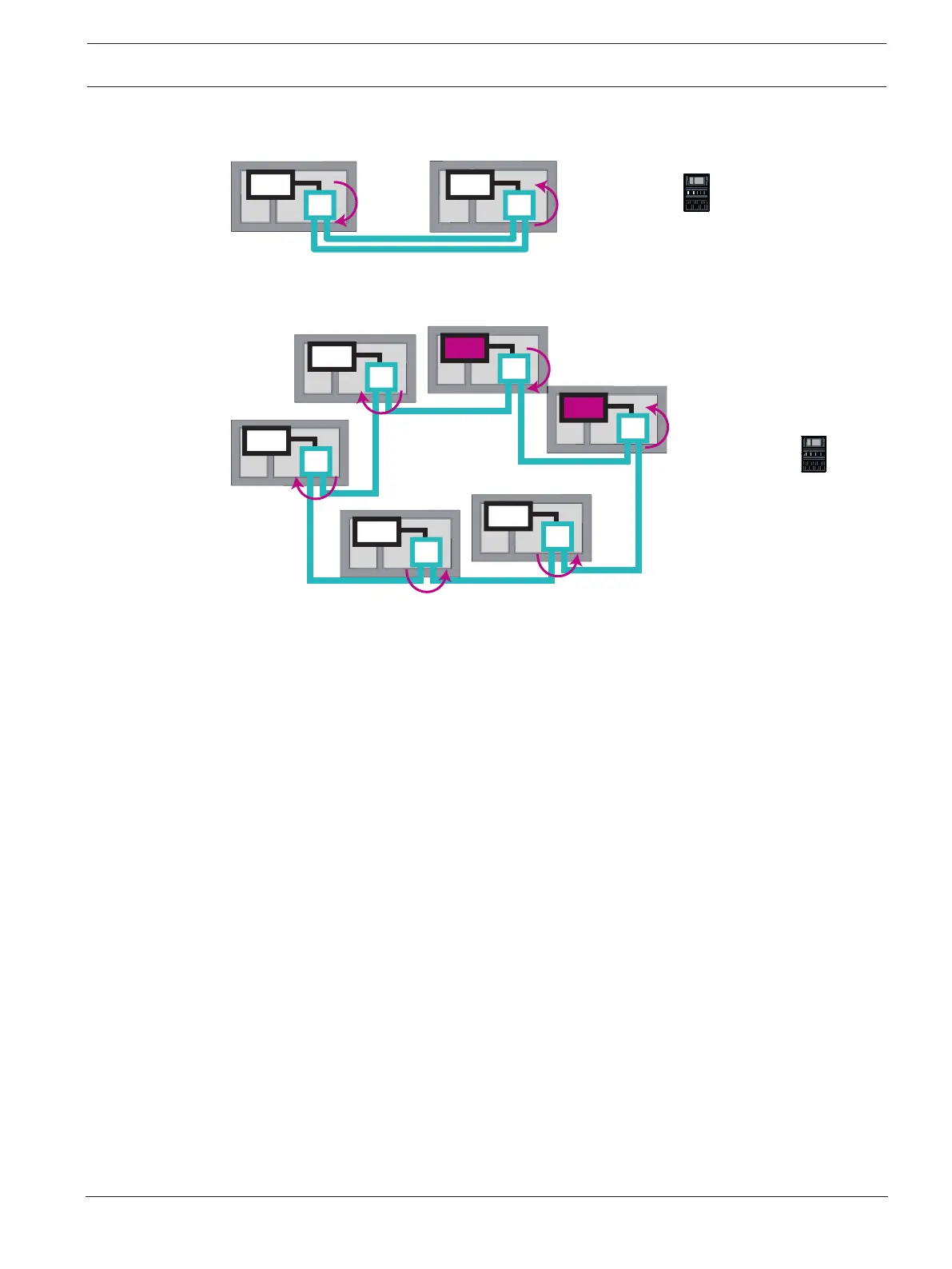

Figure5.1: Network diameter of a loop with 2 panels
In a panel loop without external RSTP switches, the diameter of the network corresponds to
the number of installed panels.
CPU
CPU
CPU
1
2
CPU
CPU
CPU
3
4
5
6
Ø = 6 =
#
Figure5.2: Network diameter of a loop with 6 panels
If a backbone and sub-loops are connected to each other via Ethernet switches, then these
external RSTP switches must also be taken into account.

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
