Bosch FPA-5000 Networking Guide

Modular fire panel Cabling | en 55
Bosch Sicherheitssysteme GmbH Networking guide 07.2019 | 5.9 | F.01U.247.450
FPP-5000
PSF 0002 A /
PSS 0002 A
24V (2,8 A) -> DC1
24V (2,8 A)
MAIN POWER
MAIN POWER
TROUBLE
TROUBLE
TROUBLE
BATTERY 1
BATTER
Y 2
BCM-0000-B
-AC FAULT -> IN2
-BAT FAULT -> IN1

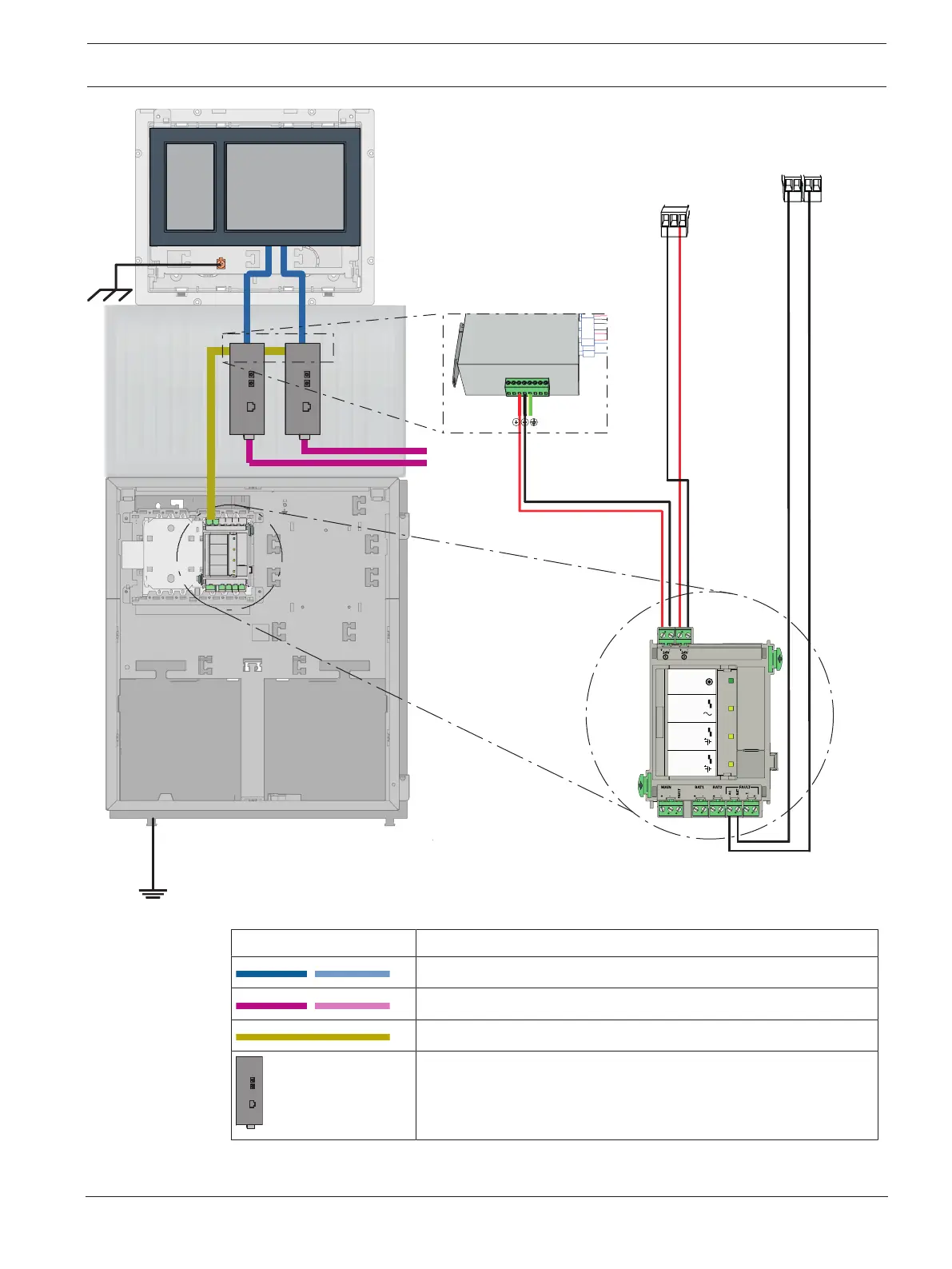

Figure11.4: Cabling of Remote keypad
Icon Description
TX Ethernet cable (copper)
FX Ethernet cable (fiber optic cable)
24 V power supply
Media converter

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
