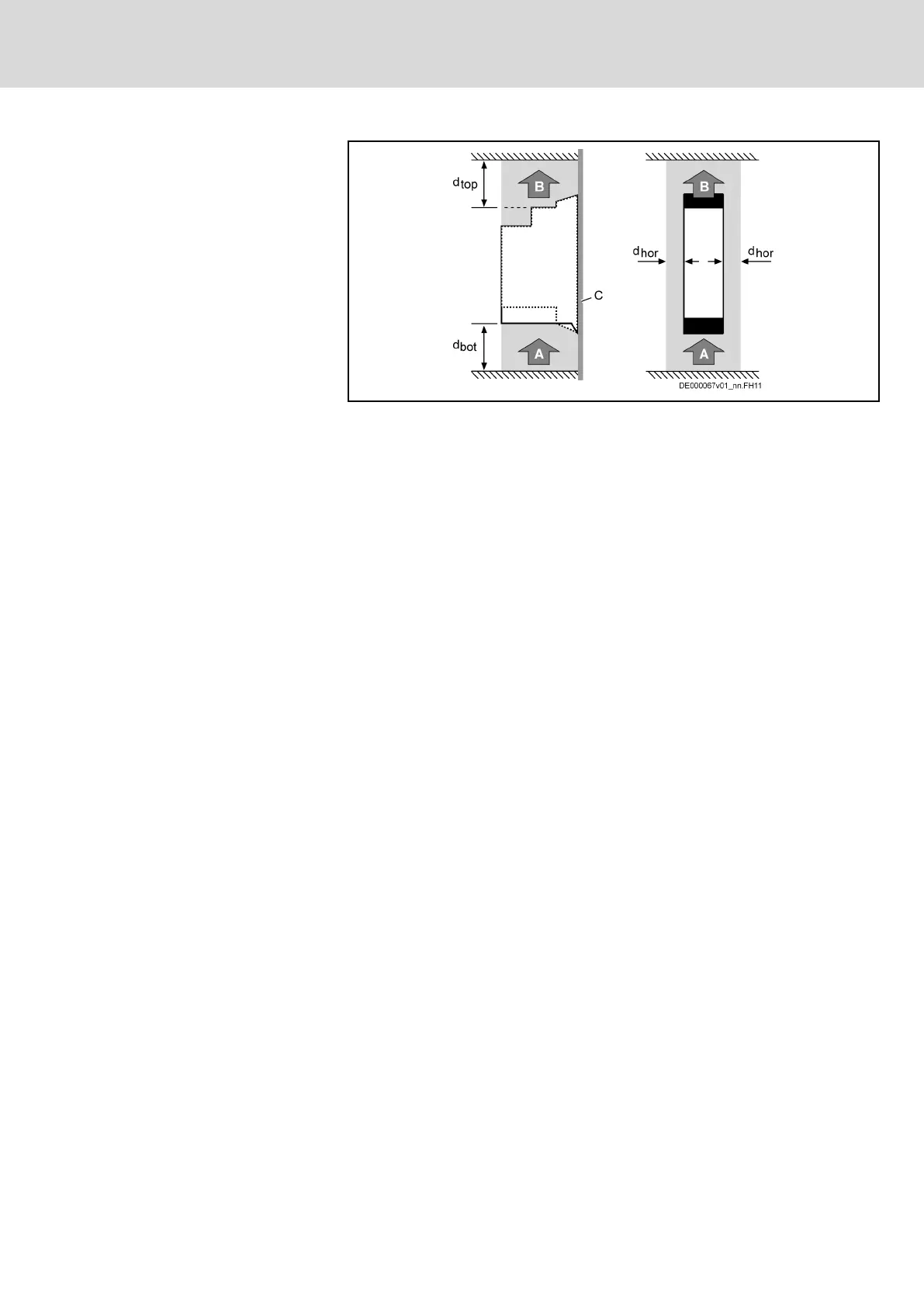

Distances
A Air intake
B Air outlet
C Mounting surface in control cabinet
d
top
Distance top
d
bot
Distance bottom
d
hor
Distance horizontal
Fig. 7-1: Air intake and air outlet at device
