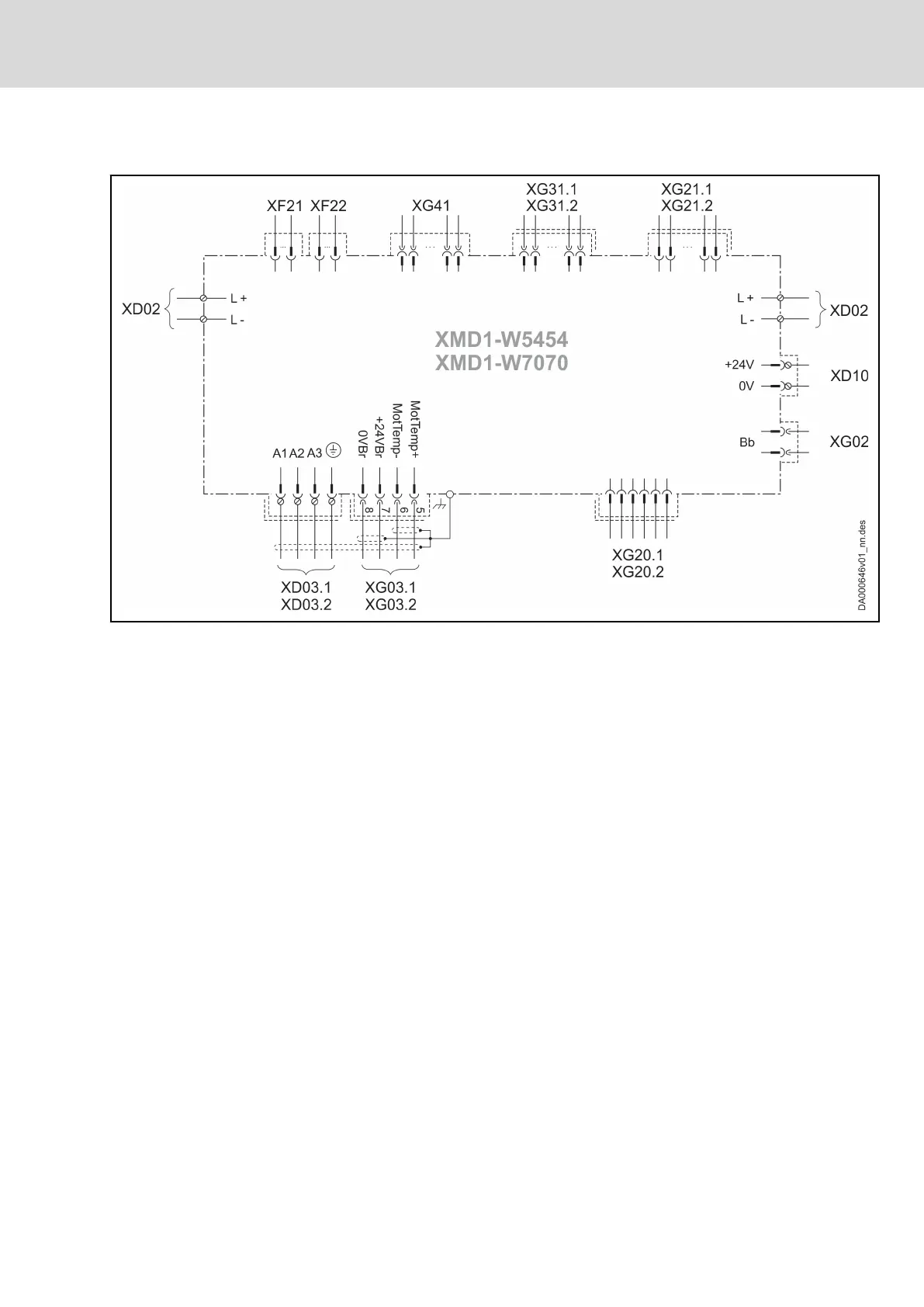

Overall connection diagram XMD1-W5454/-W7070
XD02 DC bus
XD03 Motor
XD10 Control voltage
XF21, XF22 Communication
XG02 Ready for operation relay contact
XG03 Motor temperature monitoring and motor holding brake
XG20 Digital encoder
XG21 Multi-encoder (optional)
XG31 Digital inputs/outputs; analog input
XG41 Safety technology
Fig. 10-13: Overall connection diagram XMD1-W5454/-W7070
Symbols: See chapter "Symbols (connection diagram)" on page 69
