Bose ControlSpace AMS-8 Installation Guide

14
English
voice
flat
voice
flat
1 2 3
2 5 4
3
1
3. System Installation

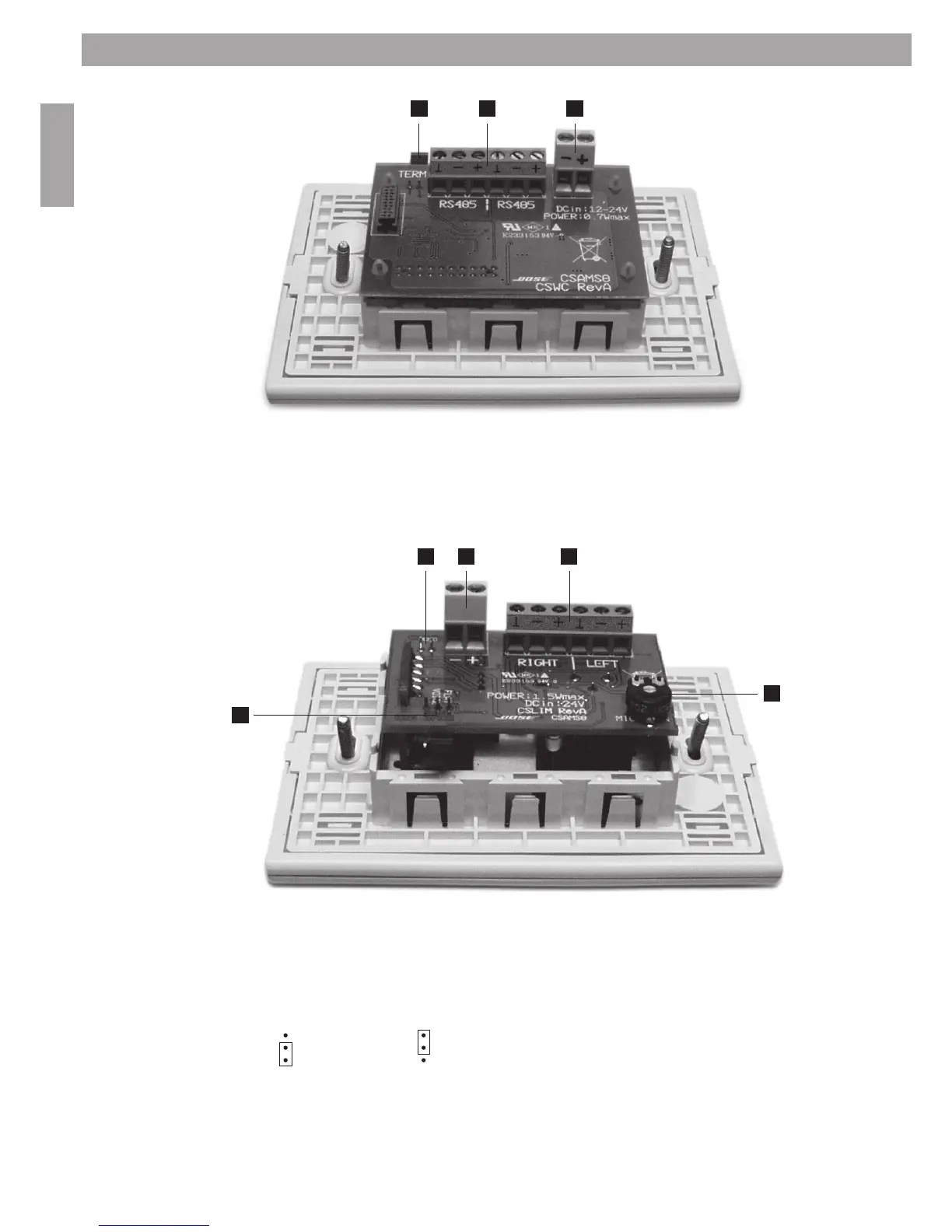

3.6 CS-WC connections
1. Termination jumper, see NOTE in chapter 3.5
2. RS485 connector
3. Power supply connector
1. The CS-LIM is equipped with a microphone gain adjuster. Turn the adjuster anti-clockwise to decrease
the gain to a minimum of 32dB. Turn the adjuster clockwise to increase the gain to a max of 66dB.
The factory gain setting is 38dB.
2. To change the CS-LIM from stereo to mono, this jumper needs to be set.
3. To activate a voice EQ for the microphone input, the jumper needs to be moved from FLAT to VOICE
= flat response = voice EQ
4. Stereo, balanced output line connector.
5. Power supply connector.
3.7 CS-LIM connections
