Bose ControlSpace AMS-8 Installation Guide

English
9
1 2 3 4 5
2
1
3
4
5

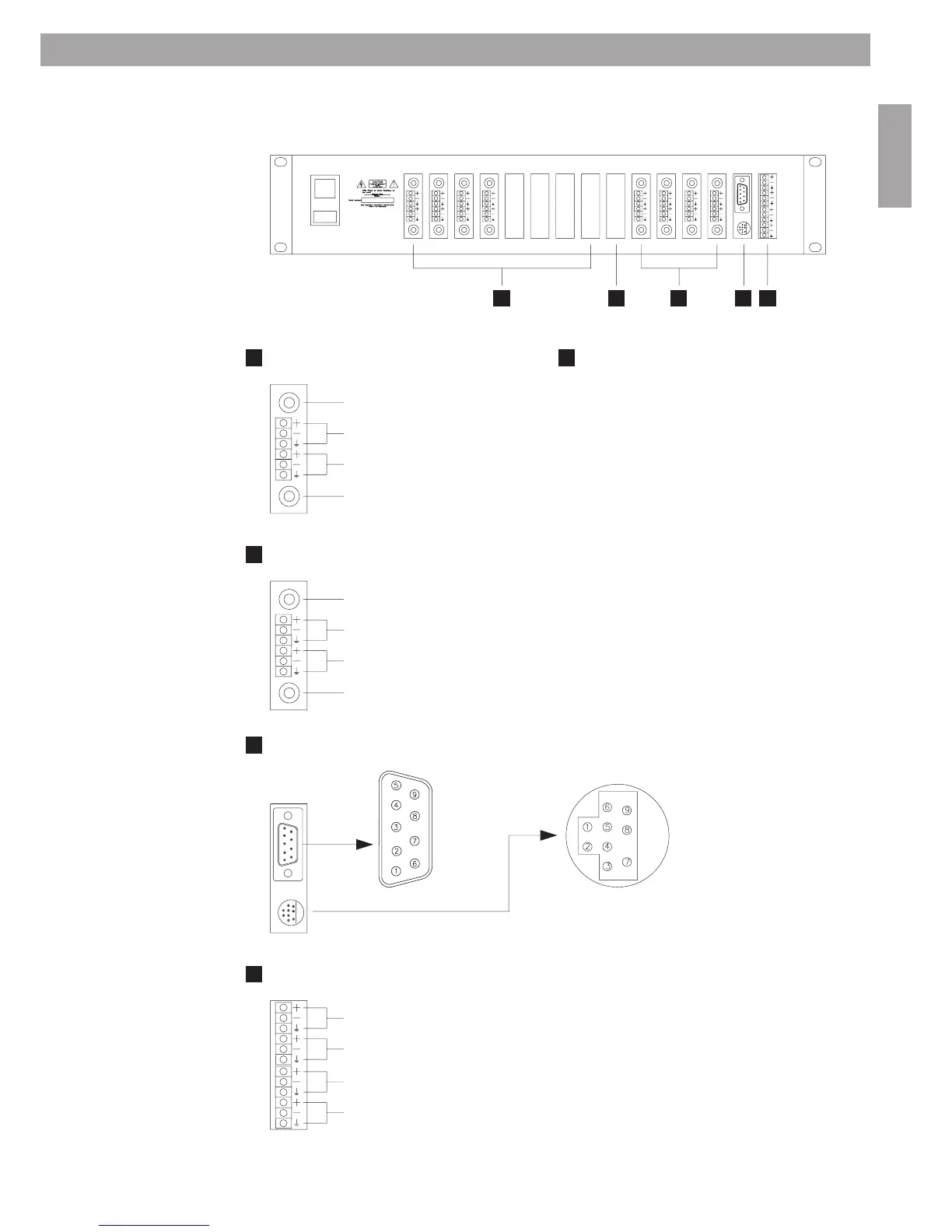

3. System Installation
3.2 Rear panel ControlSpace
™
AMS-8
RCA Input Connector
(Unbalanced line level)
3-pin Input Euro Block Connector
(Balanced line level)
3-pin Input Euro Block Connector
(Balanced line level)
RCA Input Connector
(Unbalanced line level)
Line inputs (1-16)
CS TIC
RCA Output Connector
(Unbalanced line level)
3-pin Output Euro Block Connector
(Balanced line level)
3-pin Output Euro Block Connector
(Balanced line level)
RCA Output Connector
(Unbalanced line level)
Line outputs (1-8)
CS TOC
RS232 port pin out
Straight shielded cable
(20 metres max.)
2. TX
3. RX
4. GND
RS232 & GPIO card
DB Female
GPIO pinout:
Contact 1: Zone 6
Contact 2: Zone 4
Contact 3: Zone 3
Contact 4: Zone 2
Contact 5: Zone 1
Contact 6: Zone 7
Contact 7: Zone 8
Contact 8: Zone 5
Contact 9: Out
Contact 10: Sleeve/Common
Rack link 1 (high speed)
Rack link 2 (high speed)
CS-WC & CS-PP Bus 1 (low speed)
CS-WC & CS-PP Bus 2 (low speed)
RS485 card
Audio Link Card slot
Slot for Audio Link Card to link two ControlSpace
™
AMS-
8 Audio Management Systems. An Audio Link Card is
only required in the master rack. Add one Audio Link
Cable set per four sources to be linked.
