Brady M210 User Manual

M210/M210-LAB User Manual 65

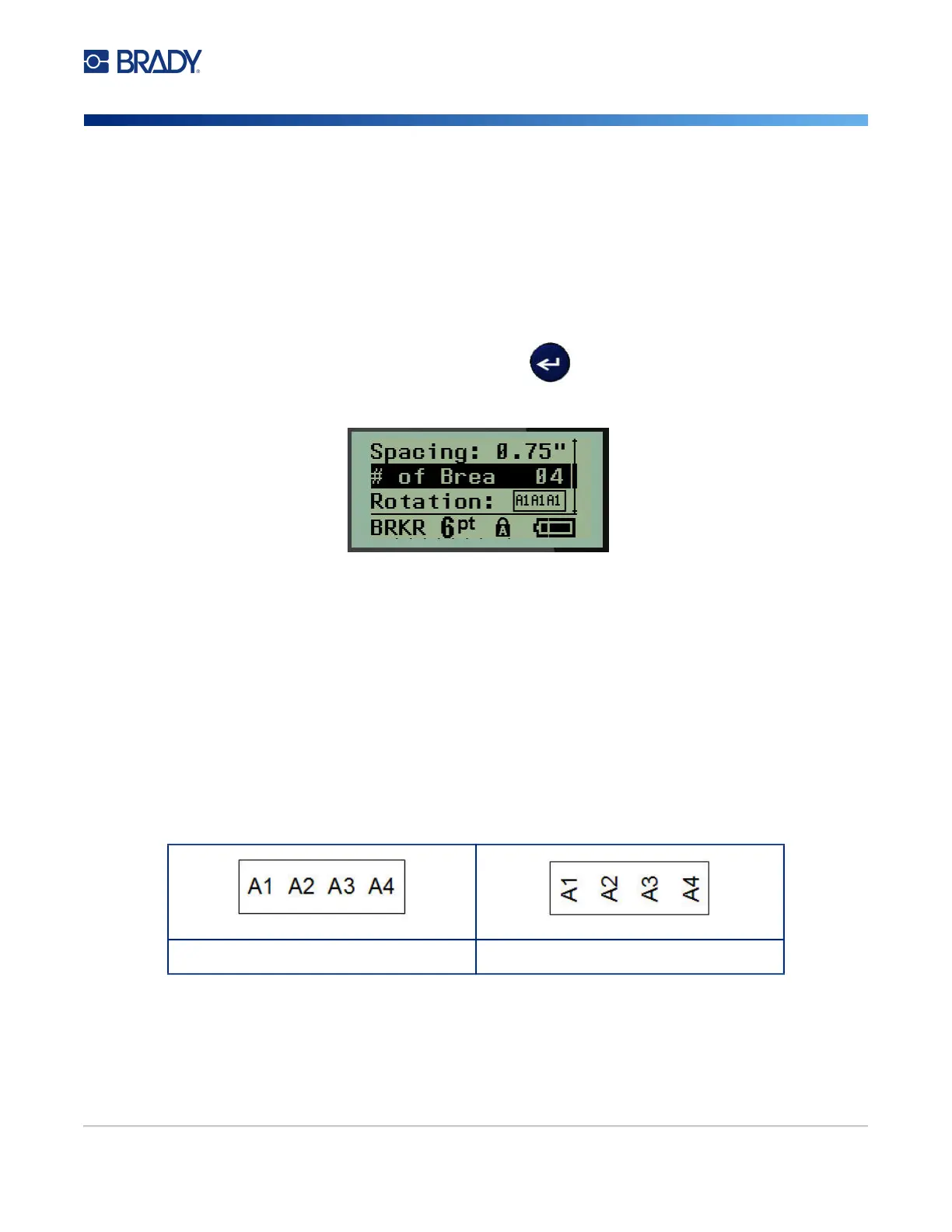

Breaker Box (M210)
Breakers are usually arranged in two columns or along one row, depending on geographic regions.
The breaker positions are numbered left-to-right or top-to-bottom, depending on label orientation. This
numbering system is universal across various competing manufacturers of breaker panels.
To create Breaker Box labels:
1. Press LABEL TYPE.
2. Navigate to Breaker Box, then press Enter .
3. In the Spacing: field, enter the width of a standard breaker.
4. In the # of Breakers: field, enter the number of breakers to be labeled. This produces one
continuous strip, vertically aligned for US breaker boxes, or horizontally aligned for EU breaker
boxes.
A “partition” is a separator line that prints between breakers on a label. Indicate if you want a separator
line to print.
5. In the Partition: field, use the left or right navigation keys to turn the partition on or off.
6. In the Rotation: field (not visible on the initial data fields screen), use the left or right navigation
keys to access the degree of rotation desired for the printed labels - landscape (0
°) or portrait
(90°).
7. When finished, press Enter.
Landscape - 0
° rotation Portrait - 90° rotation

Brady M210 Specifications

General

Product color	Black, Yellow
Internal memory	16 MB
Built-in barcodes	Code 39, Data Matrix, QR Code
Color	No
Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum printing width	16 mm
Battery type	Built-in battery
AC input voltage	110 - 240 V
Maximum label width	19.05 mm
USB port	-
Connectivity technology	Wireless

Weight and Dimensions

Depth	63 mm
Width	114 mm
Height	241 mm
Weight	750 g
