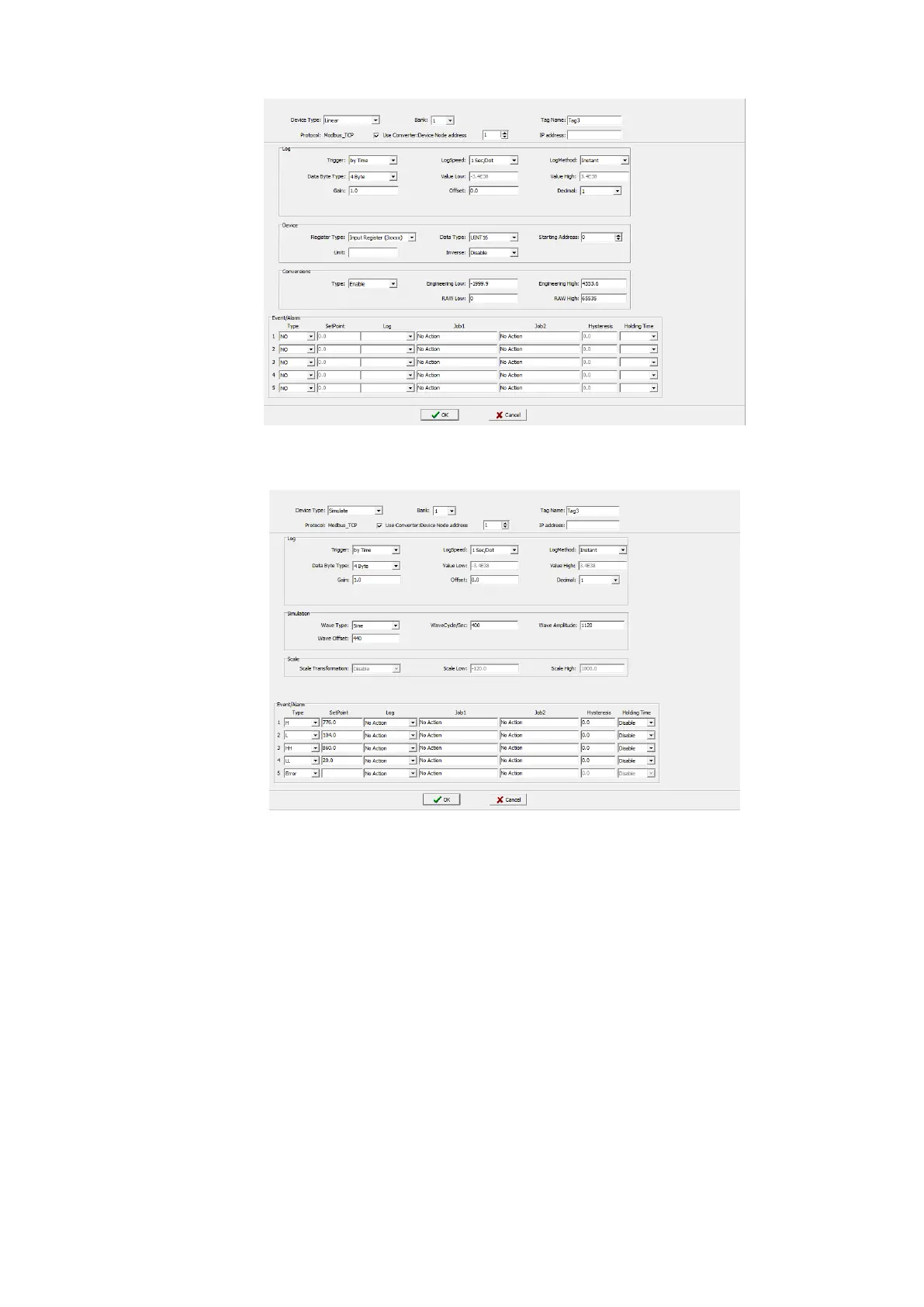

6. Simulate Channels to simulate the input signals by the software
All the channel configurations are similar to recorder channel configuration. Every channel can
be configured with 5 different types of events or alarms similar to recorder and each event can be
configured with two jobs.
Device Type: Display channel source
Bank: Display current Bank number
Tag Name: It is to define the name for each channel in maximum 9 characters
Auto-Update: If you wish to modify Tag name and modify configuration, deselect it
Use Gateway-Device Node address: It is address of selected device type
IP address: Display current gateway IP address
Log Type: Enable/Disable. Select disable while a specific channel is not required at this time.
Select enable while a specific channel is required
Log Speed: It is the logging speed (recording speed) of measured data. Select Log Speed
column, then choose 1, 2, 5, 10, 15, 20, 30 seconds, 1,2,5,10,15 Minutes, 1 Hour, 2
Hour.
Log Method: The method of logging measured data. Select the column, and then choose the Log
method of Instant, Average, Minimum or Maximum data
Instant: logging in the last measured data at the sampling interval
Average: logging in averaged measured data at the sampling interval
