Events: It is to trigger functions/jobs to be executed when process value of tag linked with Level
bar graph is changed during run time.

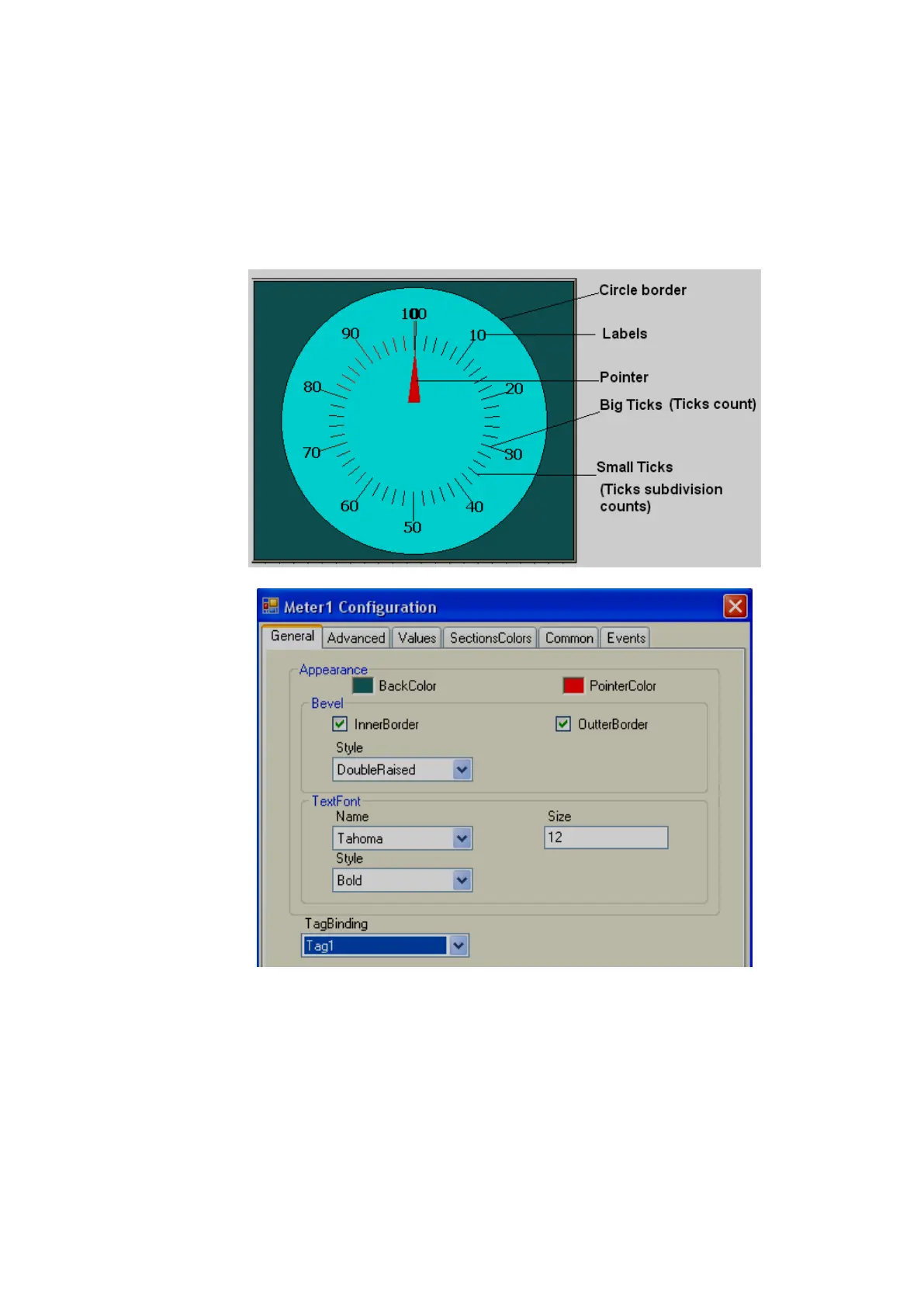

6.3.9.2.3 Meter
A Meter is a component generally used to display process values like pressure, Temperature,
Flow etc. Generally, it is linked with an Analog tag (Analog input type tag at PLC, which is received as 4-20
mA signal from field transmitters like Temperature, pressure, etc...)
Properties
Back color: It is to set back ground color for the Meter.
Pointer Color: It is to set Pointer Color.
Bevel: It is to set border including inner border, outer border, and style of border.
Inner Border: True/False
Outer Border: True/False
Style: 9 styles are available
None, Flat, Single, Double, Raised, Lowered, Double Raised, Double lowered, Frame Raised,
and Frame Lowered.
