Once a symbol is selected in the Recorder from Graphics, it is possible to change, Flip or rotate
basic symbols in 0
0
, 90
0
, 180
0
and 270
0
Properties

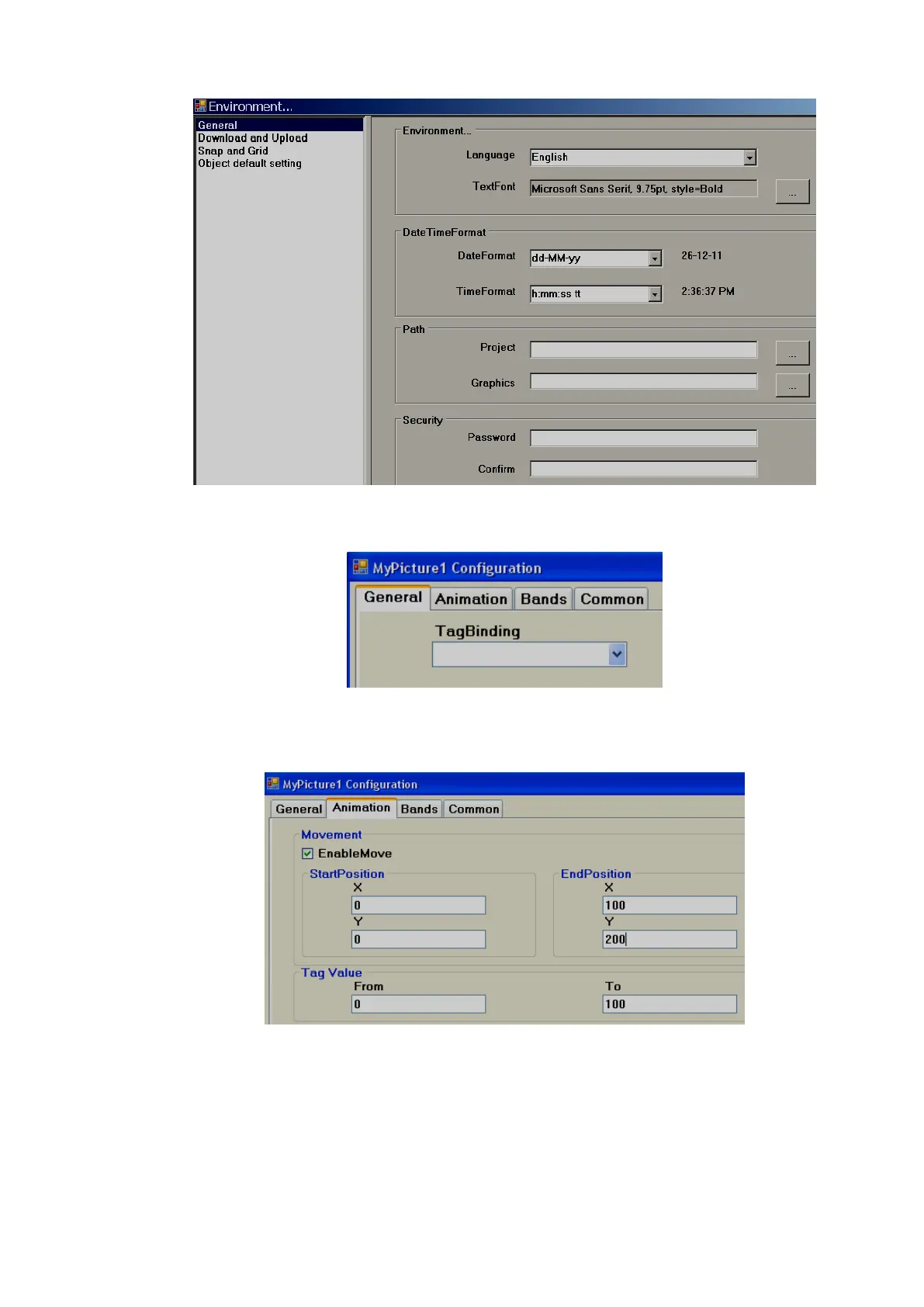

Tag Binding: Select an Analog Tag if animation is required for the symbol in Run time.
Movement: Select the Enable/Move checkbox, then, enter the X and Y start and end positions
(this is in pixels).
Tag Value: Linked with the Start and End Positions.
Ex: Recorder 7” (High Performance), Screen Resolution = 800 X 480, Horizontal installation,
Width=800, Height=480. Move symbol from Left to Right of screen during Run time when tag
value changes from 0 to 100
