6. Grasp the handle and pull, sliding the power supply from the chassis and supporting the power supply from beneath as you
remove it.

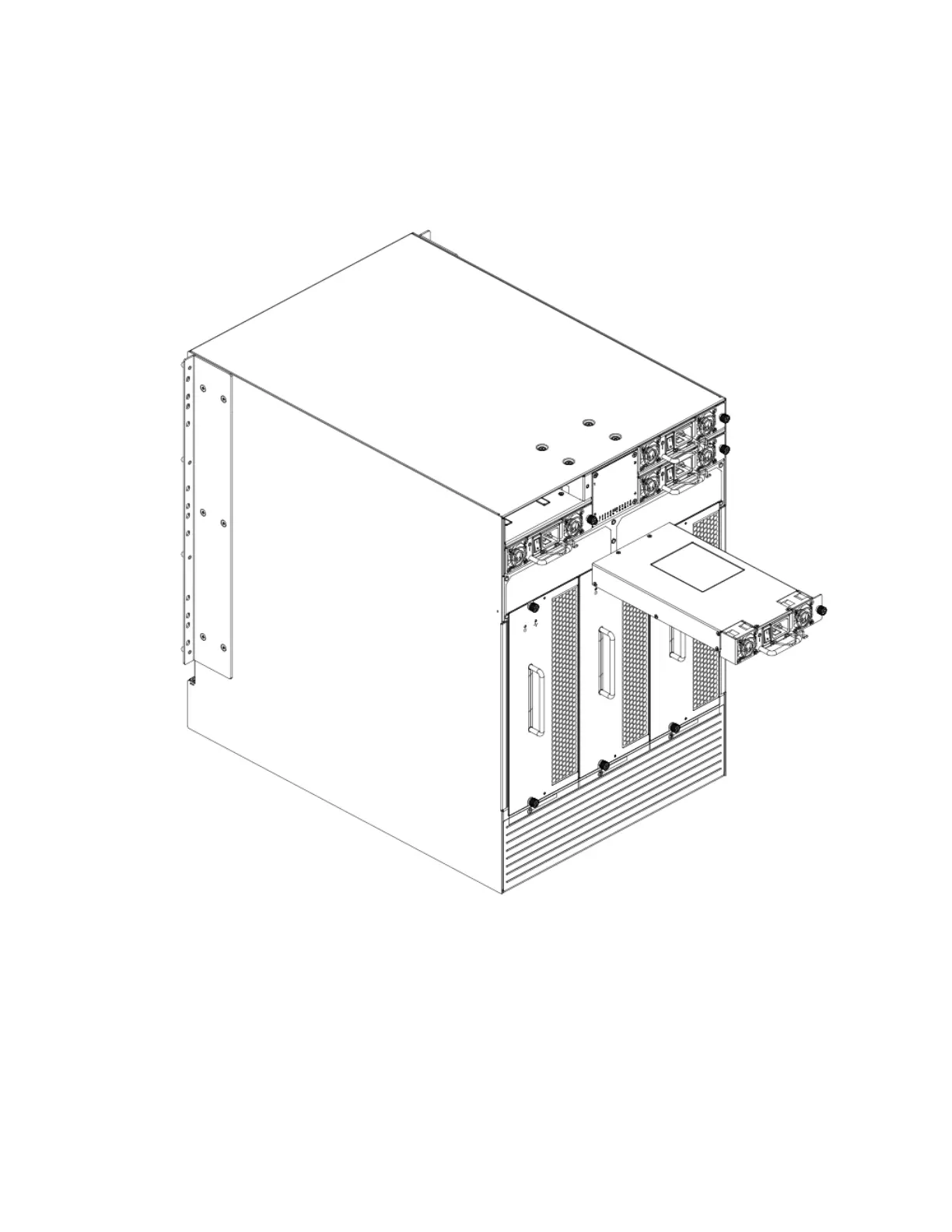

FIGURE 45 Removal and replacement of the power supply
Replacing a power supply
To replace a power supply, complete the following steps.
1. If you are not replacing the power supply, insert a ller panel into the slot.
2. Otherwise, insert the power supply into the slot. Verify that the power supply is seated by gently pulling on the handle.
3. Tighten the thumbscrew.
4. Replace the power cord.
Power supply removal and replacement
Brocade DCX 8510-8 Backbone Hardware Installation Guide
53-1002180-15 123
