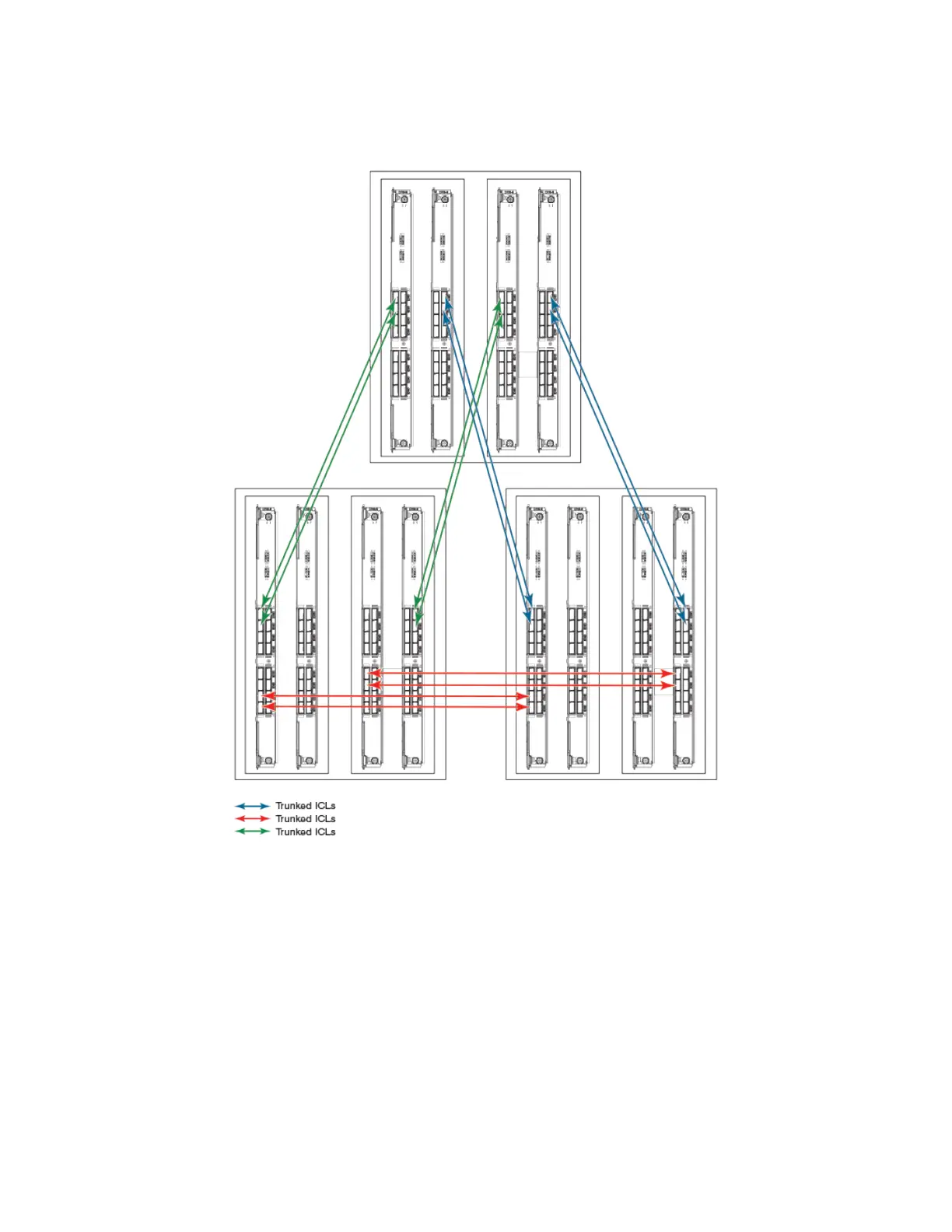

FIGURE 19 DCX 8510 full mesh ICL topology
Using Brocade 2 km LWL QSFPs
Up to 10 ICL ports using the 2km ICL QSFP are supported in a DCX 8510 backbone switch at the two km distance, which requires
conguring 16 buer credit per virtual channel. The 10 ICL limit is based on the number of buers. If the 2km QSFPs are used at
shorter distances, then more ICLs can be used.
The Brocade 2 km LWL QSFP, is a hot-swappable, low-voltage (3.3 V) digital diagnostic optical transceiver that supports high-speed
serial links over parallel single-mode optical bers at signaling rates up to 4×14.025 Gbps. The QSFP is integrated with a 3-meter
ribbon ber cable with a male MTP 1 x 12 connector. The QSFP supports 2 km link length on parallel single-mode ber.
Installing inter-chassis links (ICLs)
Brocade DCX 8510-8 Backbone Hardware Installation Guide
53-1002180-15 51
