FX8-24 extension blade LEDs

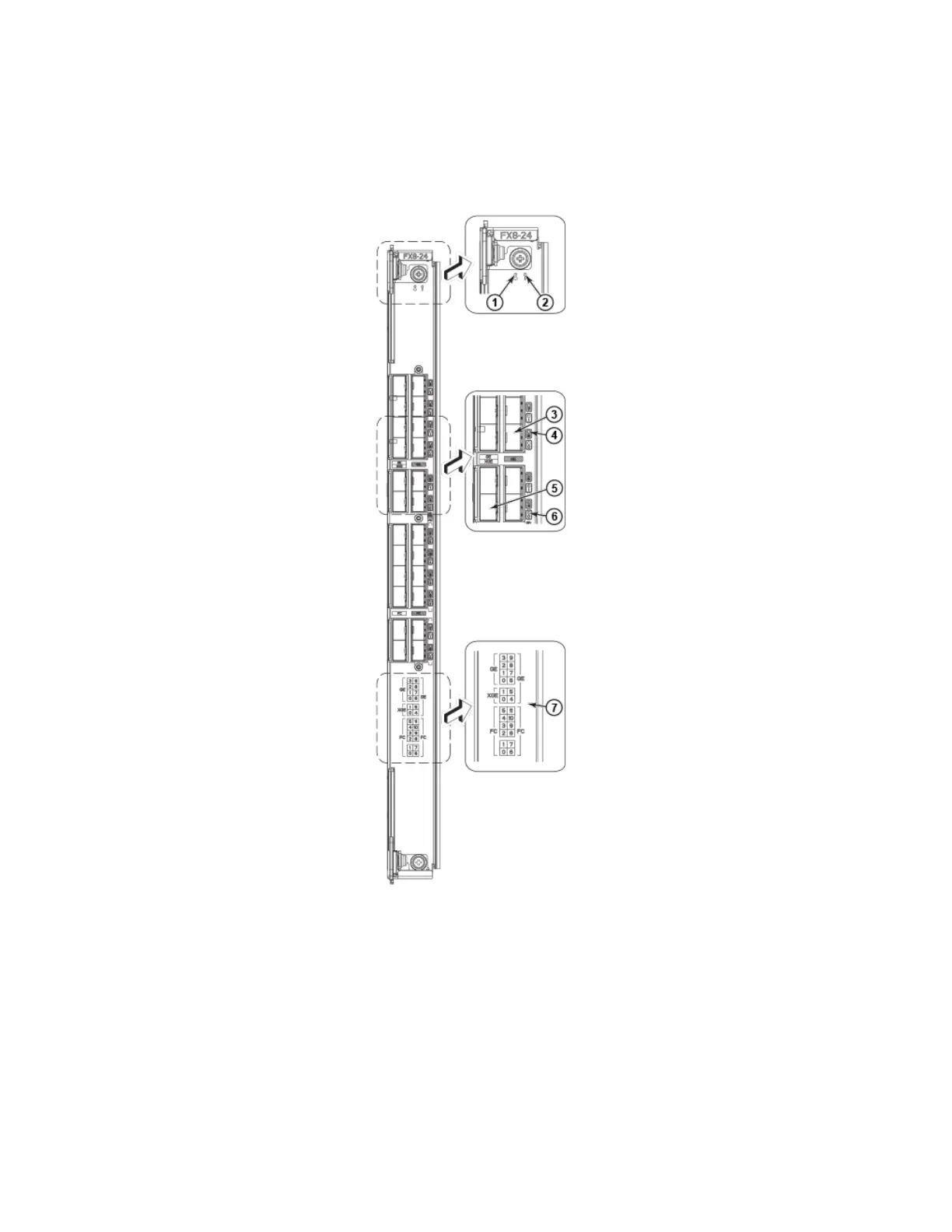

FIGURE 32 FX8-24 extension blade LEDs
1. Blade power LED
2. Blaede status LED
3. GbE port 6
4. GbE port 6 LED
5. 10-GbE port 0
6. 10-GbE port 0 LED
7. Port map
Determining the status of a port, application, or extension blade
Brocade DCX 8510-8 Backbone Hardware Installation Guide
53-1002180-15 85
