FC8-64 port blade port numbering

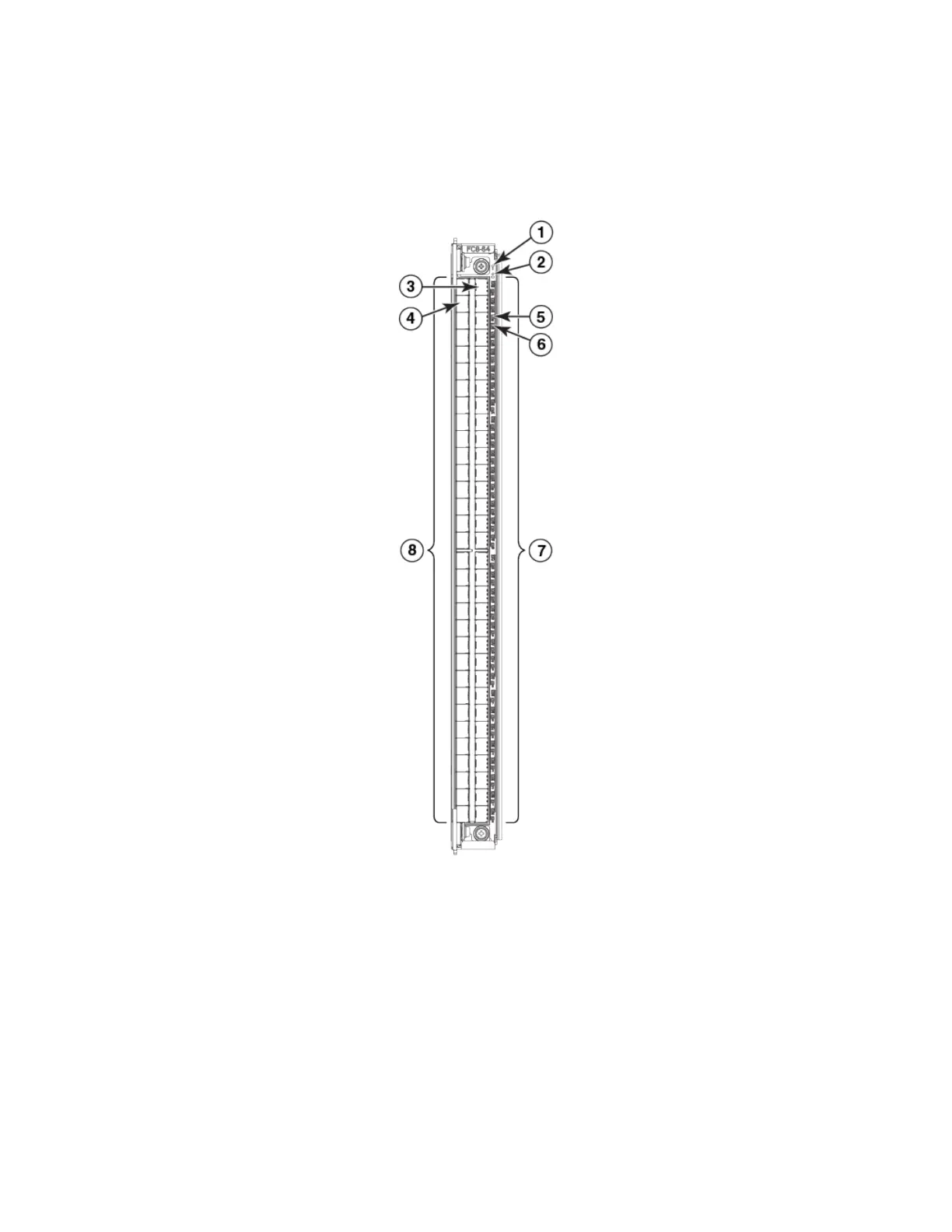

FIGURE 57 FC8-64 port blade port numbering
1. Blade status LED
2. Blade power LED
3. Port 63
4. Port 30
5. Port 61 status LED
6. Port 29 status LED
7. FC ports 32-63 (bottom to top)
8. FC ports 0-31 (bottom to top)
FC8-64 port blade port numbering
Brocade DCX 8510-8 Backbone Hardware Installation Guide
168 53-1002180-15
