CR16-8 core blade port numbering

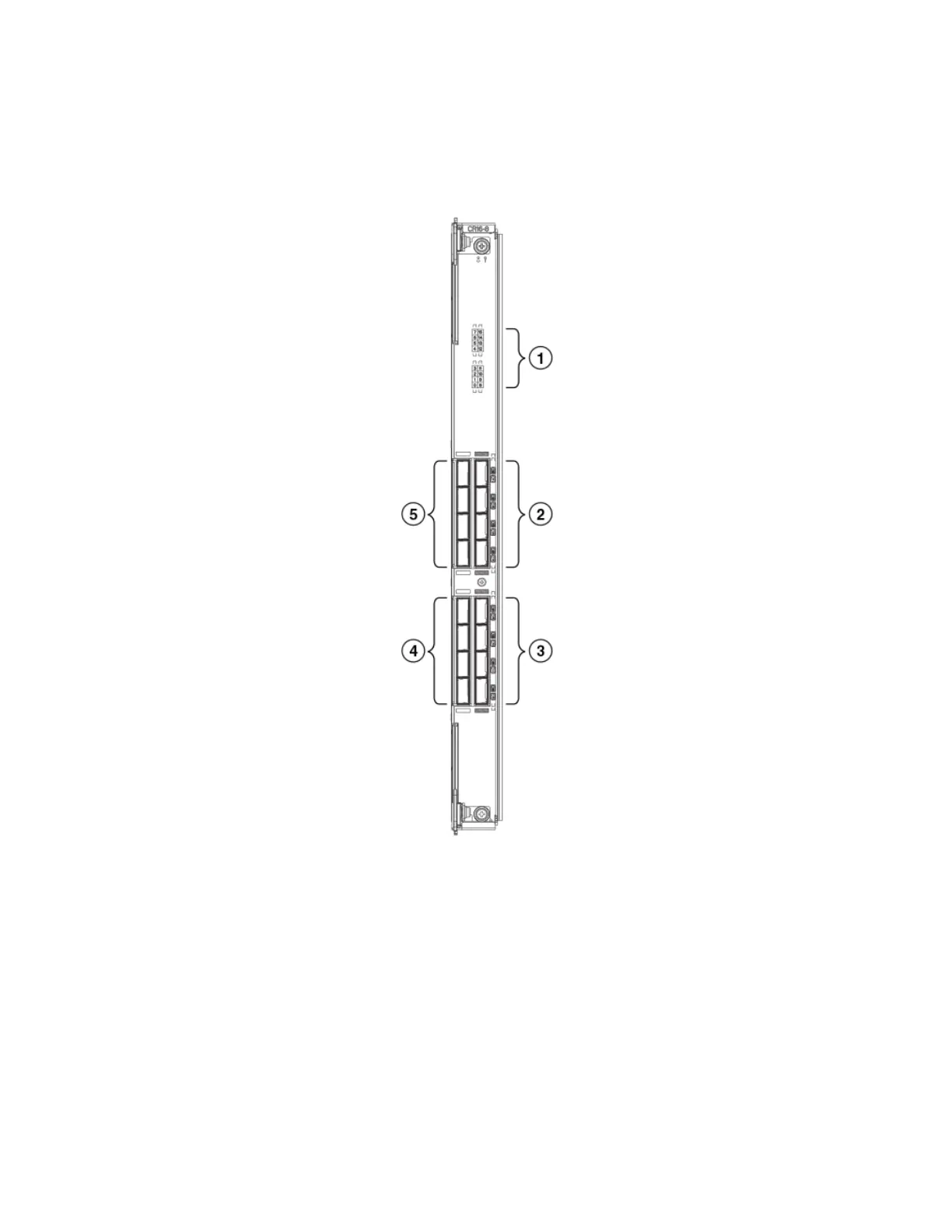

FIGURE 54 CR16-8 core blade port numbering
1. Port map
2. QSFP ports 12-15 (bottom to top)
3. QSFP ports 8-11 (bottom to top)
4. QSFP ports 0-3 (bottom to top)
5. QSFP ports 4-7 (bottom to top)
The following table shows the mappings from the numbered ports on the face of the core blade to the port mappings as shown by the
slotShow command. Each external port maps to four actual ports.
CR16-8 core blade port numbering
Brocade DCX 8510-8 Backbone Hardware Installation Guide
164 53-1002180-15
