FX8-24 extension blade port numbering

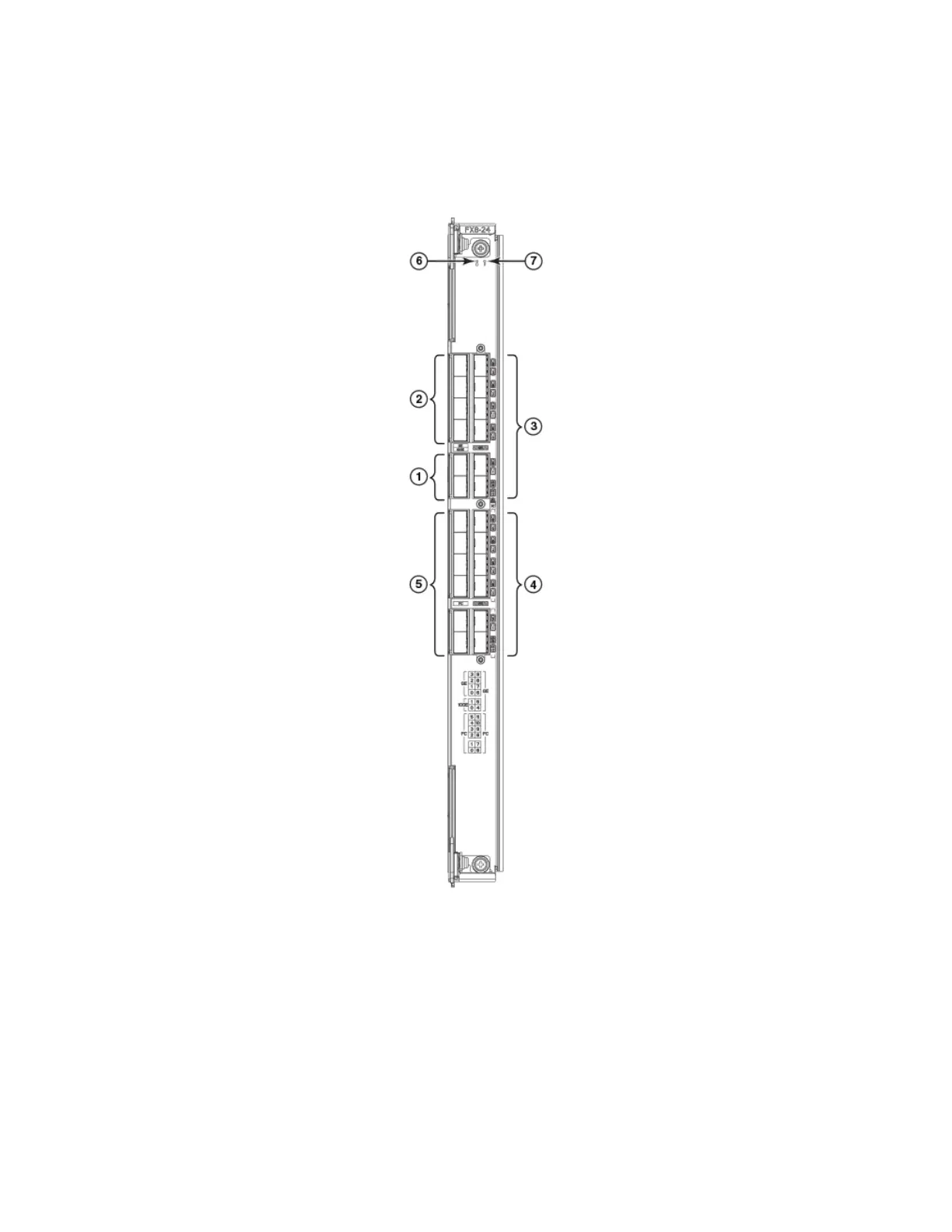

FIGURE 63 FX8-24 extension blade port numbering
1. 10-GbE ports 0-1 (bottom to top)
2. 1-GbE ports 0-3 (bottom to top)
3. 1-GbE ports 4-9 (bottom to top)
4. FC ports 6-11 (bottom to top)
5. FC ports 0-5 (bottom to top)
6. Blade Power LED
7. Blade Status LED
FX8-24 extension blade port numbering
Brocade DCX 8510-8 Backbone Hardware Installation Guide
174 53-1002180-15
