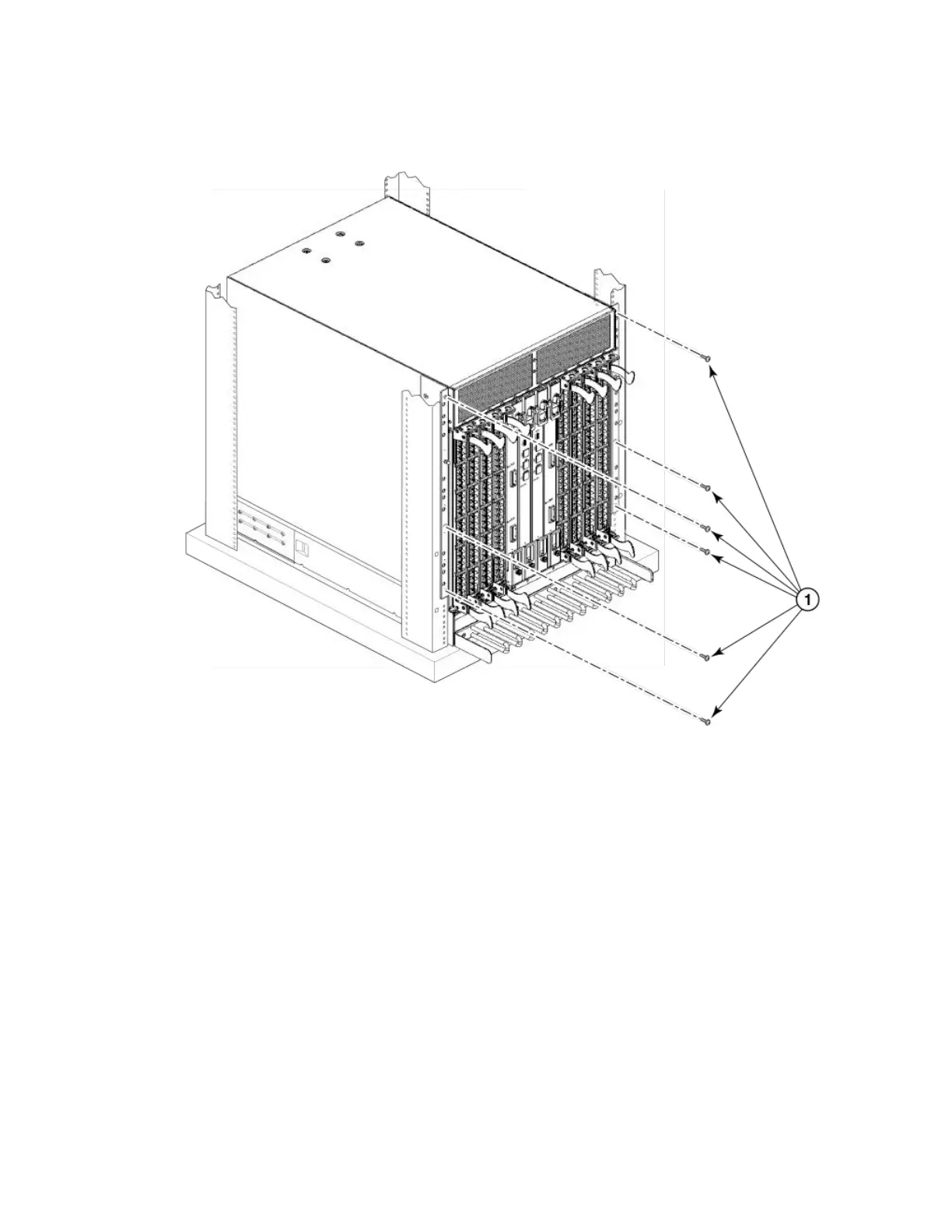

FIGURE 7 Attaching port side of device to rack rails
1. 10-32 x 5/8 in. (1.58 cm) panhead Phillips screw with washer
7. Reinstall the device door if removed from your device. For instructions, refer to the door removal and replacement procedures in
your device installation guide.
Installing the 14U Chassis Mid-Mount Rack Kit for Two-Post Racks (XBR-
DCX-0121)
Use the following instructions to install a Brocade modular device in a telecommunications (Telco) rack, using the 14U Chassis Mid-
Mount Rack Kit for Two-Post Racks (XBR-DCX-0121).
The kit is compatible with rack rails that are either 3 inches or 5 inches wide (adapters are provided for 3-in. rails). Any updates to these
instructions will be added to the hardware installation guide for your product.
NOTE
Hardware devices illustrated in these procedures are only for reference and may not depict the device you are installing into the
rack
Installing the 14U Chassis Mid-Mount Rack Kit for Two-Post Racks (XBR-DCX-0121)
Brocade DCX 8510-8 Backbone Hardware Installation Guide
53-1002180-15 37
