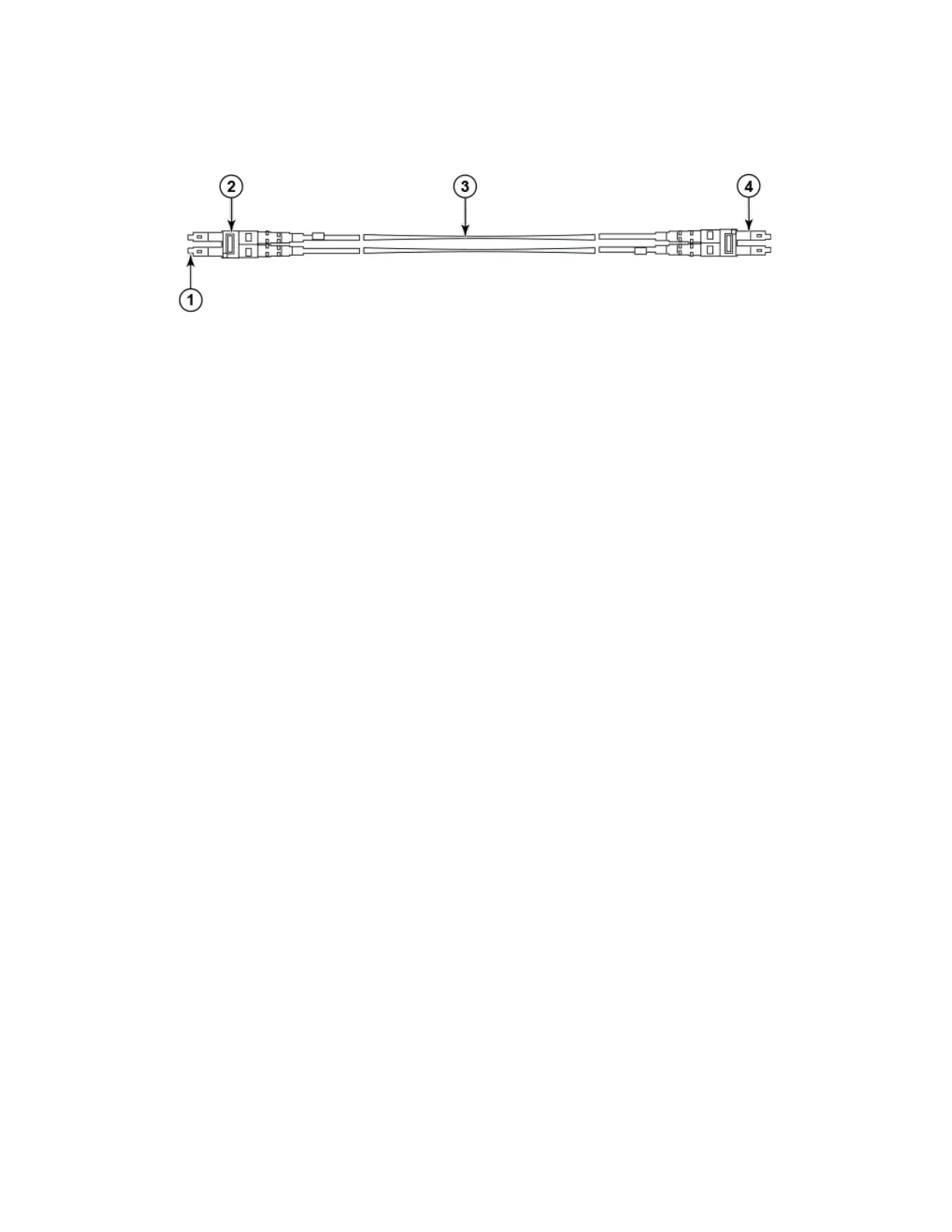

FIGURE 22 Cable design for the mSFP patch cables for the FC8-64 high density port blade
1. mSFP connector
2. Duplex clip (black)
3. 6 mm cable
4. SFP connector
Note that the duplex clip on the mSFP end of the cable is black for easier recognition. For a listing of the qualied mSFP optical cables
for the FC8-64 port blade, refer to Qualied cables for the FC8-64 port blade on page 52.
If ISL Trunking is in use, group the cables by trunking group. The ports are color-coded to indicate which ports can be used in the same
ISL Trunking group: eight ports marked with solid black ovals alternate with eight ports marked with oval outlines.
High-density cabling for the FC8-64 port blade
Brocade DCX 8510-8 Backbone Hardware Installation Guide
54 53-1002180-15
