AllelementsrelatedtothemeasurementofyieldareselectedwithinCongureYieldTest.Teststhat
arecreatedcanbesavedtotheinternalmemoryoftheDV3TRheometerorontoaconnectedUSB
FlashDrive.TestscanbeloadedfrommemorybyselectingLoadTestfromtheHomeScreen
.
TIP:ManyaspectsofcongureYieldTestcanbelimitedwhenUserIDandLogInfunctionsare
implemented(seeSectionV.4.2).

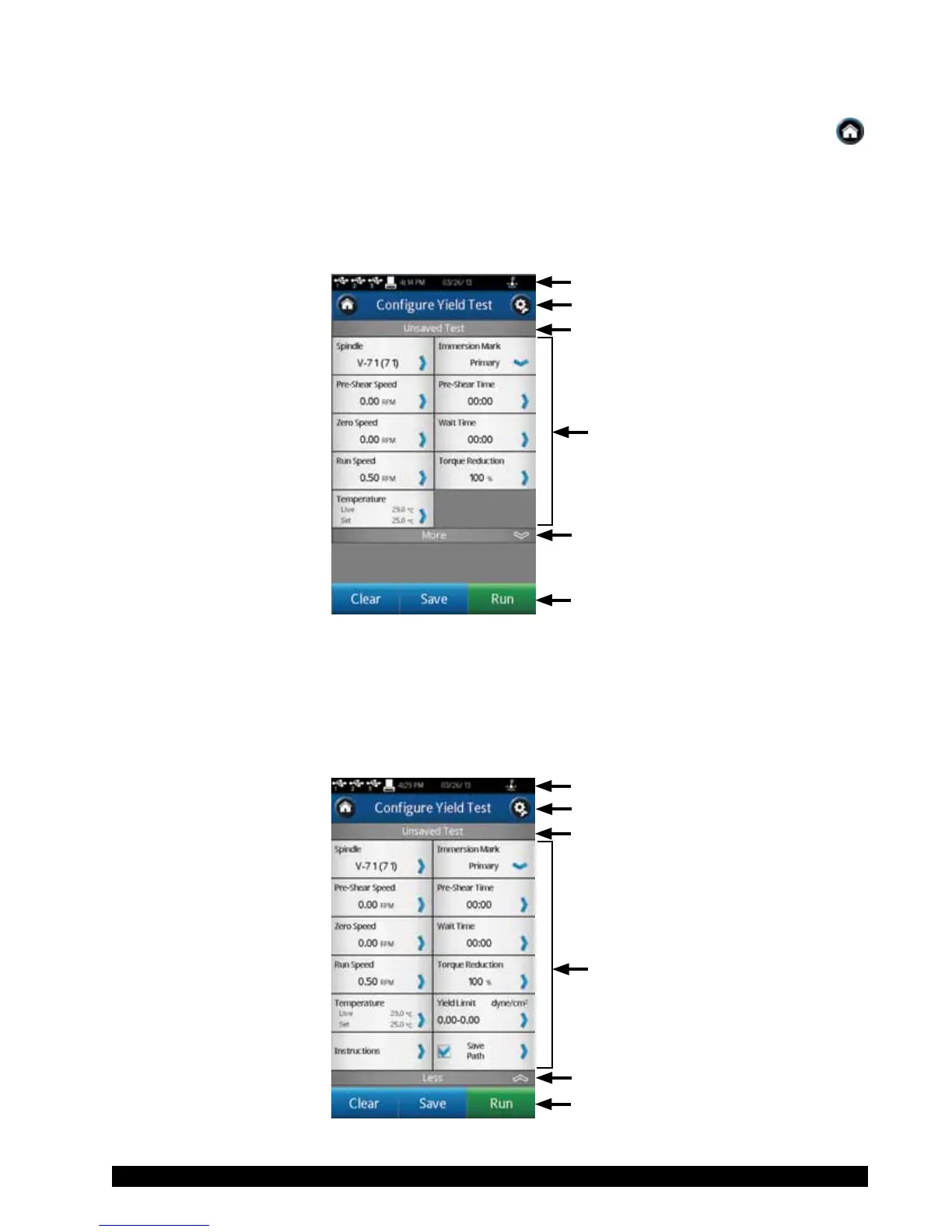

ThebasicCongureYieldTestviewisshowninFigureII-6.ThisviewincludestheStatusBar
(SectionII.3),TitleBar(whichincludestheHomeandSettingsicons),testname,testparameters,
theMore/Lessbar,andCommandKeys(seeSectionII.4).
More/Less Bar
Command Keys
Status Bar
Title Bar
Test Parameters
Test Name
Figure II-6
TheusercanseethenameofanytestthathasbeenloadedthoroughtheLoadTestfunction.In
FigureII-6,thelenameislistedasUnsavedTest,indicatingthatthecurrenttesthasnotbeensaved.
The More/Less bar is seen just below the test parameters.  In Figure II-6, the bar includes a
downarrow,whichindicatesthatmoreinformationisavailable.FigureII-7showstheadditional
informationthatcanbeaccessed.TheMore/Lessbarinthisviewnowhasanuparrowindicating
thattheadditionalinformationcanbehidden.
More/Less Bar
Command Keys
Status Bar
Title Bar
Data Fields
Test Name
Figure II-7
