Brookeld Engineering Labs., Inc. Page 28 Manual No. M13-167-A0415

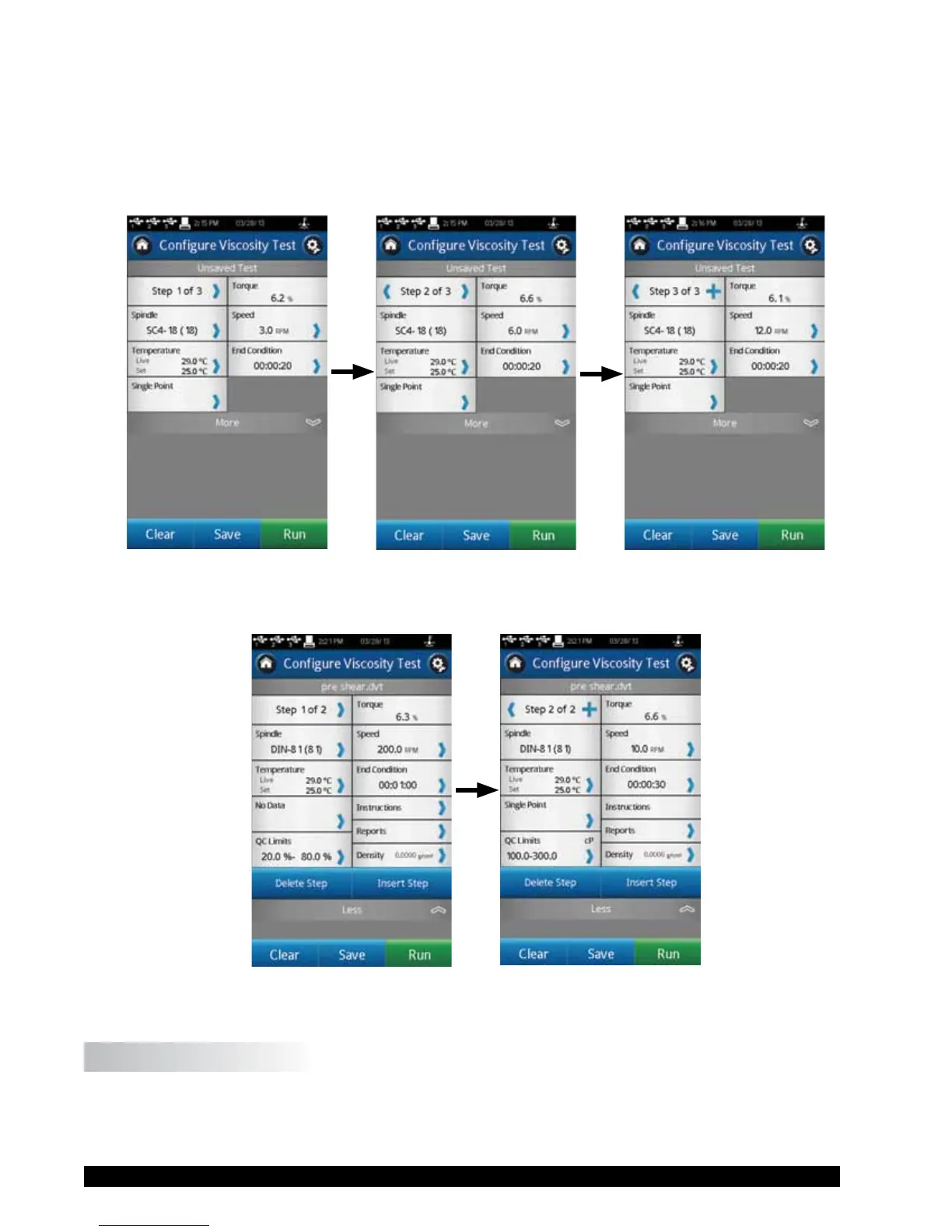

TwomultistepTestsareshownbelow.Thersttestshowsathreesteptestwhereeachstephasa
differentspeedwithasingledatapointcollection.Theresultswillincludethreeviscositypoints,
oneforeachspeed.Thesecondtestshowsatwosteptestwheretherststepisapreshearstep.
Thepreshearisconductedat200rpmforoneminuteandnodataiscollected.Thesecondstep
generatesasingledatapoint.
ThreeStepTest:
Figure III-2a: Step 1 Figure III-2b: Step 2
Figure III-2c: Step 3
TwoStepTest:
Figure III-3a: Step 1 Figure III-3b: Step 2
III.4 Selecting a Spindle/Speed
TheDV3Thasthecapabilityofmeasuringviscosityoveranextremelywiderange.Forexample,
theDV3TRVcanmeasureuidswithintherangeof100-40,000,000cP.Thisrangeisachieved
throughtheuseofseveralspindlesovermanyspeeds.SeeAppendixBfordetails.
