Brookeld Engineering Labs., Inc. Page 67 Manual No. M13-167-A0415

Spindle List:TheselectionofSpindleinCongureViscosityTestcanbedonebyusingeithera

numberpadorascrolllist.(Thischoiceisselectedthroughthenavigationbutton

intheSetSpindlescreen.)ThecontentsofthescrolllistaredenedintheSpindle

Listmenu.Eachspindlecanbeindividuallyselectedordeselectedthroughtheuse

ofacheckbox.Spindles,shownwithboththeirnameandtheirnumber,arelisted

numericallyaccordingtotheirspindleentrynumber.

Therestrictedspindlewillnotappearonthescrolllistofavailablespindleswhen

choosingSpindleinCongureViscosityTest.Iftheuserselectstoenterthespindle

by number, then the choice of a restricted spindle will present an Invalid Input

messageandpreventtheselectionofthespindle(seeFigureV-10).

List Button

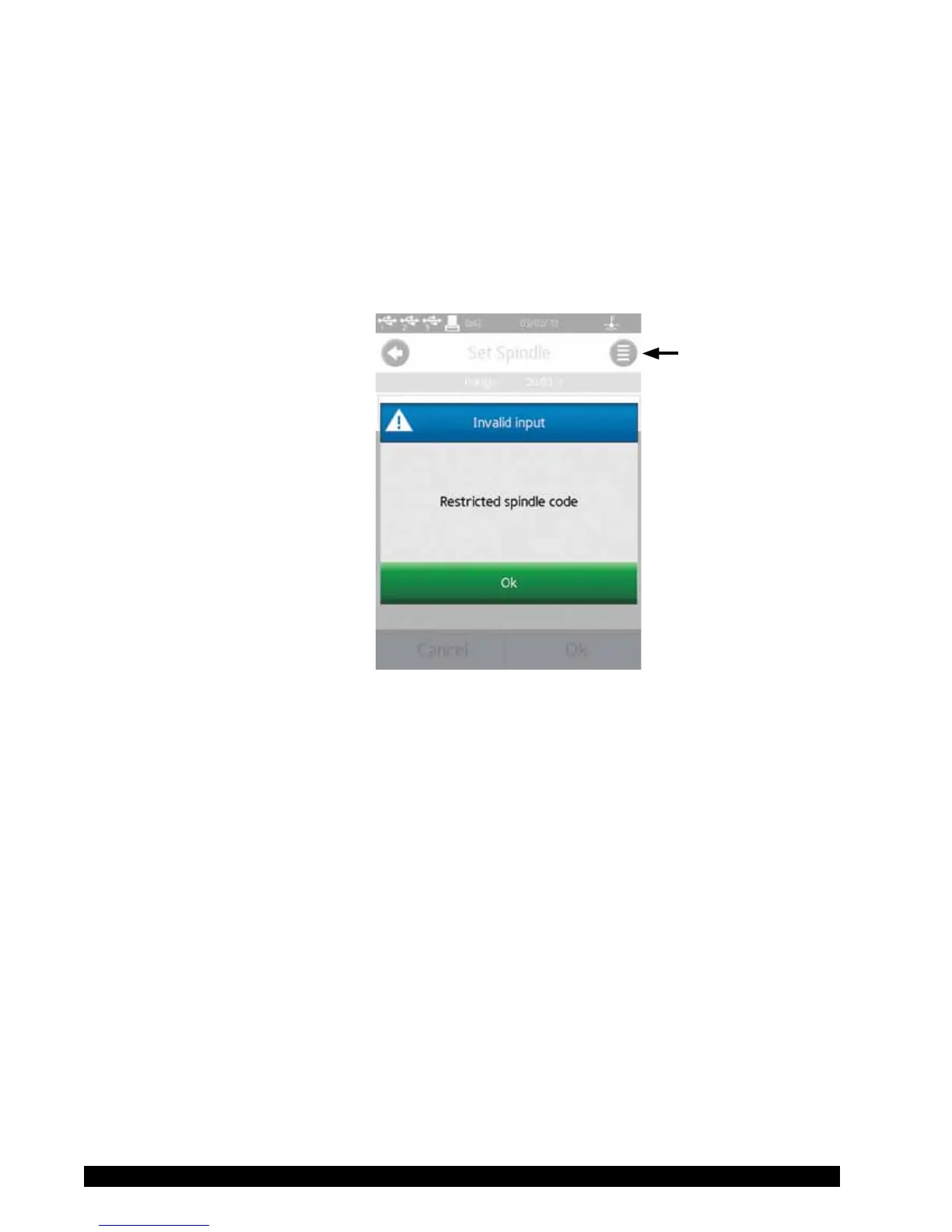

Figure V-10

TIP: Toensurethatthecorrectspindlecodeisalwaysentered,createatestthat

issavedtotheDV3Tmemory.

TIP:TheselectionofspindlecanberestrictedbyUserLogIn.Usethisrestriction

combinedwithasavedtestcongurationtoensurethatthecorrectspindle

isalwaysusedforcriticaltests.SeeSectionV.4.2fordetailsofUsersand

Access.

ASpecialSpindlecanbecreatedwhentheuserhasdevelopedanewspindlegeometry

orwhenusingastandardBrookeldspindleinanonstandardmeasurementcontainer.

TheSpecialSpindle,oncecreated,willbeavailabletousersthroughtheSpindle

selectioninCongureViscosityTest.

ASpecialSpindleiscreatedbyselectingtheSpecialSpindlecommandbuttoninthe

EditSpindleListmenu.ASpecialSpindlerequiresacode,aname,andanSMC

value.OptionalvaluesincludeSRCandYMC.
