Disassembly
2 - 11
Disassembly Disassembly
Main frame / Covers / Upper thread guide
3. Remove the screw (tapping screw, pan V M2x6) to remove the thread guide from the spool stand shaft.
4. Pull out the spool stand shaft from the spool stand base.
5. Remove the screw (tapping screw, pan V M2x6) to remove the spool stand shaft base from the spool
stand shaft.

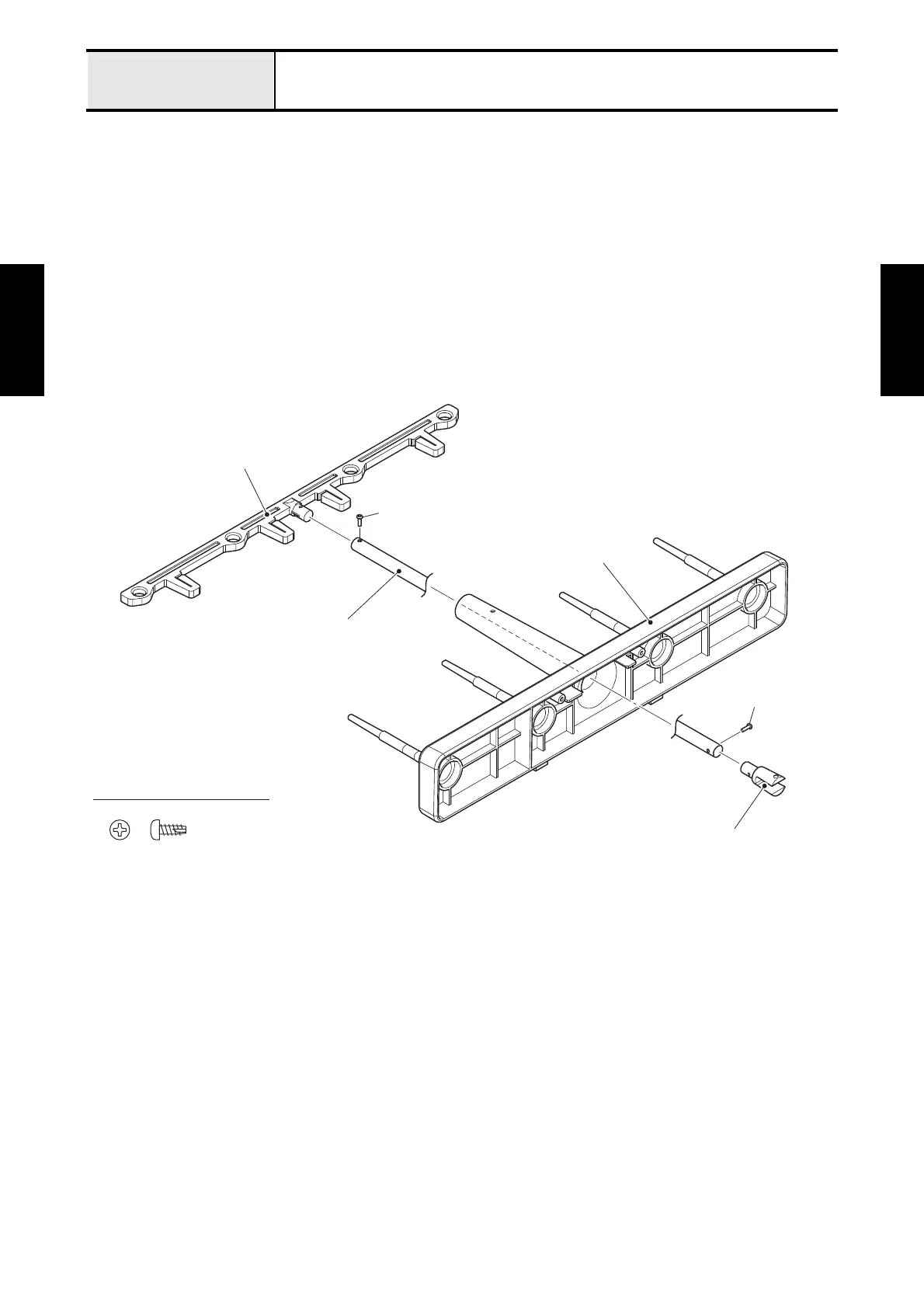

Fig. 2-9
Tapping screw, pan V M2X6
Thread guide
Tapping screw, pan V M2x6
Tapping screw,
pan V M2x6
Spool stand shaft
Spool stand base
Spool stand shaft base
