Brother 2104D - Feed Bar Assy

Disassembly
2 - 37
Disassembly Disassembly
Feed mechanism
2
Feed bar assy
1. Remove the feed spring from the main feed dog and the arm bed.
2. Remove the screw (screw, bind M4x6) to remove the feed bar stopper plate B.
*Assembling note
• Check that the feed bar assy is not a wobble, and it moves smoothly.

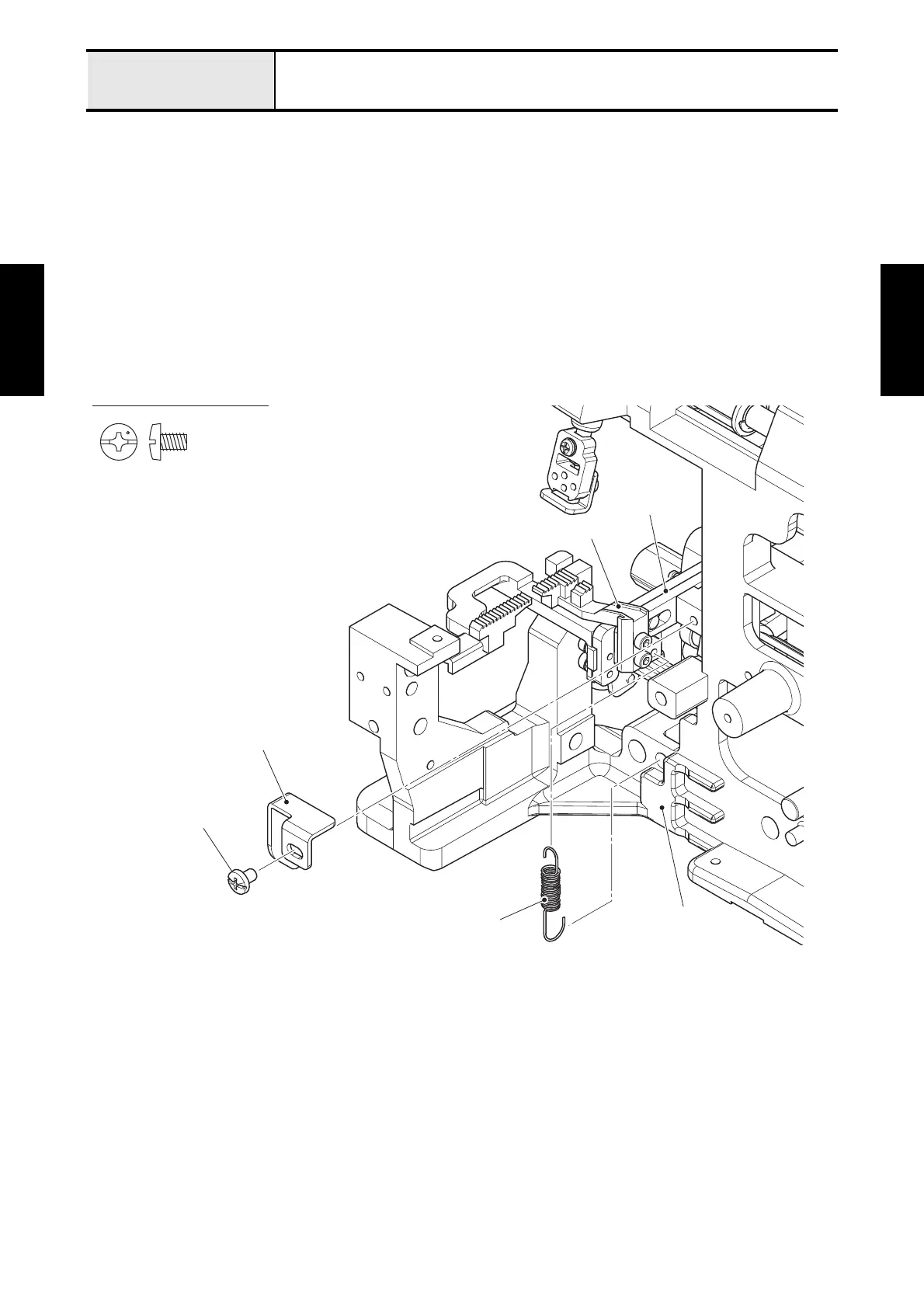

Fig. 2-2
Screw, Bind M4X6
Screw, bind M4x6
Feed bar stopper plate B
Arm bed
Main feed dog
Feed spring
Feed bar assy
