Brother 2104D - Page 49

Disassembly
2 - 38
Disassembly Disassembly
Feed mechanism
3. Remove the screw (set screw, socket (CP) M4x4) from the arm bed. Remove the retaining ring E5 from
the feed bar lever shaft. Pull out the feed bar lever shaft to remove the feed bar assy.
*Assembling note
• Fully tighten the screw after performing "Differential adjusting plate".

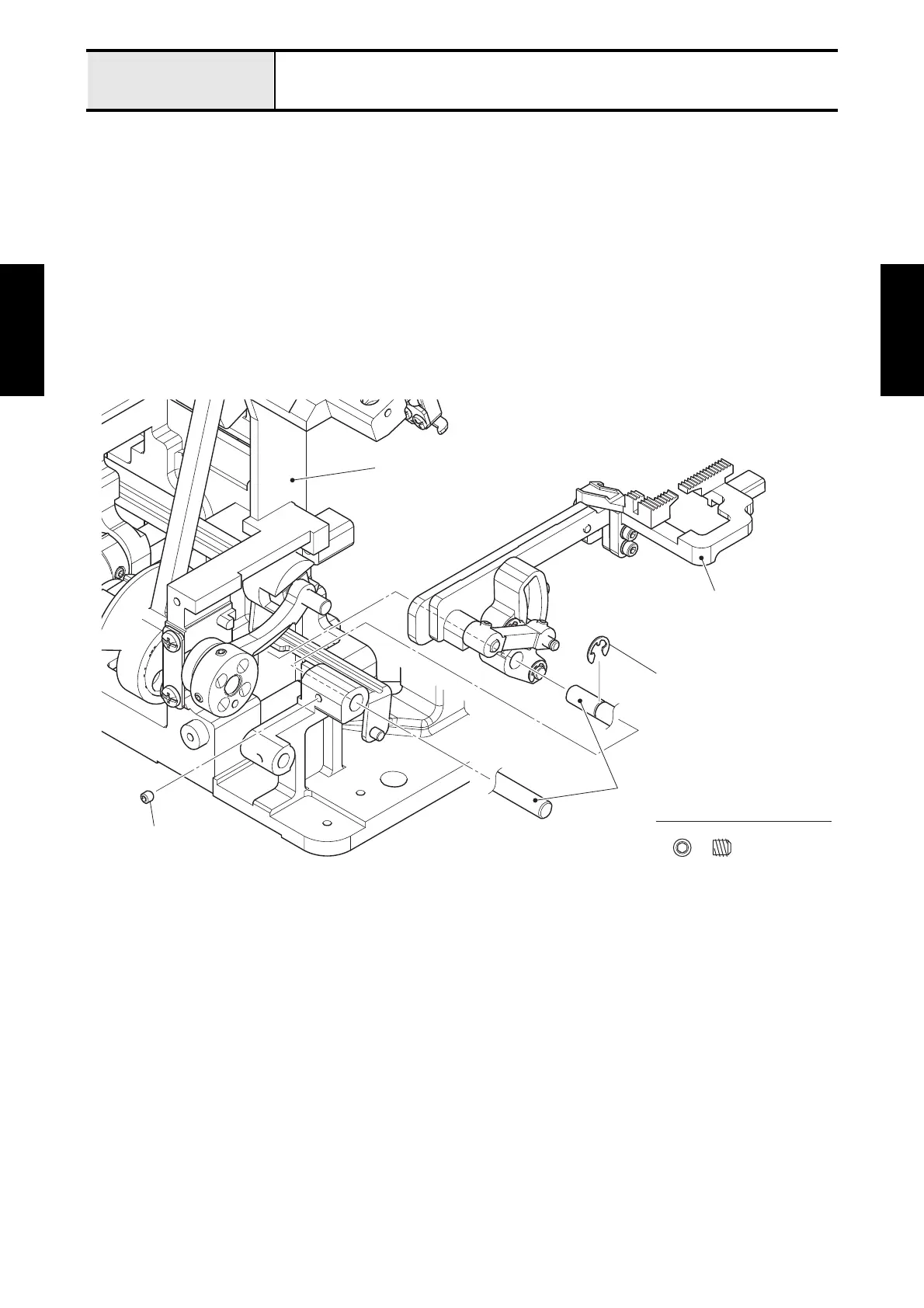

Fig. 2-3
Set Screw, Socket (CP) M4X4
Arm bed
Set screw, socket (CP)
M4x4
Feed bar assy
Retaining ring E5
Feed bar lever shaft
