Brother 2104D - Thread Tension L Assy

Disassembly
2 - 12
Disassembly Disassembly
Main frame / Covers / Upper thread guide
7
Thread tension L assy
1. Remove the two screws (screw, bind M4x6) to remove the thread tension L assy.
2. Remove the screw (screw, bind M3x4) to remove the washer plain S 4.2, the spacer 3x2.5 and the
thread tension lever from the thread tension base.
3. Remove the spring (XB2471) from the thread tension release and the thread tension base. Remove the
thread tension release from the thread tension base.
*Assembling note
• Fully tighten the screw after performing "Thread tension release adjustment".

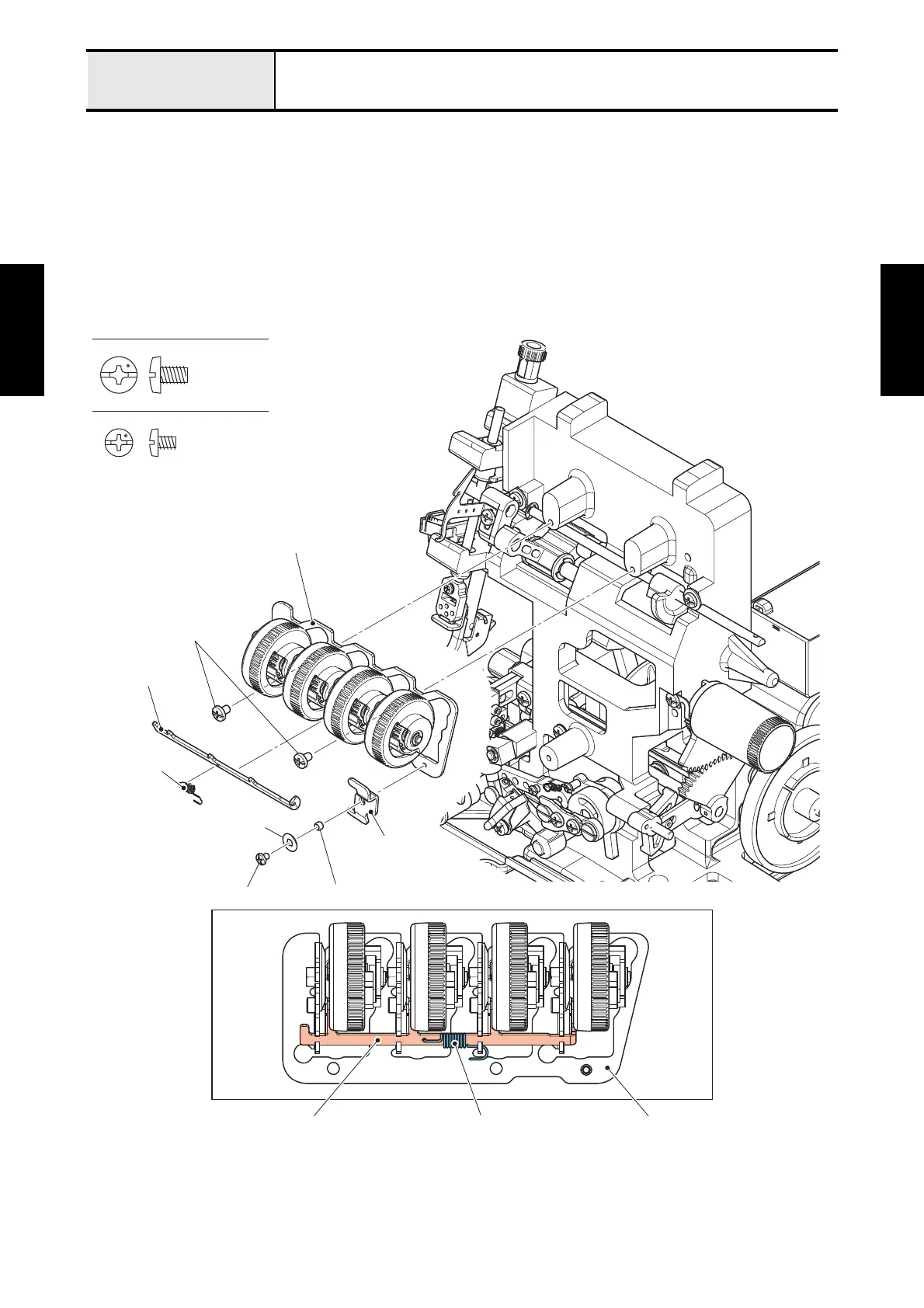

Fig. 2-10
Screw, bind M4x6
Screw, bind M3X4
Thread tension base
(Thread tension L assy)
Screw, bind M3x4
Screw, bind M4x6
Washer plain S 4.2
Spacer 3x2.5
Thread tension
lever
Spring
(XB2471)
Thread tension
release
Thread tension releas
Spring (XB2471)
Thread tension base
