Brother 2104D - Presser Foot Adjusting Screw; Presser Foot Holder Assy; Presser Bar

Disassembly
2 - 22
Disassembly Disassembly
Presser foot unit
1
Presser foot adjusting screw / Presser foot holder assy / Presser bar
1. Remove the presser foot adjusting screw to remove the presser bar spring from the presser bar.
2. Remove the screw (set screw) to remove the presser foot holder assy.
3. Remove the screw (set screw, socket (CP) M4x8). Pull out the presser bar to remove the presser bar
bracket.
*Assembling note
• Fully tighten the screw after performing "Presser bar height adjustment".

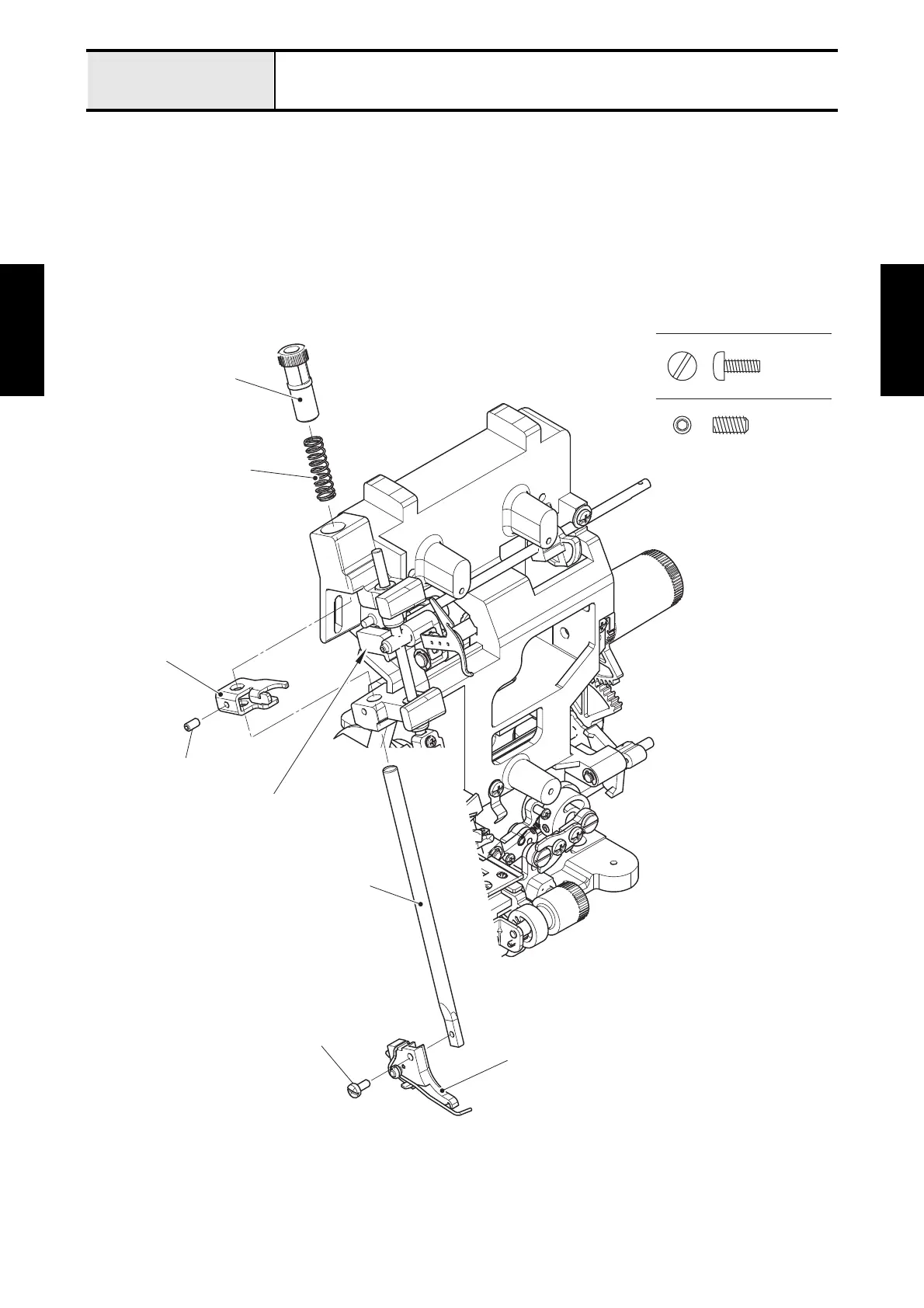

Fig. 2-1
Set Screw, Socket (CP) M4X8
Set Screw
Presser foot adjusting screw
Presser bar spring
Presser bar
Set screw
Set screw, socket (CP) M4x8
Presser bar bracket
Presser foot holder assy
Presser lifter shaft assy
