Brother 2104D - Lower Looper; Movable Needle Guard

Disassembly
2 - 29
Disassembly Disassembly
Upper blade / Lower blade / Looper
5
Lower looper / Movable needle guard
1. Remove the screw (screw, bind M3x6) to remove the UL threader and the lower looper from the UL
lever.
*Assembling note
• Fully tighten the screw after performing "Lower looper position adjustment".
2. Remove the two screws (screw, pan M3x4) to remove the movable needle guard from the UL lever.
*Assembling note
• Fully tighten the screw after performing "Movable needle guard position adjustment".

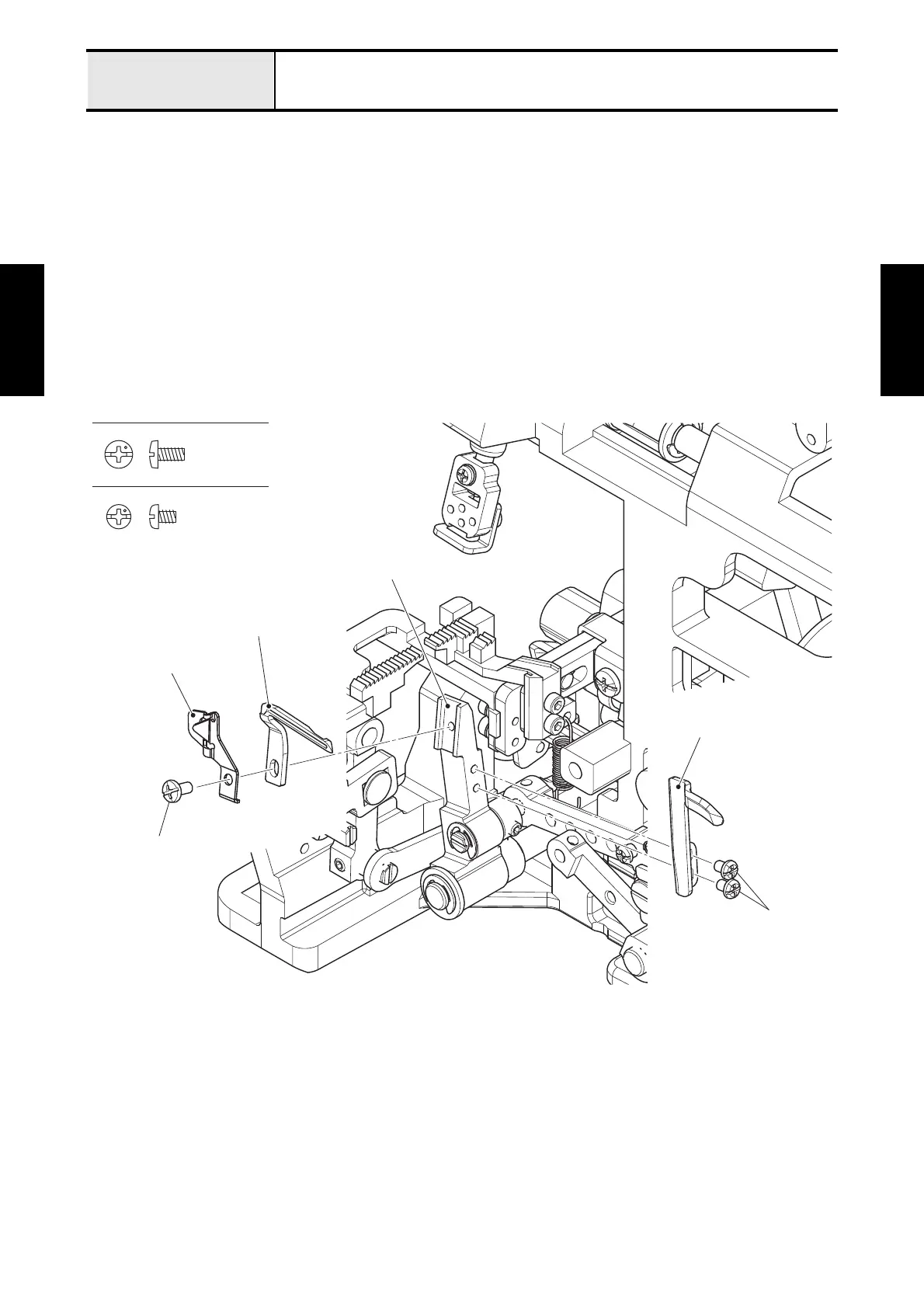

Fig. 2-5
Screw, Bind M3X6
Screw, Pan M3X4
Screw, bind M3x6
Screw, pan M3x4
UL threader
Lower looper
UL lever
Movable needle guard
