Brother 2104D - Feed Adjusting Lever; Differential Adjusting Lever; Differential Dial Stand Assy

Disassembly
2 - 47
Disassembly Disassembly
Driving mechanism
3
Feed adjusting lever / Differential adjusting lever / Differential dial stand assy
1. Remove the two screws (set screw, socket (CP) M4x4) to remove the feed adjusting lever from the feed
adjusting lever shaft.

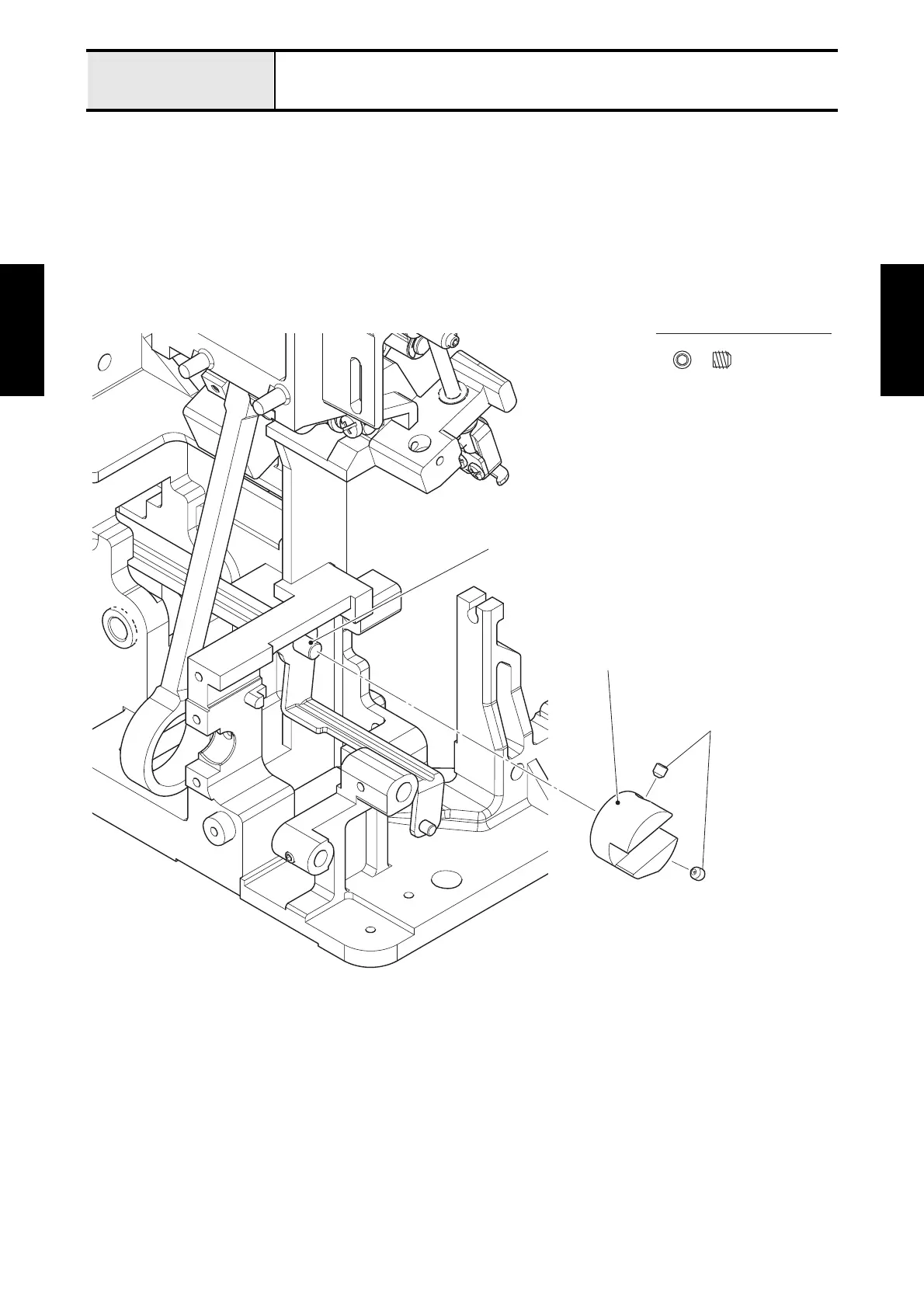

Fig. 2-4
Set Screw, Socket (CP) M4X4
Set screw, socket (CP) M4x4
Feed adjusting lever
Feed adjusting lever shaft
