Brother 2104D - Lamp; Electrical Parts; Main Motor Unit; LED Assy; Motor L Assy

Disassembly
2 - 20
Disassembly Disassembly
Lamp / Electrical parts / Main motor unit
3. Remove the two screws (bolt) to remove the two washers, the two washers and the motor L assy.
*Assembling note
• Fully tighten the screw after performing "Motor position adjustment".
4. Remove the retaining ring E5 to remove the motor pinion from the motor L assy.

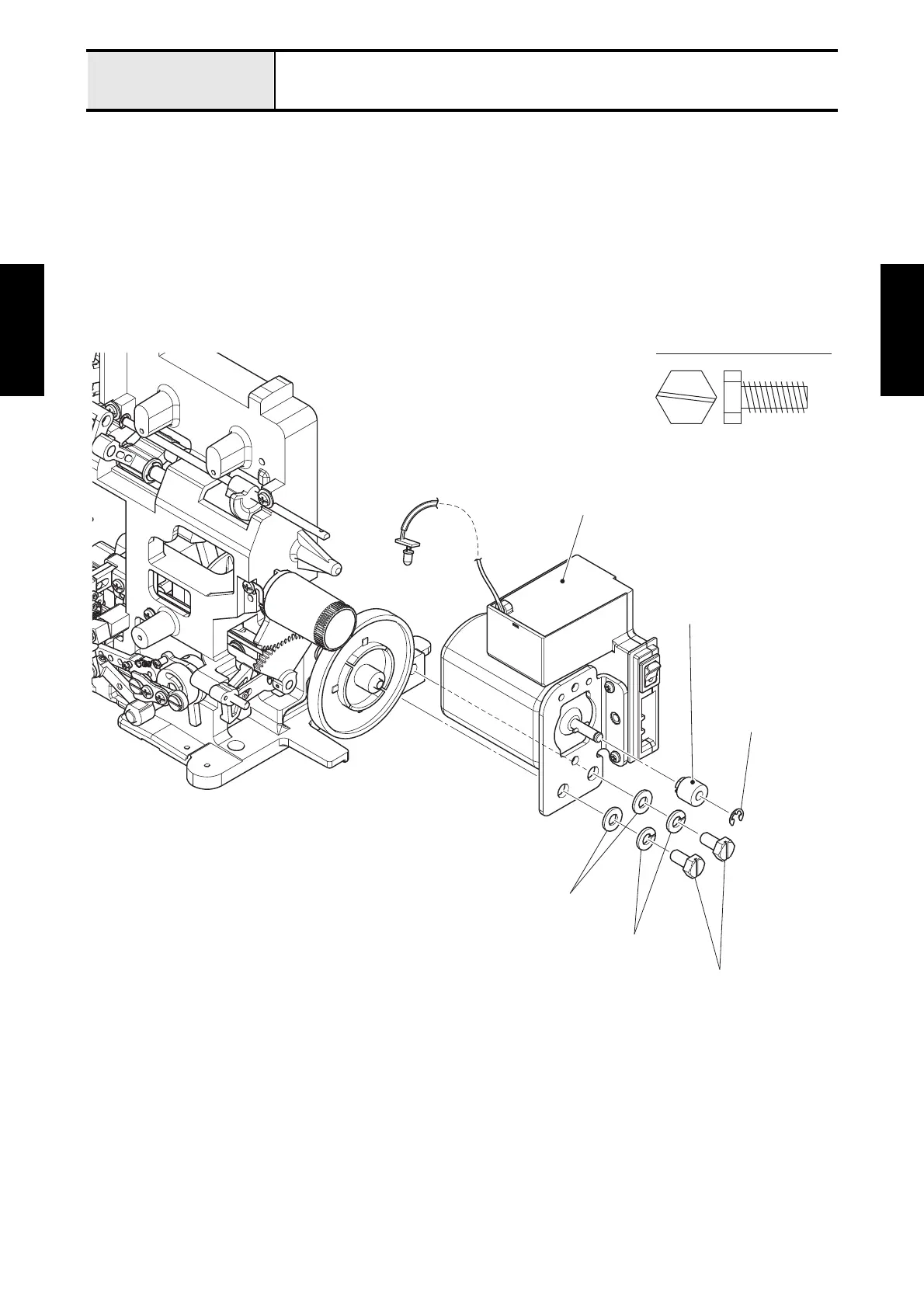

Fig. 2-2
Bolt
Motor L assy
Bolt
Washer
Washer
Retaining ring E5
Motor pinion
