Brother 2104D - Page 30

Disassembly
2 - 19
Disassembly Disassembly
Lamp / Electrical parts / Main motor unit
1
LED assy / Motor L assy

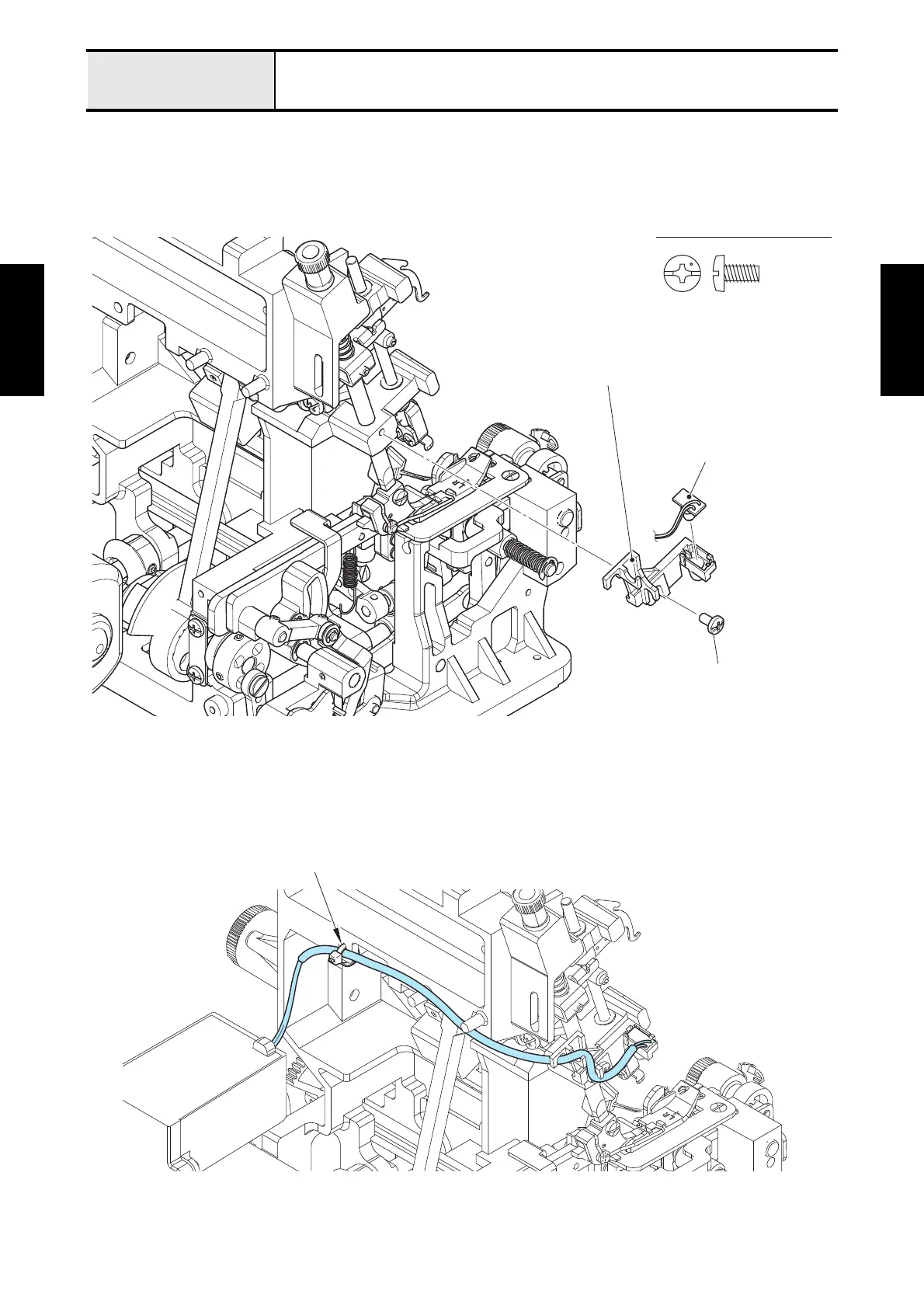

1. Cut the band 1M. Remove the screw (screw, bind M4x8) to remove the lamp holder.
2. Remove the lamp holder from the LED assy.
Fig. 2-1
*Assembling note
• Arrange the wiring as shown in the following figure.
Screw, Bind M4X8
Lamp holder
Screw, bind M4x8
LED assy
Band
