Brother 2104D - Needle Bar Balance Position Adjustment

3 - 4
Adjustment
Adjustment Adjustment

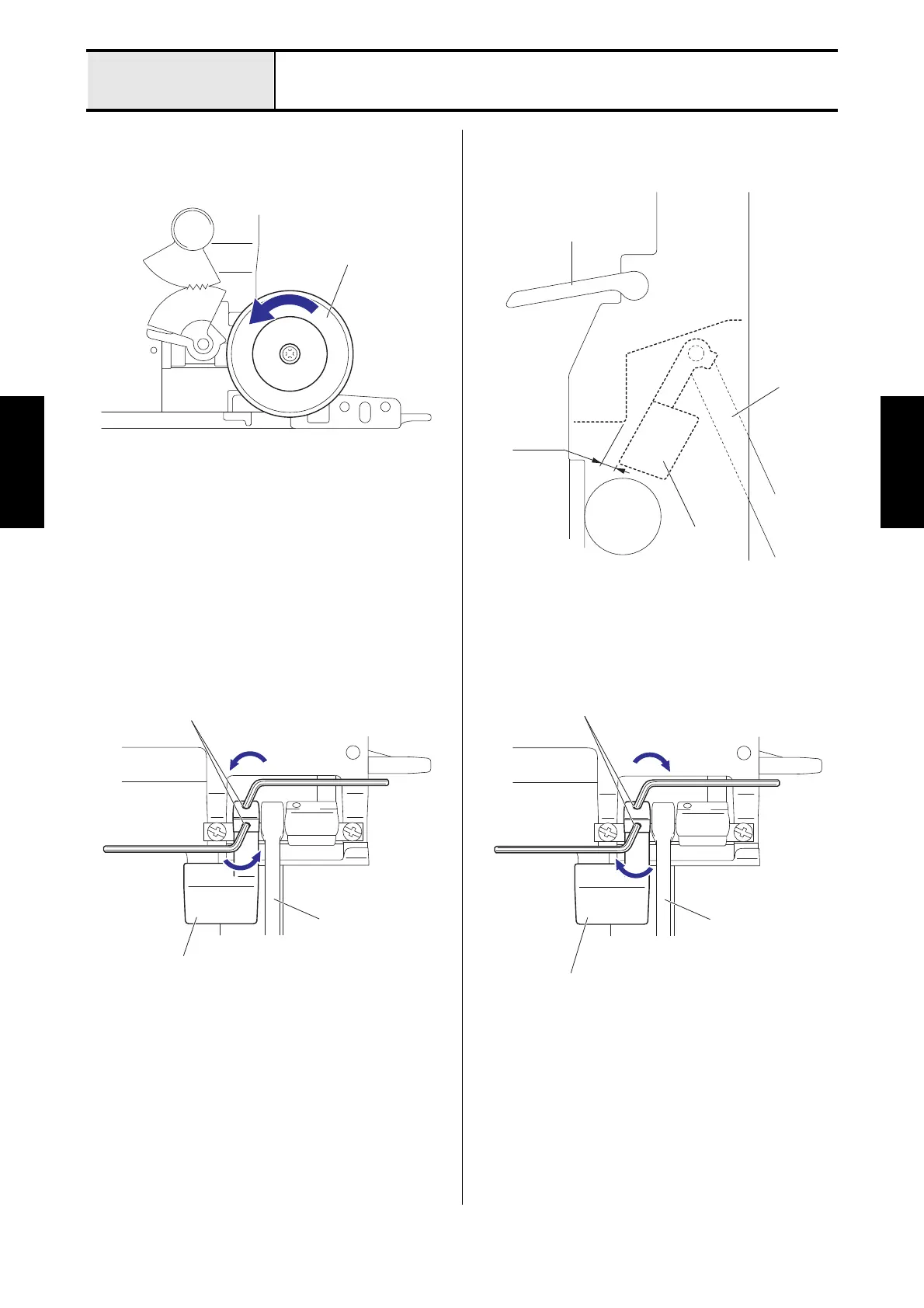

Needle bar balance position adjustment
1. Turn the pulley counterclockwise rotation, and
then the needle bar is the highest position.
2. Loosen the two screws (set screw, socket (CP)
M4x4) for the needle bar balance.
3. Adjust the gap of the needle bar balance and the
body to 3 mm.
4. Fasten the two screws (set screw, socket (CP)
M4x4) for the needle bar balance.
Pulley
Needle bar balance
Needle bar rod
Set screw, socket (CP) M4x4
3 mm
Presser foot lever
Needle
bar rod
Needle bar
balance
Needle bar balance
Needle bar rod
Set screw, socket (CP) M4x4
